T 5 - 25 mm

Manufacturer	POGGI

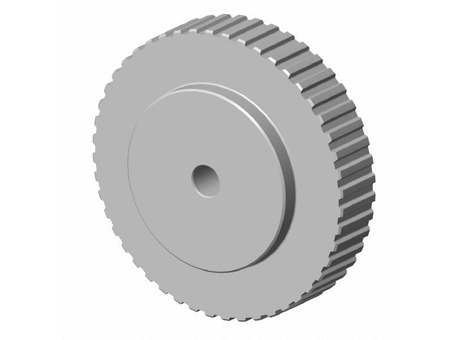

Description	36 T 5/10 - 6F
Part Number	35T051036

CAD models

Request for quotation

Product selection

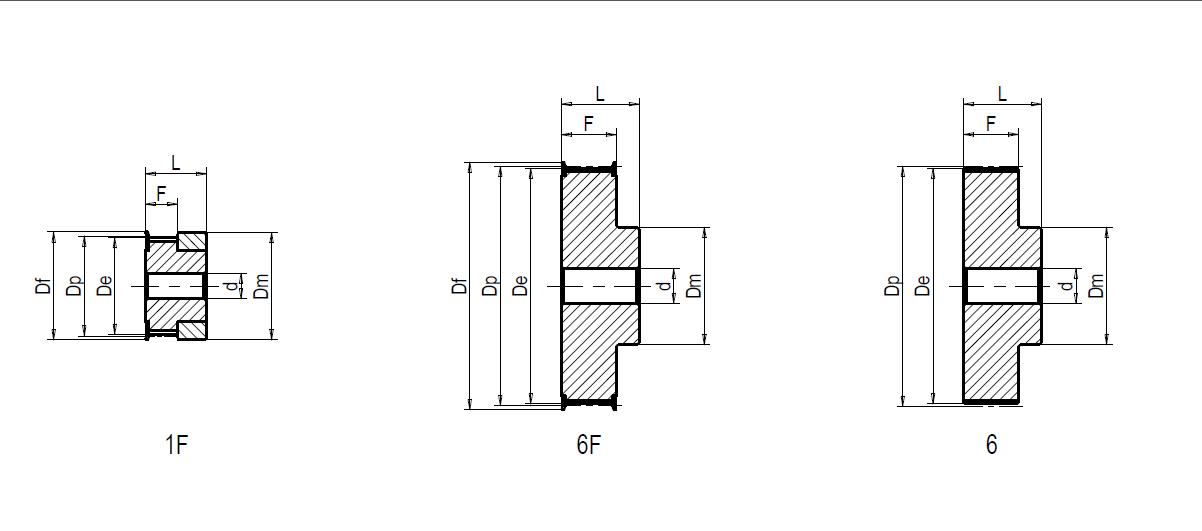

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	F	LU	d
1	1	35T051036	36 T 5/10 - 6F	Aluminium	10	15,92	15,05	19,5	8,0	30,0	36,0	-
2	2	35T051236	36 T 5/12 - 6F	Aluminium	12	19,10	18,25	23,0	11,0	30,0	36,0	-
3	3	35T051436	36 T 5/14 - 6F	Aluminium	14	22,28	21,45	25,0	14,0	30,0	36,0	-
4	4	35T051536	36 T 5/15 - 6F	Aluminium	15	23,87	23,05	28,0	16,0	30,0	36,0	6,0
5	5	35T051636	36 T 5/16 - 6F	Aluminium	16	25,46	24,60	32,0	18,0	30,0	36,0	6,0
6	6	35T051836	36 T 5/18 - 6F	Aluminium	18	28,65	27,80	32,0	20,0	30,0	36,0	6,0
7	7	35T051936	36 T 5/19 - 6F	Aluminium	19	30,24	29,40	36,0	22,0	30,0	36,0	6,0
8	8	35T052036	36 T 5/20 - 6F	Aluminium	20	31,83	31,00	36,0	23,0	30,0	36,0	6,0
9	9	35T052236	36 T 5/22 - 6F	Aluminium	22	35,01	34,25	38,0	24,0	30,0	36,0	6,0
10	10	35T052436	36 T 5/24 - 6F	Aluminium	24	38,20	37,40	42,0	26,0	30,0	36,0	8,0
11	11	35T052536	36 T 5/25 - 6F	Aluminium	25	39,79	39,00	44,0	26,0	30,0	36,0	8,0
12	12	35T052636	36 T 5/26 - 6F	Aluminium	26	41,38	40,60	44,0	26,0	30,0	36,0	8,0
13	13	35T052736	36 T 5/27 - 6F	Aluminium	27	42,97	42,20	48,0	30,0	30,0	36,0	8,0
14	14	35T052836	36 T 5/28 - 6F	Aluminium	28	44,56	43,75	48,0	32,0	30,0	36,0	8,0
15	15	35T053036	36 T 5/30 - 6F	Aluminium	30	47,75	46,95	51,0	34,0	30,0	36,0	8,0
16	16	35T053236	36 T 5/32 - 6F	Aluminium	32	50,93	50,10	54,0	38,0	30,0	36,0	8,0
17	17	35T053636	36 T 5/36 - 6F	Aluminium	36	57,30	56,45	63,0	38,0	30,0	36,0	8,0
18	18	35T054036	36 T 5/40 - 6F	Aluminium	40	63,66	62,85	66,0	40,0	30,0	36,0	8,0
19	19	35T054236	36 T 5/42 - 6F	Aluminium	42	66,84	66,00	71,0	40,0	30,0	36,0	8,0
20	20	35T054436	36 T 5/44 - 6	Aluminium	44	70,03	69,20	-	45,0	30,0	36,0	8,0
21	21	35T054836	36 T 5/48 - 6	Aluminium	48	76,39	75,55	-	50,0	30,0	36,0	8,0
22	22	35T056036	36 T 5/60 - 6	Aluminium	60	95,49	94,65	-	65,0	30,0	36,0	8,0
