T 10 - 50 mm

CAD models

Product selection

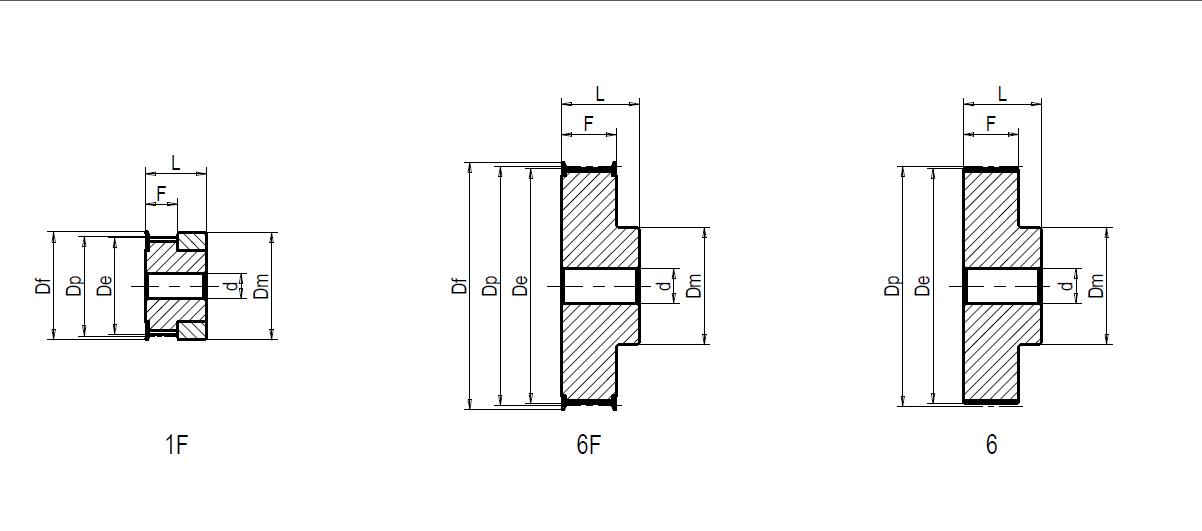

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	F	LU	d
1	1	35T101866	66 T 10/18 - 6F	Aluminium	18	57,30	55,45	60,0	40,0	56,0	66,0	10,0
2	2	35T101966	66 T 10/19 - 6F	Aluminium	19	60,48	58,60	66,0	44,0	56,0	66,0	10,0
3	3	35T102066	66 T 10/20 - 6F	Aluminium	20	63,66	61,80	66,0	46,0	56,0	66,0	12,0
4	4	35T102266	66 T 10/22 - 6F	Aluminium	22	70,03	68,15	75,0	52,0	56,0	66,0	12,0
5	5	35T102466	66 T 10/24 - 6F	Aluminium	24	76,39	74,55	83,0	58,0	56,0	66,0	12,0
6	6	35T102566	66 T 10/25 - 6F	Aluminium	25	79,58	77,70	83,0	60,0	56,0	66,0	12,0
7	7	35T102666	66 T 10/26 - 6F	Aluminium	26	82,76	80,90	87,0	60,0	56,0	66,0	12,0
8	8	35T102766	66 T 10/27 - 6F	Aluminium	27	85,94	84,10	91,0	60,0	56,0	66,0	12,0
9	9	35T102866	66 T 10/28 - 6F	Aluminium	28	89,13	87,25	93,0	60,0	56,0	66,0	12,0
10	10	35T103066	66 T 10/30 - 6F	Aluminium	30	95,49	93,65	97,0	60,0	56,0	66,0	12,0
11	11	35T103266	66 T 10/32 - 6F	Aluminium	32	101,86	100,00	106,0	65,0	56,0	66,0	12,0
12	12	35T103666	66 T 10/36 - 6F	Aluminium	36	114,59	112,75	119,0	70,0	56,0	66,0	16,0
13	13	35T104066	66 T 10/40 - 6F	Aluminium	40	127,32	125,45	131,0	80,0	56,0	66,0	16,0
14	14	35T104466	66 T 10/44 - 6	Aluminium	44	140,06	138,20	-	88,0	56,0	66,0	16,0
15	15	35T104866	66 T 10/48 - 6	Aluminium	48	152,79	150,95	-	95,0	56,0	66,0	16,0
16	16	35T106066	66 T 10/60 - 6	Aluminium	60	190,99	189,10	-	110,0	56,0	66,0	16,0
