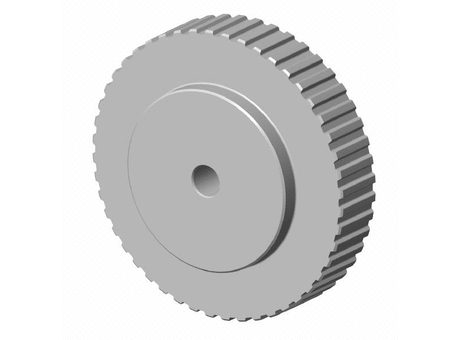

T 10 - 25 mm

CAD models

Product selection

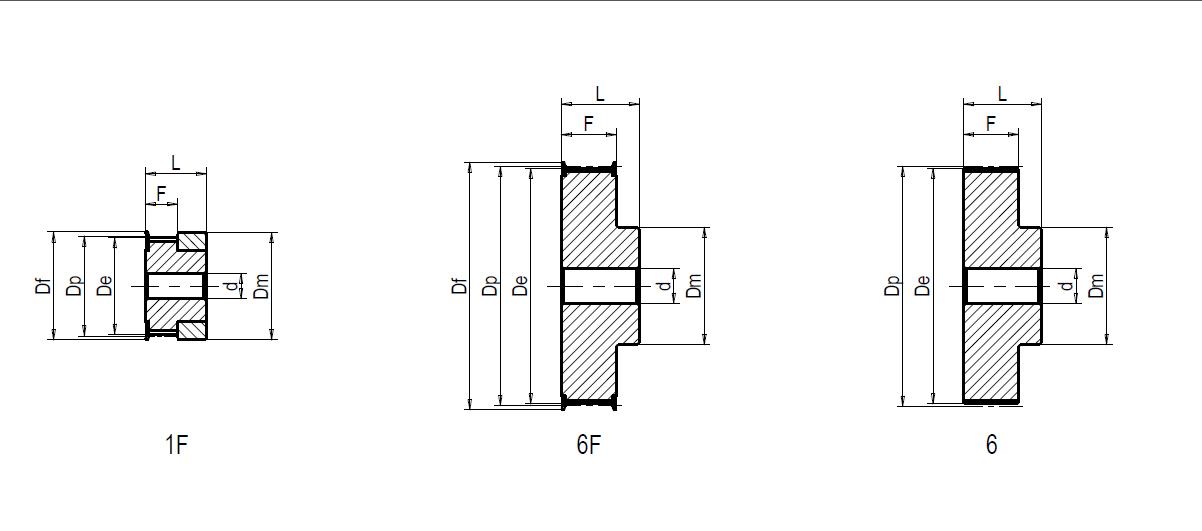

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	F	LU	d
1	1	35T101240	40 T 10/12 - 6F	Aluminium	12	38,20	36,35	42,0	28,0	30,0	40,0	6,0
2	2	35T101440	40 T 10/14 - 6F	Aluminium	14	44,56	42,70	48,0	32,0	30,0	40,0	8,0
3	3	35T101540	40 T 10/15 - 6F	Aluminium	15	47,75	45,90	51,0	32,0	30,0	40,0	8,0
4	4	35T101640	40 T 10/16 - 6F	Aluminium	16	50,93	49,05	54,0	35,0	30,0	40,0	8,0
5	5	35T101840	40 T 10/18 - 6F	Aluminium	18	57,30	55,45	60,0	40,0	30,0	40,0	8,0
6	6	35T101940	40 T 10/19 - 6F	Aluminium	19	60,48	58,60	66,0	44,0	30,0	40,0	8,0
7	7	35T102040	40 T 10/20 - 6F	Aluminium	20	63,66	61,80	66,0	46,0	30,0	40,0	8,0
8	8	35T102240	40 T 10/22 - 6F	Aluminium	22	70,03	68,15	75,0	52,0	30,0	40,0	8,0
9	9	35T102440	40 T 10/24 - 6F	Aluminium	24	76,39	74,55	83,0	58,0	30,0	40,0	8,0
10	10	35T102540	40 T 10/25 - 6F	Aluminium	25	79,58	77,70	83,0	60,0	30,0	40,0	8,0
11	11	35T102640	40 T 10/26 - 6F	Aluminium	26	82,76	80,90	87,0	60,0	30,0	40,0	8,0
12	12	35T102740	40 T 10/27 - 6F	Aluminium	27	85,94	84,10	91,0	60,0	30,0	40,0	8,0
13	13	35T102840	40 T 10/28 - 6F	Aluminium	28	89,13	87,25	93,0	60,0	30,0	40,0	8,0
14	14	35T103040	40 T 10/30 - 6F	Aluminium	30	95,49	93,65	97,0	60,0	30,0	40,0	8,0
15	15	35T103240	40 T 10/32 - 6F	Aluminium	32	101,86	100,00	106,0	65,0	30,0	40,0	10,0
16	16	35T103640	40 T 10/36 - 6F	Aluminium	36	114,59	112,75	119,0	70,0	30,0	40,0	10,0
17	17	35T104040	40 T 10/40 - 6F	Aluminium	40	127,32	125,45	131,0	80,0	30,0	40,0	10,0
18	18	35T104440	40 T 10/44 - 6	Aluminium	44	140,06	138,20	-	88,0	30,0	40,0	10,0
19	19	35T104840	40 T 10/48 - 6	Aluminium	48	152,79	150,95	-	95,0	30,0	40,0	16,0
20	20	35T106040	40 T 10/60 - 6	Aluminium	60	190,99	189,10	-	110,0	30,0	40,0	16,0
