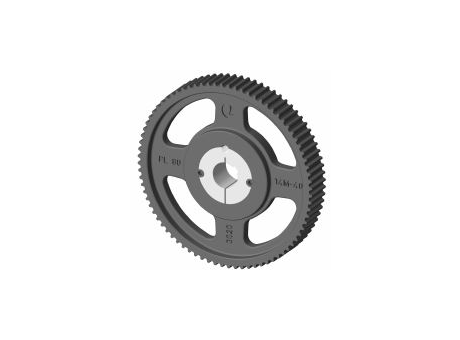

RPP 8

Manufacturer	POGGI
Description	PL 22 RPP8 20 - 5F
Part Number	53G022020P

CAD models

Request for quotation

Product selection

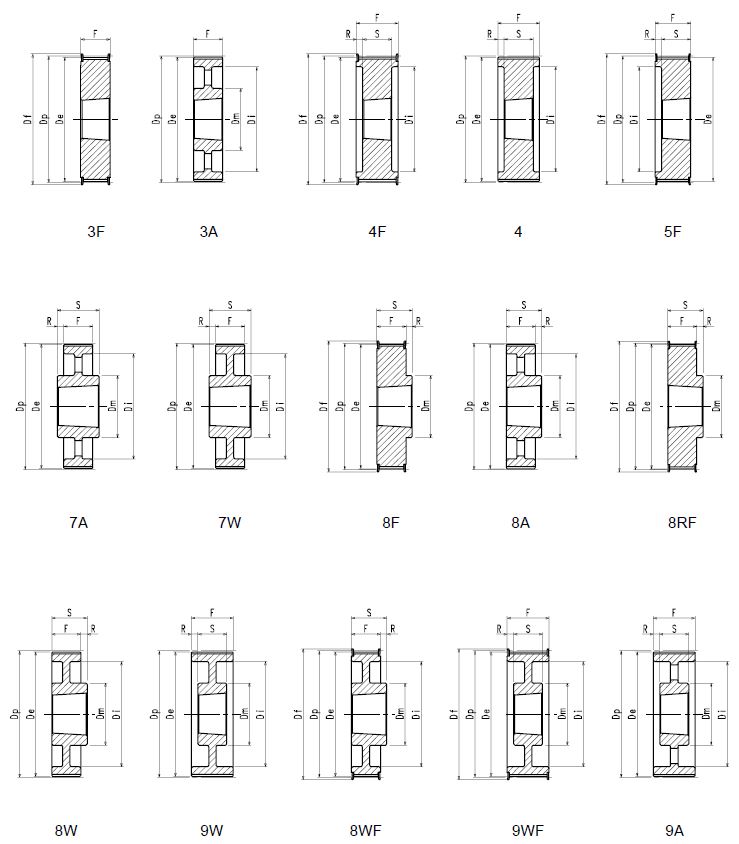

Index	Selector	Part Number	Description	Material	Bush	Max. Bore	Dp	De	Df	Dm	Di	F	S	R
1	1	53G022020P	PL 22 RPP8 20 - 5F	Steel	1008	25	56,02	54,65	60,0	-	41,0	28,0	22,0	6
2	2	53G024020P	PL 24 RPP8 20 - 5F	Steel	1108	28	61,12	59,75	66,0	-	42,0	28,0	22,0	6
3	3	53G026020P	PL 26 RPP8 20 - 5F	Steel	1108	28	66,21	64,84	71,0	-	46,0	28,0	22,0	6
4	4	53G028020P	PL 28 RPP8 20 - 5F	Steel	1108	28	71,30	70,08	75,0	-	49,0	28,0	22,0	6
5	5	53G030020P	PL 30 RPP8 20 - 5F	Steel	1108	28	76,39	75,13	83,0	-	58,0	28,0	22,0	6
6	6	53G032020P	PL 32 RPP8 20 - 5F	Steel	1610	42	81,49	80,16	87,0	-	63,0	28,0	25,0	3
7	7	53G034020P	PL 34 RPP8 20 - 5F	Steel	1610	42	86,58	85,22	91,0	-	65,0	28,0	25,0	3
8	8	53G036020P	PL 36 RPP8 20 - 5F	Steel	1610	42	91,67	90,30	98,5	-	68,0	28,0	25,0	3
9	9	53G038020P	PL 38 RPP8 20 - 5F	Cast iron	1610	42	96,77	95,39	103,0	-	72,0	28,0	25,0	3
10	10	53G040020P	PL 40 RPP8 20 - 5F	Cast iron	1610	42	101,86	100,49	106,0	-	76,0	28,0	25,0	3
11	11	53G044020P	PL 44 RPP8 20 - 8F	Cast iron	2012	50	112,05	110,67	119,0	93,0	-	28,0	32,0	4
12	12	53G048020P	PL 48 RPP8 20 - 8F	Cast iron	2012	50	122,23	120,86	127,0	96,0	-	28,0	32,0	4
13	13	53G056020P	PL 56 RPP8 20 - 8F	Cast iron	2012	50	142,60	141,23	148,0	110,0	-	28,0	32,0	4
14	14	53G064020P	PL 64 RPP8 20 - 8WF	Cast iron	2012	50	162,97	161,60	168,0	110,0	137,0	28,0	32,0	4
15	15	53G072020P	PL 72 RPP8 20 - 8WF	Cast iron	2012	50	183,35	181,97	192,0	110,0	158,0	28,0	32,0	4
16	16	53G080020P	PL 80 RPP8 20 - 8W	Cast iron	2012	50	203,72	202,35	-	110,0	180,0	28,0	32,0	4
17	17	53G090020P	PL 90 RPP8 20 - 8A	Cast iron	2012	50	229,18	227,81	-	110,0	204,0	28,0	32,0	4
18	18	53G022030P	PL 22 RPP8 30 - 5F	Steel	1008	25	56,02	54,65	60,0	-	41,2	38,0	22,0	16
19	19	53G024030P	PL 24 RPP8 30 - 5F	Steel	1108	28	61,12	59,75	66,0	-	42,4	38,0	22,0	16
20	20	53G026030P	PL 26 RPP8 30 - 5F	Steel	1108	28	66,21	64,84	71,0	-	46,0	38,0	22,0	16
21	21	53G028030P	PL 28 RPP8 30 - 5F	Steel	1210	32	71,30	70,08	75,0	-	49,0	38,0	25,0	13
22	22	53G030030P	PL 30 RPP8 30 - 3F	Steel	1615	42	76,39	75,13	83,0	-	-	38,0	38,0	-
23	23	53G032030P	PL 32 RPP8 30 - 3F	Steel	1615	42	81,49	80,16	87,0	-	-	38,0	38,0	-
24	24	53G034030P	PL 34 RPP8 30 - 3F	Steel	1615	42	86,58	85,22	91,0	-	-	38,0	38,0	-
25	25	53G036030P	PL 36 RPP8 30 - 3F	Steel	1615	42	91,67	90,30	98,5	-	-	38,0	38,0	-
26	26	53G038030P	PL 38 RPP8 30 - 3F	Cast iron	1615	42	96,77	95,39	103,0	-	-	38,0	38,0	-
27	27	53G040030P	PL 40 RPP8 30 - 3F	Cast iron	1615	42	101,86	100,49	106,0	-	-	38,0	38,0	-
28	28	53G044030P	PL 44 RPP8 30 - 4F	Cast iron	2012	50	112,05	110,67	119,0	-	91,0	38,0	32,0	3
29	29	53G048030P	PL 48 RPP8 30 - 4F	Cast iron	2012	50	122,23	120,86	127,0	-	95,0	38,0	32,0	3
30	30	53G056030P	PL 56 RPP8 30 - 4F	Cast iron	2012	50	142,60	141,23	148,0	-	117,0	38,0	32,0	3
31	31	53G064030P	PL 64 RPP8 30 - 8F	Cast iron	2517	60	162,97	161,60	168,0	125,0	-	38,0	45,0	7
32	32	53G072030P	PL 72 RPP8 30 - 8WF	Cast iron	2517	60	183,35	181,97	192,0	122,0	158,0	38,0	45,0	7
33	33	53G080030P	PL 80 RPP8 30 - 8W	Cast iron	2517	60	203,72	202,35	-	125,0	180,0	38,0	45,0	7
34	34	53G090030P	PL 90 RPP8 30 - 8A	Cast iron	2517	60	229,18	227,81	-	125,0	204,0	38,0	45,0	7
35	35	53G112030P	PL112 RPP8 30 - 8A	Cast iron	2517	60	285,21	283,83	-	125,0	260,0	38,0	45,0	7
36	36	53G144030P	PL144 RPP8 30 - 8A	Cast iron	2517	60	366,69	365,32	-	125,0	341,0	38,0	45,0	7
37	37	53G028050P	PL 28 RPP8 50 - 5F	Steel	1210	32	71,30	70,08	75,0	-	49,0	60,0	25,0	35
38	38	53G030050P	PL 30 RPP8 50 - 5F	Steel	1615	42	76,39	75,13	83,0	-	58,0	60,0	38,0	22
39	39	53G032050P	PL 32 RPP8 50 - 5F	Steel	1615	42	81,49	80,16	87,0	-	62,0	60,0	38,0	22
40	40	53G034050P	PL 34 RPP8 50 - 5F	Steel	1615	42	86,58	85,22	91,0	-	65,0	60,0	38,0	22
41	41	53G036050P	PL 36 RPP8 50 - 5F	Steel	1615	42	91,67	90,30	98,5	-	68,0	60,0	38,0	22
42	42	53G038050P	PL 38 RPP8 50 - 5F	Cast iron	1615	42	96,77	95,39	103,0	-	72,0	60,0	38,0	22
43	43	53G040050P	PL 40 RPP8 50 - 4F	Cast iron	2012	50	101,86	100,49	106,0	-	82,0	60,0	32,0	14
44	44	53G044050P	PL 44 RPP8 50 - 4F	Cast iron	2012	50	112,05	110,67	119,0	-	91,0	60,0	32,0	14
45	45	53G048050P	PL 48 RPP8 50 - 4F	Cast iron	2012	50	122,23	120,86	127,0	-	95,0	60,0	32,0	14
46	46	53G056050P	PL 56 RPP8 50 - 4F	Cast iron	2517	60	142,60	141,23	148,0	-	116,0	60,0	45,0	7,5
47	47	53G064050P	PL 64 RPP8 50 - 4F	Cast iron	2517	60	162,97	161,60	168,0	-	137,0	60,0	45,0	7,5
48	48	53G072050P	PL 72 RPP8 50 - 4F	Cast iron	2517	60	183,35	181,97	192,0	-	158,0	60,0	45,0	7,5
49	49	53G080050P	PL 80 RPP8 50 - 4	Cast iron	3020	75	203,72	202,35	-	-	180,0	60,0	51,0	4,5
50	50	53G090050P	PL 90 RPP8 50 - 9W	Cast iron	3020	75	229,18	227,81	-	170,0	204,0	60,0	51,0	4,5
51	51	53G112050P	PL112 RPP8 50 - 9W	Cast iron	3020	75	285,21	283,83	-	170,0	260,0	60,0	51,0	4,5
52	52	53G144050P	PL144 RPP8 50 - 9A	Cast iron	3020	75	366,69	365,32	-	170,0	341,0	60,0	51,0	4,5
53	53	53G168050P	PL168 RPP8 50 - 7A	Cast iron	3525	90	427,81	426,44	-	190,0	402,0	60,0	65,0	2,5
54	54	53G192050P	PL192 RPP8 50 - 7A	Cast iron	3525	90	488,92	487,55	-	190,0	460,0	60,0	65,0	2,5
55	55	53G034085P	PL 34 RPP8 85 - 4F	Steel	1615	42	86,58	85,22	91,0	-	68,0	95,0	38,0	28,5
56	56	53G036085P	PL 36 RPP8 85 - 4F	Cast iron	1615	42	91,67	90,30	98,5	-	68,0	95,0	38,0	28,5
57	57	53G038085P	PL 38 RPP8 85 - 4F	Cast iron	1615	42	96,77	95,39	103,0	-	72,0	95,0	38,0	28,5
58	58	53G040085P	PL 40 RPP8 85 - 4F	Cast iron	2012	50	101,86	100,49	106,0	-	82,0	95,0	32,0	31,5
59	59	53G044085P	PL 44 RPP8 85 - 4F	Cast iron	2012	50	112,05	110,67	119,0	-	91,0	95,0	32,0	31,5
60	60	53G048085P	PL 48 RPP8 85 - 4F	Cast iron	2517	60	122,23	120,86	127,0	-	100,0	95,0	45,0	25
61	61	53G056085P	PL 56 RPP8 85 - 4F	Cast iron	2517	60	142,60	141,23	148,0	-	117,0	95,0	45,0	25
62	62	53G064085P	PL 64 RPP8 85 - 4F	Cast iron	2517	60	162,97	161,60	168,0	-	137,0	95,0	45,0	25
63	63	53G072085P	PL 72 RPP8 85 - 4F	Cast iron	3020	75	183,35	181,97	192,0	-	158,0	95,0	51,0	22
64	64	53G080085P	PL 80 RPP8 85 - 4	Cast iron	3020	75	203,72	202,35	-	-	180,0	95,0	51,0	22
65	65	53G090085P	PL 90 RPP8 85 - 9W	Cast iron	3020	75	229,18	227,81	-	170,0	204,0	95,0	51,0	22
66	66	53G112085P	PL112 RPP8 85 - 9W	Cast iron	3020	75	285,21	283,83	-	170,0	260,0	95,0	51,0	22
67	67	53G144085P	PL144 RPP8 85 - 9A	Cast iron	3525	90	366,69	365,32	-	190,0	341,0	95,0	65,0	15
68	68	53G168085P	PL168 RPP8 85 - 9A	Cast iron	3525	90	427,81	426,44	-	190,0	402,0	95,0	65,0	15
69	69	53G192085P	PL192 RPP8 85 - 9A	Cast iron	3525	90	488,92	487,55	-	190,0	460,0	95,0	65,0	15
