RPP 8 - 30

Manufacturer	POGGI
Description	22 RPP8 30 - 6F
Part Number	51G022030

CAD models

Request for quotation

Product selection

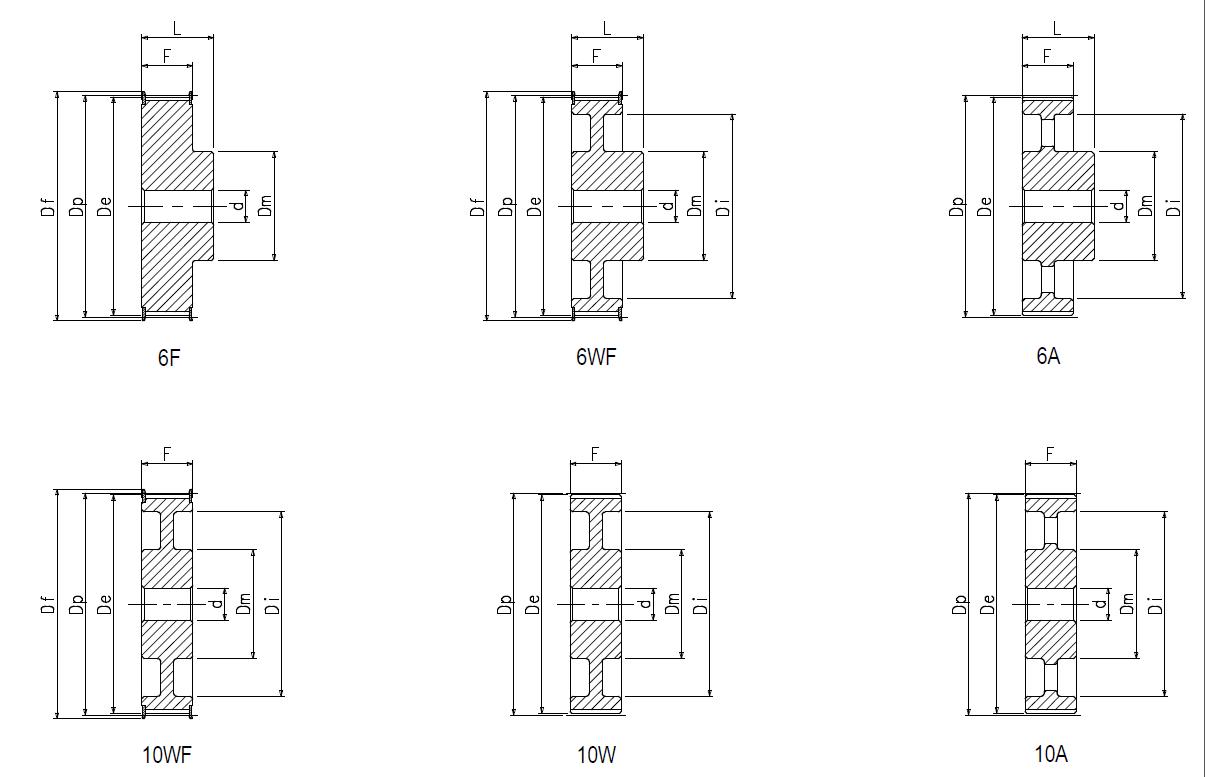

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	LU	d
1	1	51G022030	22 RPP8 30 - 6F	Steel	22	56,02	54,65	60,0	43,0	_	38,0	48,0	12,0
2	2	51G024030	24 RPP8 30 - 6F	Steel	24	61,12	59,75	66,0	45,0	_	38,0	48,0	12,0
3	3	51G026030	26 RPP8 30 - 6F	Steel	26	66,21	64,84	71,0	50,0	_	38,0	48,0	12,0
4	4	51G028030	28 RPP8 30 - 6F	Steel	28	71,30	70,08	75,0	50,0	_	38,0	48,0	15,0
5	5	51G030030	30 RPP8 30 - 6F	Steel	30	76,39	75,13	83,0	55,0	_	38,0	48,0	15,0
6	6	51G032030	32 RPP8 30 - 6F	Steel	32	81,49	80,16	87,0	60,0	_	38,0	48,0	15,0
7	7	51G034030	34 RPP8 30 - 6F	Steel	34	86,58	85,22	91,0	70,0	_	38,0	48,0	15,0
8	8	51G036030	36 RPP8 30 - 6F	Steel	36	91,67	90,30	98,5	70,0	_	38,0	48,0	15,0
9	9	51G038030	38 RPP8 30 - 6F	Steel	38	96,77	95,39	103,0	75,0	_	38,0	48,0	15,0
10	10	51G040030	40 RPP8 30 - 6F	Cast iron	40	101,86	100,49	106,0	75,0	_	38,0	48,0	15,0
11	11	51G044030	44 RPP8 30 - 6F	Cast iron	44	112,05	110,67	119,0	75,0	_	38,0	48,0	15,0
12	12	51G048030	48 RPP8 30 - 6F	Cast iron	48	122,23	120,86	127,0	75,0	_	38,0	48,0	15,0
13	13	51G056030	56 RPP8 30 - 6WF	Cast iron	56	142,60	141,23	148,0	90,0	117,0	38,0	48,0	15,0
14	14	51G064030	64 RPP8 30 - 6WF	Cast iron	64	162,97	161,60	168,0	90,0	137,0	38,0	48,0	15,0
15	15	51G072030	72 RPP8 30 - 6WF	Cast iron	72	183,35	181,97	192,0	95,0	158,0	38,0	48,0	15,0
16	16	51G080030	80 RPP8 30 - 6A	Cast iron	80	203,72	202,35	-	100,0	180,0	38,0	48,0	15,0
17	17	51G090030	90 RPP8 30 - 6A	Cast iron	90	229,18	227,81	-	100,0	204,0	38,0	48,0	15,0
18	18	51G112030	112 RPP8 30 - 6A	Cast iron	112	285,21	283,83	-	100,0	260,0	38,0	48,0	18,0
19	19	51G144030	144 RPP8 30 - 6A	Cast iron	144	366,69	365,32	-	100,0	341,0	38,0	48,0	20,0
20	20	51G168030	168 RPP8 30 - 6A	Cast iron	168	427,81	426,44	-	100,0	402,0	38,0	48,0	20,0
21	21	51G192030	192 RPP8 30 - 6A	Cast iron	192	488,92	487,55	-	100,0	460,0	38,0	48,0	20,0

Documentation

Catalog Data Sheet
