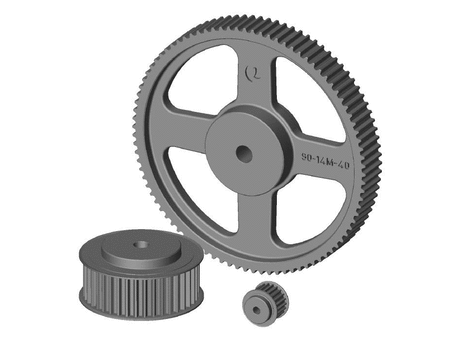

RPP 8 - 20

Manufacturer	POGGI
Description	22 RPP8 20 - 6F
Part Number	51G022020

CAD models

Request for quotation

Product selection

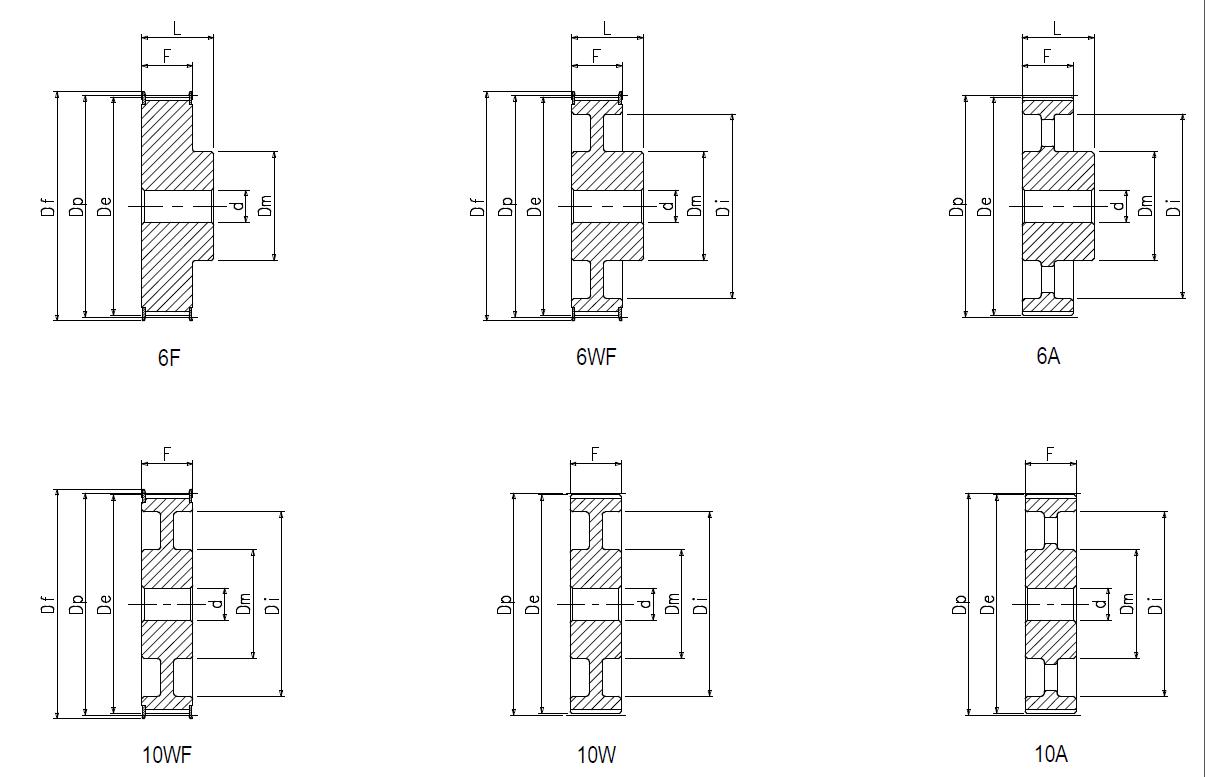

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	LU	d
1	1	51G022020	22 RPP8 20 - 6F	Steel	22	56,02	54,65	60,0	43,0	_	28,0	38,0	12,0
2	2	51G024020	24 RPP8 20 - 6F	Steel	24	61,12	59,75	66,0	45,0	_	28,0	38,0	12,0
3	3	51G026020	26 RPP8 20 - 6F	Steel	26	66,21	64,84	71,0	50,0	_	28,0	38,0	12,0
4	4	51G028020	28 RPP8 20 - 6F	Steel	28	71,30	70,08	75,0	50,0	_	28,0	38,0	15,0
5	5	51G030020	30 RPP8 20 - 6F	Steel	30	76,39	75,13	83,0	55,0	_	28,0	38,0	15,0
6	6	51G032020	32 RPP8 20 - 6F	Steel	32	81,49	80,16	87,0	60,0	_	28,0	38,0	15,0
7	7	51G034020	34 RPP8 20 - 6F	Steel	34	86,58	85,22	91,0	70,0	_	28,0	38,0	15,0
8	8	51G036020	36 RPP8 20 - 6F	Steel	36	91,67	90,30	98,5	70,0	_	28,0	38,0	15,0
9	9	51G038020	38 RPP8 20 - 6F	Steel	38	96,77	95,39	103,0	75,0	_	28,0	38,0	15,0
10	10	51G040020	40 RPP8 20 - 6F	Cast iron	40	101,86	100,49	106,0	75,0	_	28,0	38,0	15,0
11	11	51G044020	44 RPP8 20 - 6F	Cast iron	44	112,05	110,67	119,0	75,0	_	28,0	38,0	15,0
12	12	51G048020	48 RPP8 20 - 6F	Cast iron	48	122,23	120,86	127,0	75,0	_	28,0	38,0	15,0
13	13	51G056020	56 RPP8 20 - 6WF	Cast iron	56	142,60	141,23	148,0	80,0	117,0	28,0	38,0	15,0
14	14	51G064020	64 RPP8 20 - 6WF	Cast iron	64	162,97	161,60	168,0	80,0	137,0	28,0	38,0	15,0
15	15	51G072020	72 RPP8 20 - 6WF	Cast iron	72	183,35	181,97	192,0	80,0	158,0	28,0	38,0	15,0
16	16	51G080020	80 RPP8 20 - 6A	Cast iron	80	203,72	202,35	-	90,0	180,0	28,0	38,0	15,0
17	17	51G090020	90 RPP8 20 - 6A	Cast iron	90	229,18	227,81	-	90,0	204,0	28,0	38,0	15,0
18	18	51G112020	112 RPP8 20 - 6A	Cast iron	112	285,21	283,83	-	90,0	260,0	28,0	38,0	18,0
19	19	51G144020	144 RPP8 20 - 6A	Cast iron	144	366,69	365,32	-	90,0	341,0	28,0	38,0	20,0
20	20	51G168020	168 RPP8 20 - 6A	Cast iron	168	427,81	426,44	-	100,0	402,0	28,0	38,0	20,0
21	21	51G192020	192 RPP8 20 - 6A	Cast iron	192	488,92	487,55	-	100,0	460,0	28,0	38,0	20,0

Documentation

Catalog Data Sheet
