RPP 5

CAD models

Product selection

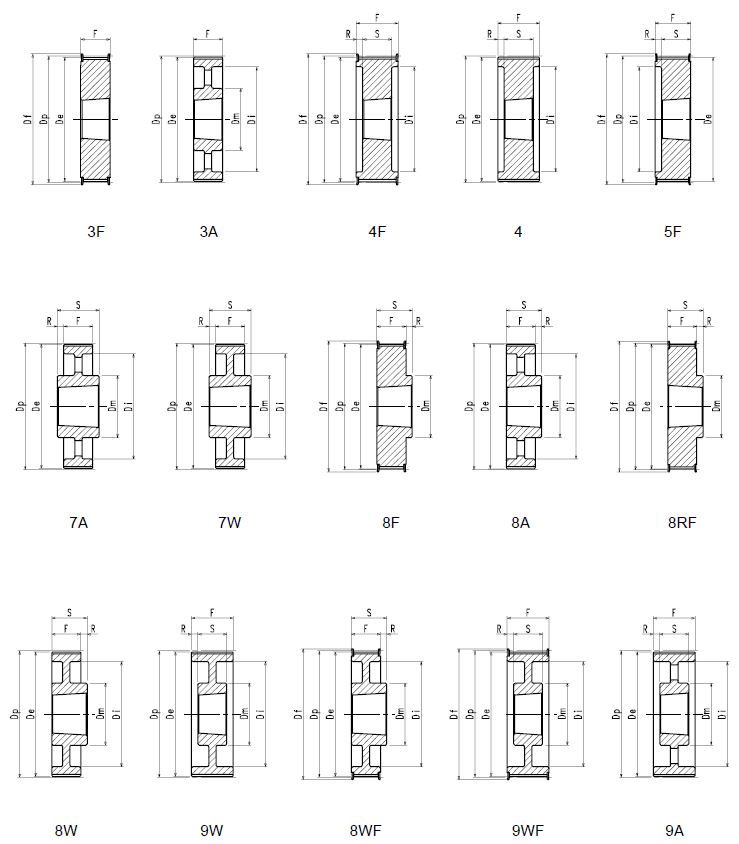

Index	Selector	Part Number	Description	Material	Bush	Max. Bore	Dp	De	Df	Dm	Di	F	S	R
1	1	53F034015P	PL 34 RPP5 15 - 8RF	Steel	1008	25	54,11	52,97	57,0	43,0	-	20,5	22,0	1,5
2	2	53F036015P	PL 36 RPP5 15 - 8RF	Steel	1108	28	57,30	56,16	60,0	44,0	-	20,5	22,0	1,5
3	3	53F038015P	PL 38 RPP5 15 - 8RF	Steel	1108	28	60,48	59,34	66,0	48,0	-	20,5	22,0	1,5
4	4	53F040015P	PL 40 RPP5 15 - 8F	Steel	1108	28	63,66	62,52	71,0	52,0	-	20,5	22,0	1,5
5	5	53F044015P	PL 44 RPP5 15 - 8F	Steel	1108	28	70,03	68,89	75,0	54,0	-	20,5	22,0	1,5
6	6	53F048015P	PL 48 RPP5 15 - 8F	Steel	1210	32	76,39	75,25	83,0	64,0	-	20,5	25,0	4,5
7	7	53F056015P	PL 56 RPP5 15 - 8F	Cast iron	1210	32	89,13	87,99	93,0	70,0	-	20,5	25,0	4,5
8	8	53F064015P	PL 64 RPP5 15 - 8F	Cast iron	1210	32	101,86	100,72	106,0	78,0	-	20,5	25,0	4,5
9	9	53F072015P	PL 72 RPP5 15 - 8F	Cast iron	1610	42	114,59	113,45	119,0	90,0	-	20,5	25,0	4,5
10	10	53F080015P	PL 80 RPP5 15 - 8F	Cast iron	1610	42	127,32	126,18	135,0	92,0	-	20,5	25,0	4,5
11	11	53F090015P	PL 90 RPP5 15 - 7W	Cast iron	1610	42	143,24	142,10	-	92,0	126,0	20,5	25,0	2,25
12	12	53F112015P	PL112 RPP5 15 - 7W	Cast iron	1610	42	178,25	177,11	-	92,0	162,0	20,5	25,0	2,25
13	13	53F136015P	PL136 RPP5 15 - 7W	Cast iron	2012	50	216,45	215,31	-	106,0	199,0	20,5	32,0	5,75
14	14	53F150015P	PL150 RPP5 15 - 7W	Cast iron	2012	50	238,73	237,59	-	106,0	222,0	20,5	32,0	5,75
