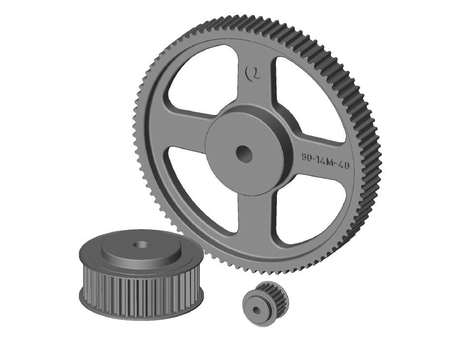

RPP 5 - 25

CAD models

Product selection

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	LU	d
1	1	51F012025	12 RPP5 25 - 6F	Steel	12	19,10	17,96	23,0	13,0	_	30,0	36,0	4,0
2	2	51F014025	14 RPP5 25 - 6F	Steel	14	22,28	21,14	25,0	14,0	_	30,0	36,0	6,0
3	3	51F015025	15 RPP5 25 - 6F	Steel	15	23,87	22,73	28,0	16,0	_	30,0	36,0	6,0
4	4	51F016025	16 RPP5 25 - 6F	Steel	16	25,46	24,32	28,0	16,5	_	30,0	36,0	6,0
5	5	51F018025	18 RPP5 25 - 6F	Steel	18	28,65	27,51	32,0	20,0	_	30,0	36,0	6,0
6	6	51F020025	20 RPP5 25 - 6F	Steel	20	31,83	30,69	36,0	23,0	_	30,0	36,0	6,0
7	7	51F021025	21 RPP5 25 - 6F	Steel	21	33,42	32,28	38,0	24,0	_	30,0	38,0	6,0
8	8	51F022025	22 RPP5 25 - 6F	Steel	22	35,01	33,87	38,0	25,5	_	30,0	38,0	6,0
9	9	51F024025	24 RPP5 25 - 6F	Steel	24	38,20	37,06	42,0	27,0	_	30,0	38,0	6,0
10	10	51F026025	26 RPP5 25 - 6F	Steel	26	41,38	40,24	44,0	30,0	_	30,0	38,0	6,0
11	11	51F028025	28 RPP5 25 - 6F	Steel	28	44,56	43,42	48,0	30,5	_	30,0	38,0	6,0
12	12	51F030025	30 RPP5 25 - 6F	Steel	30	47,75	46,60	51,0	35,0	_	30,0	38,0	6,0
13	13	51F032025	32 RPP5 25 - 6F	Steel	32	50,93	49,79	54,0	38,0	_	30,0	38,0	8,0
14	14	51F036025	36 RPP5 25 - 6F	Steel	36	57,30	56,16	60,0	38,0	_	30,0	38,0	8,0
15	15	51F040025	40 RPP5 25 - 6F	Steel	40	63,66	62,52	71,0	38,0	_	30,0	38,0	8,0
16	16	51F044025	44 RPP5 25 - 6	Aluminium	44	70,03	68,89	-	38,0	_	30,0	40,0	8,0
17	17	51F048025	48 RPP5 25 - 6W	Aluminium	48	76,39	75,25	-	38,0	61,0	30,0	40,0	8,0
18	18	51F060025	60 RPP5 25 - 6W	Aluminium	60	95,49	94,35	-	50,0	80,0	30,0	40,0	8,0
19	19	51F072025	72 RPP5 25 - 6W	Aluminium	72	114,59	113,45	-	50,0	100,0	30,0	40,0	8,0
