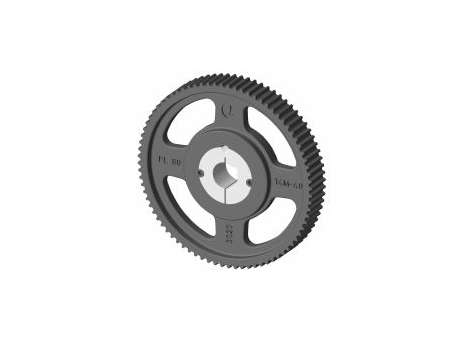

RPP 14

Manufacturer	POGGI
Description	PL 28 RPP14 40 - 4F
Part Number	53I028040P

CAD models

Request for quotation

Product selection

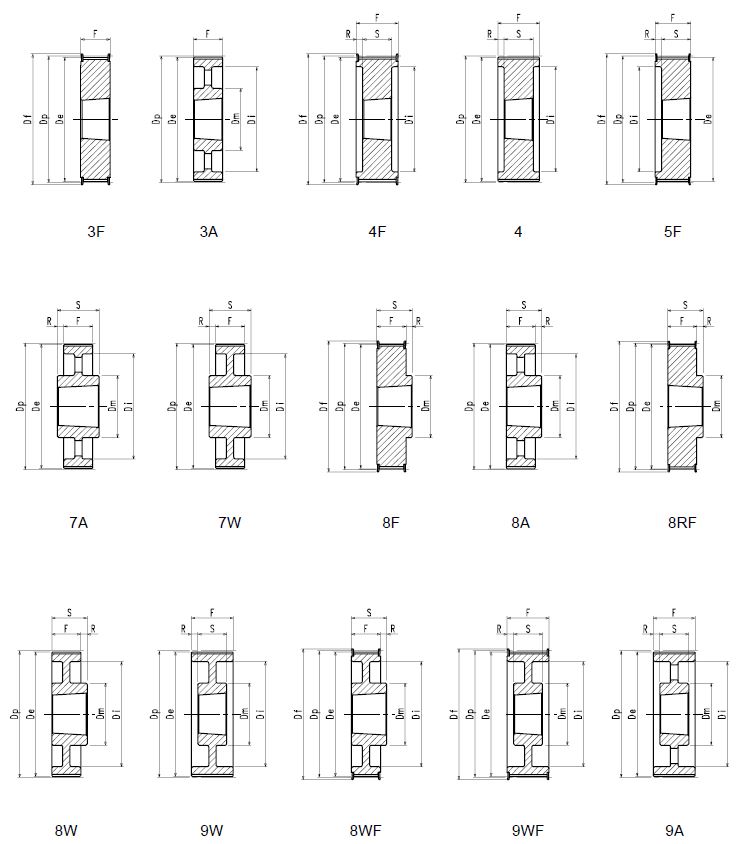

Index	Selector	Part Number	Description	Material	Bush	Max. Bore	Dp	De	Df	Dm	Di	F	S	R
1	1	53I028040P	PL 28 RPP14 40 - 4F	Cast iron	2012	50	124,78	122,12	127,0	-	90,0	54,0	32,0	11
2	2	53I029040P	PL 29 RPP14 40 - 4F	Cast iron	2012	50	129,23	126,57	138,0	-	100,0	54,0	32,0	11
3	3	53I030040P	PL 30 RPP14 40 - 4F	Cast iron	2012	50	133,69	130,99	138,0	-	100,0	54,0	32,0	11
4	4	53I032040P	PL 32 RPP14 40 - 4F	Cast iron	2012	50	142,60	139,88	154,0	-	104,0	54,0	32,0	11
5	5	53I034040P	PL 34 RPP14 40 - 4F	Cast iron	2517	60	151,52	148,79	160,0	-	110,0	54,0	45,0	4,5
6	6	53I036040P	PL 36 RPP14 40 - 4F	Cast iron	2517	60	160,43	157,68	168,0	-	120,0	54,0	45,0	4,5
7	7	53I038040P	PL 38 RPP14 40 - 4F	Cast iron	2517	60	169,34	166,60	183,0	-	130,0	54,0	45,0	4,5
8	8	53I040040P	PL 40 RPP14 40 - 4F	Cast iron	2517	60	178,25	175,49	188,0	-	138,0	54,0	45,0	4,5
9	9	53I044040P	PL 44 RPP14 40 - 4F	Cast iron	3020	75	196,08	193,28	211,0	-	155,0	54,0	51,0	1,5
10	10	53I048040P	PL 48 RPP14 40 - 4F	Cast iron	3020	75	213,90	211,11	226,0	-	170,0	54,0	51,0	1,5
11	11	53I056040P	PL 56 RPP14 40 - 9WF	Cast iron	3020	75	249,55	246,76	256,0	170,0	208,0	54,0	51,0	1,5
12	12	53I064040P	PL 64 RPP14 40 - 9WF	Cast iron	3020	75	285,21	282,41	296,0	170,0	239,0	54,0	51,0	1,5
13	13	53I072040P	PL 72 RPP14 40 - 9W	Cast iron	3020	75	320,86	318,06	-	170,0	280,0	54,0	51,0	1,5
14	14	53I080040P	PL 80 RPP14 40 - 9A	Cast iron	3020	75	356,51	353,71	-	170,0	315,0	54,0	51,0	1,5
15	15	53I090040P	PL 90 RPP14 40 - 9A	Cast iron	3020	75	401,07	398,28	-	170,0	358,0	54,0	51,0	1,5
16	16	53I112040P	PL112 RPP14 40 - 9A	Cast iron	3020	75	499,11	496,32	-	170,0	457,0	54,0	51,0	1,5
17	17	53I144040P	PL144 RPP14 40 - 9A	Cast iron	3020	75	641,71	638,92	-	170,0	600,0	54,0	51,0	1,5
18	18	53I168040P	PL168 RPP14 40 - 9A	Cast iron	3020	75	748,66	745,87	-	170,0	706,0	54,0	51,0	1,5
19	19	53I192040P	PL192 RPP14 40 - 9A	Cast iron	3020	75	855,62	852,82	-	170,0	813,0	54,0	51,0	1,5
20	20	53I216040P	PL216 RPP14 40 - 9A	Cast iron	3020	75	962,57	959,76	-	170,0	920,0	54,0	51,0	1,5
21	21	53I264040P	PL264 RPP14 40 - 7A	Cast iron	3535	90	1176,47	1173,68	-	190,0	1120,0	54,0	89,0	17,5
22	22	53I028055P	PL 28 RPP14 55 - 4F	Cast iron	2012	50	124,78	122,12	127,0	-	90,0	70,0	32,0	19
23	23	53I029055P	PL 29 RPP14 55 - 4F	Cast iron	2012	50	129,23	126,57	138,0	-	100,0	70,0	32,0	19
24	24	53I030055P	PL 30 RPP14 55 - 4F	Cast iron	2517	60	133,69	130,99	138,0	-	100,0	70,0	45,0	12,5
25	25	53I032055P	PL 32 RPP14 55 - 4F	Cast iron	2517	60	142,60	139,88	154,0	-	108,0	70,0	45,0	12,5
26	26	53I034055P	PL 34 RPP14 55 - 4F	Cast iron	2517	60	151,52	148,79	160,0	-	110,0	70,0	45,0	12,5
27	27	53I036055P	PL 36 RPP14 55 - 4F	Cast iron	2517	60	160,43	157,68	168,0	-	120,0	70,0	45,0	12,5
28	28	53I038055P	PL 38 RPP14 55 - 4F	Cast iron	2517	60	169,34	166,60	183,0	-	130,0	70,0	45,0	12,5
29	29	53I040055P	PL 40 RPP14 55 - 4F	Cast iron	2517	60	178,25	175,49	188,0	-	138,0	70,0	45,0	12,5
30	30	53I044055P	PL 44 RPP14 55 - 4F	Cast iron	3020	75	196,08	193,28	211,0	-	155,0	70,0	51,0	9,5
31	31	53I048055P	PL 48 RPP14 55 - 4F	Cast iron	3020	75	213,90	211,11	226,0	-	170,0	70,0	51,0	9,5
32	32	53I056055P	PL 56 RPP14 55 - 9WF	Cast iron	3020	75	249,55	246,76	256,0	170,0	208,0	70,0	51,0	9,5
33	33	53I064055P	PL 64 RPP14 55 - 9WF	Cast iron	3020	75	285,21	282,41	296,0	170,0	239,0	70,0	51,0	9,5
34	34	53I072055P	PL 72 RPP14 55 - 9W	Cast iron	3020	75	320,86	318,06	-	170,0	280,0	70,0	51,0	9,5
35	35	53I080055P	PL 80 RPP14 55 - 9A	Cast iron	3020	75	356,51	353,71	-	170,0	315,0	70,0	51,0	9,5
36	36	53I090055P	PL 90 RPP14 55 - 9A	Cast iron	3020	75	401,07	398,28	-	170,0	358,0	70,0	51,0	9,5
37	37	53I112055P	PL112 RPP14 55 - 9A	Cast iron	3020	75	499,11	496,32	-	170,0	457,0	70,0	51,0	9,5
38	38	53I144055P	PL144 RPP14 55 - 9A	Cast iron	3020	75	641,71	638,92	-	170,0	600,0	70,0	51,0	9,5
39	39	53I168055P	PL168 RPP14 55 - 9A	Cast iron	3020	75	748,66	745,87	-	170,0	706,0	70,0	51,0	9,5
40	40	53I192055P	PL192 RPP14 55 - 9A	Cast iron	3020	75	855,62	852,82	-	170,0	813,0	70,0	51,0	9,5
41	41	53I216055P	PL216 RPP14 55 - 7A	Cast iron	3535	90	962,57	959,76	-	190,0	920,0	70,0	89,0	9,5
42	42	53I264055P	PL264 RPP14 55 - 7A	Cast iron	3535	90	1176,47	1173,68	-	230,0	1120,0	70,0	89,0	9,5
43	43	53I028085P	PL 28 RPP14 85 - 4F	Cast iron	2517	60	124,78	122,12	127,0	-	99,0	102,0	45,0	28,5
44	44	53I029085P	PL 29 RPP14 85 - 4F	Cast iron	2517	60	129,23	126,57	138,0	-	100,0	102,0	45,0	28,5
45	45	53I030085P	PL 30 RPP14 85 - 4F	Cast iron	2517	60	133,69	130,99	138,0	-	100,0	102,0	45,0	28,5
46	46	53I032085P	PL 32 RPP14 85 - 4F	Cast iron	2517	60	142,60	139,88	154,0	-	108,0	102,0	45,0	28,5
47	47	53I034085P	PL 34 RPP14 85 - 4F	Cast iron	2517	60	151,52	148,79	160,0	-	110,0	102,0	45,0	28,5
48	48	53I036085P	PL 36 RPP14 85 - 4F	Cast iron	3020	75	160,43	157,68	168,0	-	125,0	102,0	51,0	25,5
49	49	53I038085P	PL 38 RPP14 85 - 4F	Cast iron	3020	75	169,34	166,60	183,0	-	130,0	102,0	51,0	25,5
50	50	53I040085P	PL 40 RPP14 85 - 4F	Cast iron	3020	75	178,25	175,49	188,0	-	138,0	102,0	51,0	25,5
51	51	53I044085P	PL 44 RPP14 85 - 4F	Cast iron	3030	75	196,08	193,28	211,0	-	155,0	102,0	76,0	13
52	52	53I048085P	PL 48 RPP14 85 - 4F	Cast iron	3030	75	213,90	211,11	226,0	-	170,0	102,0	76,0	13
53	53	53I056085P	PL 56 RPP14 85 - 4F	Cast iron	3525	90	249,55	246,76	256,0	-	210,0	102,0	65,0	18,5
54	54	53I064085P	PL 64 RPP14 85 - 9WF	Cast iron	3525	90	285,21	282,41	296,0	190,0	239,0	102,0	65,0	18,5
55	55	53I072085P	PL 72 RPP14 85 - 9W	Cast iron	3525	90	320,86	318,06	-	190,0	280,0	102,0	65,0	18,5
56	56	53I080085P	PL 80 RPP14 85 - 9A	Cast iron	3525	90	356,51	353,71	-	190,0	315,0	102,0	65,0	18,5
57	57	53I090085P	PL 90 RPP14 85 - 9A	Cast iron	3525	90	401,07	398,28	-	190,0	358,0	102,0	65,0	18,5
58	58	53I112085P	PL112 RPP14 85 - 9A	Cast iron	3525	90	499,11	496,32	-	190,0	457,0	102,0	65,0	18,5
59	59	53I144085P	PL144 RPP14 85 - 9A	Cast iron	3525	90	641,71	638,92	-	190,0	600,0	102,0	65,0	18,5
60	60	53I168085P	PL168 RPP14 85 - 9A	Cast iron	3525	90	748,66	745,87	-	190,0	706,0	102,0	65,0	18,5
61	61	53I192085P	PL192 RPP14 85 - 3A	Cast iron	4040	100	855,62	852,82	-	230,0	813,0	102,0	102,0	-
62	62	53I216085P	PL216 RPP14 85 - 3A	Cast iron	4040	100	962,57	959,76	-	230,0	920,0	102,0	102,0	-
63	63	53I264085P	PL264 RPP14 85 - 3A	Cast iron	4040	100	1176,47	1173,68	-	230,0	1120,0	102,0	102,0	-
64	64	53I028115P	PL 28 RPP14 115 - 4F	Cast iron	2517	60	124,78	122,12	127,0	-	99,0	133,0	45,0	44
65	65	53I029115P	PL 29 RPP14 115 - 4F	Cast iron	2517	60	129,23	126,57	138,0	-	100,0	133,0	45,0	44
66	66	53I030115P	PL 30 RPP14 115 - 4F	Cast iron	2517	60	133,69	130,99	138,0	-	100,0	133,0	45,0	44
67	67	53I032115P	PL 32 RPP14 115 - 4F	Cast iron	2517	60	142,60	139,88	154,0	-	108,0	133,0	45,0	44
68	68	53I034115P	PL 34 RPP14 115 - 4F	Cast iron	2517	60	151,52	148,79	160,0	-	115,0	133,0	45,0	44
69	69	53I036115P	PL 36 RPP14 115 - 4F	Cast iron	3020	75	160,43	157,68	168,0	-	125,0	133,0	51,0	41
70	70	53I038115P	PL 38 RPP14 115 - 4F	Cast iron	3020	75	169,34	166,60	183,0	-	130,0	133,0	51,0	41
71	71	53I040115P	PL 40 RPP14 115 - 4F	Cast iron	3020	75	178,25	175,49	188,0	-	140,0	133,0	51,0	41
72	72	53I044115P	PL 44 RPP14 115 - 4F	Cast iron	3030	75	196,08	193,28	211,0	-	155,0	133,0	76,0	28,5
73	73	53I048115P	PL 48 RPP14 115 - 4F	Cast iron	3030	75	213,90	211,11	226,0	-	170,0	133,0	76,0	28,5
74	74	53I056115P	PL 56 RPP14 115 - 4F	Cast iron	3535	90	249,55	246,76	256,0	-	210,0	133,0	89,0	22
75	75	53I064115P	PL 64 RPP14 115 - 9WF	Cast iron	3535	90	285,21	282,41	296,0	190,0	239,0	133,0	89,0	22
76	76	53I072115P	PL 72 RPP14 115 - 9W	Cast iron	3535	90	320,86	318,06	-	190,0	280,0	133,0	89,0	22
77	77	53I080115P	PL 80 RPP14 115 - 9A	Cast iron	3535	90	356,51	353,71	-	190,0	315,0	133,0	89,0	22
78	78	53I090115P	PL 90 RPP14 115 - 9A	Cast iron	3535	90	401,07	398,28	-	190,0	358,0	133,0	89,0	22
79	79	53I112115P	PL112 RPP14 115 - 9A	Cast iron	3535	90	499,11	496,32	-	190,0	456,0	133,0	89,0	22
80	80	53I144115P	PL144 RPP14 115 - 9A	Cast iron	4040	100	641,71	638,92	-	230,0	600,0	133,0	102,0	15,5
81	81	53I168115P	PL168 RPP14 115 - 9A	Cast iron	4040	100	748,66	745,87	-	230,0	706,0	133,0	102,0	15,5
82	82	53I192115P	PL192 RPP14 115 - 9A	Cast iron	4040	100	855,62	852,82	-	230,0	813,0	133,0	102,0	15,5
83	83	53I216115P	PL216 RPP14 115 - 9A	Cast iron	4040	100	962,57	959,76	-	230,0	920,0	133,0	102,0	15,5
84	84	53I264115P	PL264 RPP14 115 - 9A	Cast iron	4040	100	1176,47	1173,68	-	230,0	1120,0	133,0	102,0	15,5
85	85	53I038170P	PL 38 RPP14 170 - 4F	Cast iron	3030	75	169,34	166,60	183,0	-	130,0	187,0	76,0	55,5
86	86	53I040170P	PL 40 RPP14 170 - 4F	Cast iron	3030	75	178,25	175,49	188,0	-	140,0	187,0	76,0	55,5
87	87	53I044170P	PL 44 RPP14 170 - 4F	Cast iron	3535	90	196,08	193,28	211,0	-	161,0	187,0	89,0	49
88	88	53I048170P	PL 48 RPP14 170 - 4F	Cast iron	3535	90	213,90	211,11	226,0	-	175,0	187,0	89,0	49
89	89	53I056170P	PL 56 RPP14 170 - 4F	Cast iron	3535	90	249,55	246,76	256,0	-	210,0	187,0	89,0	49
90	90	53I064170P	PL 64 RPP14 170 - 4F	Cast iron	4040	100	285,21	282,41	296,0	-	239,0	187,0	102,0	42,5
91	91	53I072170P	PL 72 RPP14 170 - 9W	Cast iron	4040	100	320,86	318,06	-	230,0	280,0	187,0	102,0	42,5
92	92	53I080170P	PL 80 RPP14 170 - 9W	Cast iron	4040	100	356,51	353,71	-	230,0	315,0	187,0	102,0	42,5
93	93	53I090170P	PL 90 RPP14 170 - 9A	Cast iron	4040	100	401,07	398,28	-	230,0	358,0	187,0	102,0	42,5
94	94	53I112170P	PL112 RPP14 170 - 9A	Cast iron	5050	125	499,11	496,32	-	265,0	457,0	187,0	127,0	30
95	95	53I144170P	PL144 RPP14 170 - 9A	Cast iron	5050	125	641,71	638,92	-	265,0	600,0	187,0	127,0	30
96	96	53I168170P	PL168 RPP14 170 - 9A	Cast iron	5050	125	748,66	745,87	-	265,0	706,0	187,0	127,0	30
97	97	53I192170P	PL192 RPP14 170 - 9A	Cast iron	5050	125	855,62	852,82	-	265,0	813,0	187,0	127,0	30
98	98	53I216170P	PL216 RPP14 170 - 9A	Cast iron	5050	125	962,57	959,76	-	265,0	920,0	187,0	127,0	30
99	99	53I264170P	PL264 RPP14 170 - 9A	Cast iron	5050	125	1176,47	1173,68	-	265,0	1120,0	187,0	127,0	30

Documentation

Catalog Data Sheet
