RPP 14 - 55

Manufacturer	POGGI
Description	28 RPP14 55 - 6F
Part Number	51I028055

CAD models

Request for quotation

Product selection

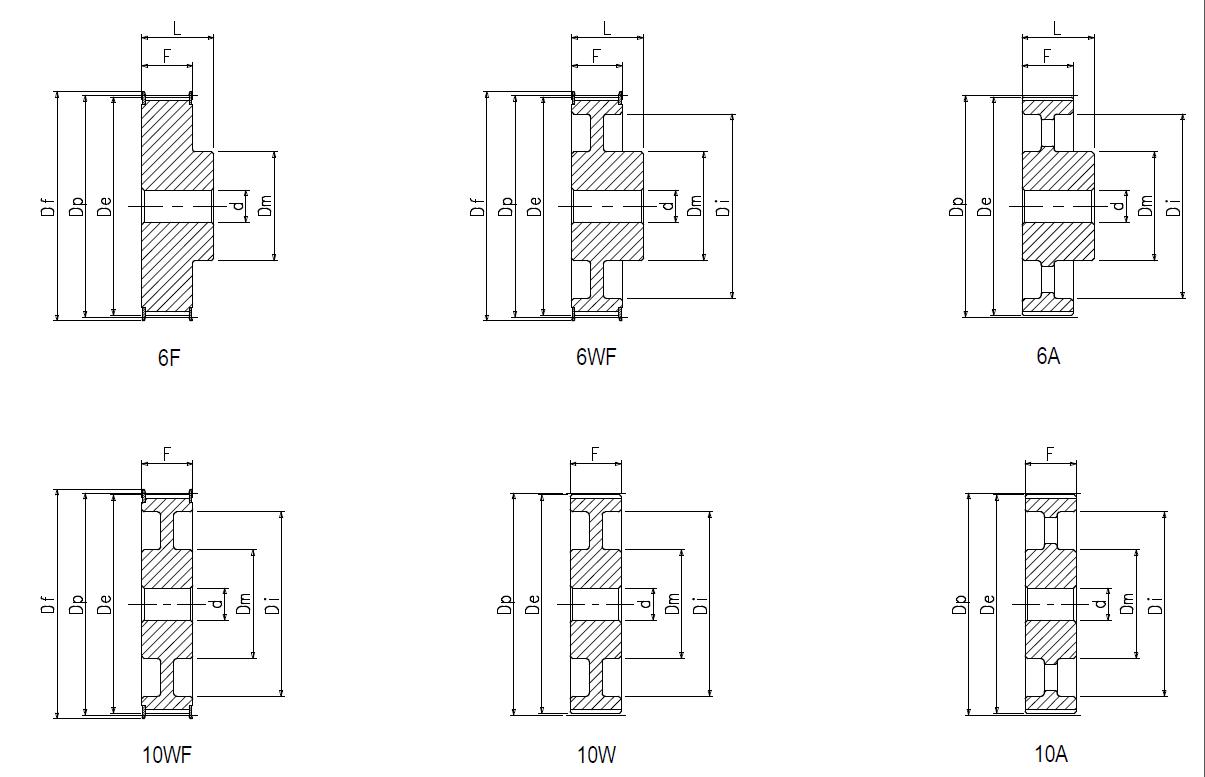

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	LU	d
1	1	51I028055	28 RPP14 55 - 6F	Cast iron	28	124,78	122,12	127,0	100,0	_	70,0	85,0	24,0
2	2	51I029055	29 RPP14 55 - 6F	Cast iron	29	129,23	126,57	138,0	100,0	_	70,0	85,0	24,0
3	3	51I030055	30 RPP14 55 - 6F	Cast iron	30	133,69	130,99	138,0	100,0	_	70,0	85,0	24,0
4	4	51I032055	32 RPP14 55 - 6F	Cast iron	32	142,60	139,88	154,0	100,0	_	70,0	85,0	24,0
5	5	51I034055	34 RPP14 55 - 6F	Cast iron	34	151,52	148,79	160,0	100,0	_	70,0	85,0	24,0
6	6	51I036055	36 RPP14 55 - 6F	Cast iron	36	160,43	157,68	168,0	100,0	_	70,0	85,0	24,0
7	7	51I038055	38 RPP14 55 - 6F	Cast iron	38	169,34	166,60	183,0	120,0	_	70,0	85,0	24,0
8	8	51I040055	40 RPP14 55 - 6F	Cast iron	40	178,25	175,49	188,0	120,0	_	70,0	85,0	24,0
9	9	51I044055	44 RPP14 55 - 6F	Cast iron	44	196,08	193,28	211,0	120,0	_	70,0	85,0	24,0
10	10	51I048055	48 RPP14 55 - 10WF	Cast iron	48	213,90	211,11	226,0	135,0	172,0	70,0	70,0	24,0
11	11	51I056055	56 RPP14 55 - 10WF	Cast iron	56	249,55	246,76	256,0	135,0	207,0	70,0	70,0	28,0
12	12	51I064055	64 RPP14 55 - 10WF	Cast iron	64	285,21	282,41	296,0	135,0	242,0	70,0	70,0	28,0
13	13	51I072055	72 RPP14 55 - 10A	Cast iron	72	320,86	318,06	-	135,0	278,0	70,0	70,0	28,0
14	14	51I080055	80 RPP14 55 - 10A	Cast iron	80	356,51	353,71	-	135,0	314,0	70,0	70,0	28,0
15	15	51I090055	90 RPP14 55 - 10A	Cast iron	90	401,07	398,28	-	135,0	358,0	70,0	70,0	28,0
16	16	51I112055	112 RPP14 55 - 10A	Cast iron	112	499,11	496,32	-	135,0	456,0	70,0	70,0	28,0
17	17	51I144055	144 RPP14 55 - 10A	Cast iron	144	641,71	638,92	-	135,0	600,0	70,0	70,0	28,0
18	18	51I168055	168 RPP14 55 - 10A	Cast iron	168	748,66	745,87	-	135,0	706,0	70,0	70,0	28,0
19	19	51I192055	192 RPP14 55 - 10A	Cast iron	192	855,62	852,82	-	135,0	813,0	70,0	70,0	28,0
20	20	51I216055	216 RPP14 55 - 10A	Cast iron	216	962,57	959,76	-	150,0	920,0	70,0	70,0	28,0

Documentation

Catalog Data Sheet
