L

Manufacturer	POGGI

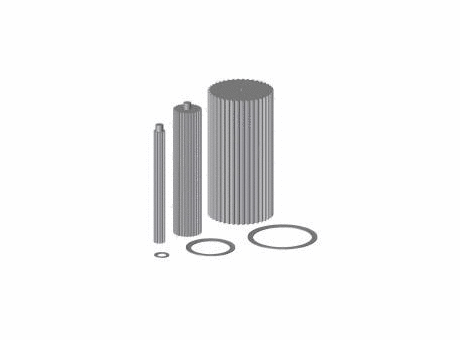

Description	10 L 200 AL
Part Number	77B010

CAD models

Request for quotation

Product selection

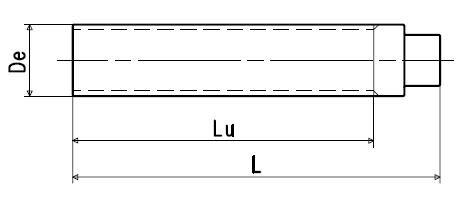

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	L	LU
1	1	77B010	10 L 200 AL	Aluminium	10	30,32	29,56	200	210
2	2	77B010X	10 L 200 ST	Steel	10	30,32	29,56	200	210
3	3	77B011	11 L 200 AL	Aluminium	11	33,35	32,59	200	210
4	4	77B011X	11 L 200 ST	Steel	11	33,35	32,59	200	210
5	5	77B012	12 L 200 AL	Aluminium	12	36,38	35,62	200	210
6	6	77B012X	12 L 200 ST	Steel	12	36,38	35,62	200	210
7	7	77B013	13 L 200 AL	Aluminium	13	39,41	38,65	200	210
8	8	77B013X	13 L 200 ST	Steel	13	39,41	38,65	200	210
9	9	77B014	14 L 200 AL	Aluminium	14	42,45	41,68	200	210
10	10	77B014X	14 L 200 ST	Steel	14	42,45	41,68	200	210
11	11	77B015	15 L 200 AL	Aluminium	15	45,48	44,72	200	200
12	12	77B015X	15 L 200 ST	Steel	15	45,48	44,72	200	200
13	13	77B016	16 L 200 AL	Aluminium	16	48,51	47,75	200	200
14	14	77B016X	16 L 200 ST	Steel	16	48,51	47,75	200	200
15	15	77B017	17 L 200 AL	Aluminium	17	51,54	50,78	200	200
16	16	77B017X	17 L 200 ST	Steel	17	51,54	50,78	200	200
17	17	77B018	18 L 200 AL	Aluminium	18	54,57	53,81	200	200
18	18	77B018X	18 L 200 ST	Steel	18	54,57	53,81	200	200
19	19	77B019	19 L 200 AL	Aluminium	19	57,61	56,84	200	200
20	20	77B019X	19 L 200 ST	Steel	19	57,61	56,84	200	200
21	21	77B020	20 L 200 AL	Aluminium	20	60,64	59,88	200	200
22	22	77B020X	20 L 200 ST	Steel	20	60,64	59,88	200	200
23	23	77B021	21 L 200 AL	Aluminium	21	63,67	62,91	200	200
24	24	77B021X	21 L 200 ST	Steel	21	63,67	62,91	200	200
25	25	77B022	22 L 200 AL	Aluminium	22	66,70	65,94	200	200
26	26	77B022X	22 L 200 ST	Steel	22	66,70	65,94	200	200
27	27	77B023	23 L 200 AL	Aluminium	23	69,73	68,97	200	200
28	28	77B023X	23 L 200 ST	Steel	23	69,73	68,97	200	200
29	29	77B024	24 L 200 AL	Aluminium	24	72,77	72,00	200	200
30	30	77B024X	24 L 200 ST	Steel	24	72,77	72,00	200	200
31	31	77B025	25 L 200 AL	Aluminium	25	75,80	75,04	200	200
32	32	77B025X	25 L 200 ST	Steel	25	75,80	75,04	200	200
33	33	77B026	26 L 200 AL	Aluminium	26	78,83	78,07	200	200
34	34	77B026X	26 L 200 ST	Steel	26	78,83	78,07	200	200
35	35	77B027	27 L 200 AL	Aluminium	27	81,86	81,10	200	200
36	36	77B027X	27 L 200 ST	Steel	27	81,86	81,10	200	200
37	37	77B028	28 L 200 AL	Aluminium	28	84,89	84,13	200	200
38	38	77B028X	28 L 200 ST	Steel	28	84,89	84,13	200	200
39	39	77B029	29 L 200 AL	Aluminium	29	87,93	87,16	200	200
40	40	77B029X	29 L 200 ST	Steel	29	87,93	87,16	200	200
41	41	77B030	30 L 200 AL	Aluminium	30	90,96	90,20	200	200
42	42	77B030X	30 L 200 ST	Steel	30	90,96	90,20	200	200
43	43	77B031	31 L 200 AL	Aluminium	31	93,99	93,23	200	200
44	44	77B031X	31 L 200 ST	Steel	31	93,99	93,23	200	200
45	45	77B032	32 L 200 AL	Aluminium	32	97,02	96,26	200	200
46	46	77B032X	32 L 200 ST	Steel	32	97,02	96,26	200	200
47	47	77B033	33 L 200 AL	Aluminium	33	100,05	99,29	200	200
48	48	77B033X	33 L 200 ST	Steel	33	100,05	99,29	200	200
49	49	77B034	34 L 200 AL	Aluminium	34	103,08	102,32	200	200
50	50	77B034X	34 L 200 ST	Steel	34	103,08	102,32	200	200
51	51	77B035	35 L 200 AL	Aluminium	35	106,12	105,35	200	200
52	52	77B035X	35 L 200 ST	Steel	35	106,12	105,35	200	200
53	53	77B036	36 L 200 AL	Aluminium	36	109,15	108,39	200	200
54	54	77B036X	36 L 200 ST	Steel	36	109,15	108,39	200	200
55	55	77B037	37 L 200 AL	Aluminium	37	112,18	111,42	200	200
56	56	77B037X	37 L 200 ST	Steel	37	112,18	111,42	200	200
57	57	77B038	38 L 200 AL	Aluminium	38	115,21	114,45	200	200
58	58	77B038X	38 L 200 ST	Steel	38	115,21	114,45	200	200
59	59	77B039	39 L 200 AL	Aluminium	39	118,24	117,48	200	200
60	60	77B039X	39 L 200 ST	Steel	39	118,24	117,48	200	200
61	61	77B040	40 L 200 AL	Aluminium	40	121,28	120,51	200	200
62	62	77B040X	40 L 200 ST	Steel	40	121,28	120,51	200	200
63	63	77B041	41 L 200 AL	Aluminium	41	124,31	123,55	200	200
64	64	77B041X	41 L 200 ST	Steel	41	124,31	123,55	200	200
65	65	77B042	42 L 200 AL	Aluminium	42	127,34	126,58	200	200
66	66	77B042X	42 L 200 ST	Steel	42	127,34	126,58	200	200
67	67	77B043	43 L 200 AL	Aluminium	43	130,37	129,61	200	200
68	68	77B043X	43 L 200 ST	Steel	43	130,37	129,61	200	200
69	69	77B044	44 L 200 AL	Aluminium	44	133,40	132,64	200	200
70	70	77B044X	44 L 200 ST	Steel	44	133,40	132,64	200	200
71	71	77B045	45 L 200 AL	Aluminium	45	136,44	135,67	200	200
72	72	77B045X	45 L 200 ST	Steel	45	136,44	135,67	200	200
73	73	77B046	46 L 200 AL	Aluminium	46	139,47	138,71	200	200
74	74	77B046X	46 L 200 ST	Steel	46	139,47	138,71	200	200
75	75	77B047	47 L 200 AL	Aluminium	47	142,50	141,74	200	200
76	76	77B047X	47 L 200 ST	Steel	47	142,50	141,74	200	200
77	77	77B048	48 L 200 AL	Aluminium	48	145,53	144,77	200	200
78	78	77B048X	48 L 200 ST	Steel	48	145,53	144,77	200	200
79	79	77B060	60 L 200 AL	Aluminium	60	181,91	181,15	200	200

Documentation

Catalog Data Sheet

Contact the supplier

POGGI

Transmission parts

POGGI trasmissioni meccaniche S.p.A.

POGGI trasmissioni meccaniche S.p.A.
Via G. Di Vittorio, 26
40055 Villanova di Castenaso
Italy
www.poggispa.com
tecnico@poggispa.com
