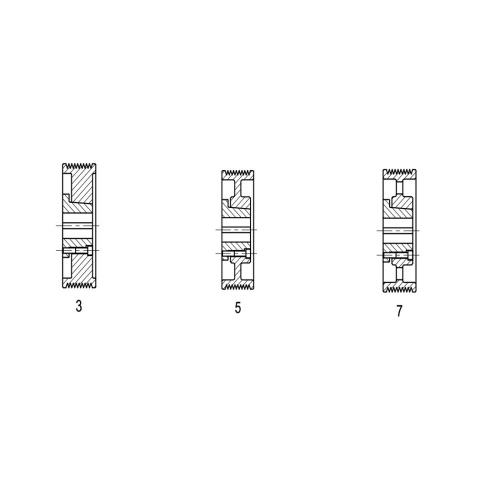

L16 Grooves

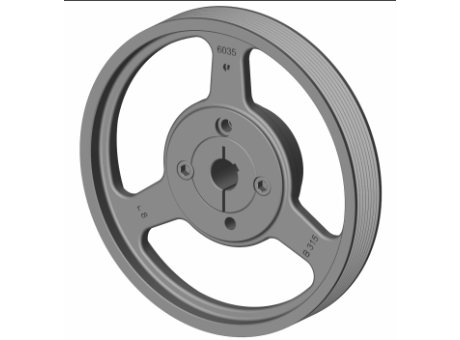

CAD models

Product selection

Index	Selector	Part Number	Description	Material	Bush	Max. Bore	De	Dm	Di	F	S	R
1	1	12L08516	B 85 L 16 - 3	Cast iron	2825	30	78	-	59	86	37	49
2	2	12L09016	B 90 L 16 - 3	Cast iron	2825	30	83	-	59	86	37	49
3	3	12L09516	B 95 L 16 - 3	Cast iron	2825	30	88	-	59.5	86	37	49
4	4	12L10016	B 100 L 16 - 3	Cast iron	3825	40	93	-	71	86	37	49
5	5	12L10616	B 106 L 16 - 3	Cast iron	3825	40	99	-	76	86	37	49
6	6	12L11216	B 112 L 16 - 3	Cast iron	3825	40	105	-	75	86	37	49
7	7	12L11816	B 118 L 16 - 3	Cast iron	4830	50	111	-	89	86	45	41
8	8	12L12516	B 125 L 16 - 3	Cast iron	4830	50	118	-	89	86	45	41
9	9	12L13216	B 132 L 16 - 3	Cast iron	5040	55	125	-	103	86	58	28
10	10	12L14016	B 140 L 16 - 3	Cast iron	5040	55	133	-	103	86	58	28
11	11	12L16016	B 160 L 16 - 3	Cast iron	5040	55	153	-	123	86	58	28
12	12	12L18016	B 180 L 16 - 5	Cast iron	5040	55	173	120	150	86	58	28
13	13	12L20016	B 200 L 16 - 5	Cast iron	5040	55	193	120	166	86	58	28
14	14	12L22416	B 224 L 16 - 5	Cast iron	6045	65	217	130	187	86	63	23
15	15	12L25016	B 250 L 16 - 7	Cast iron	6045	65	243	130	215	86	63	23
16	16	12L28016	B 280 L 16 - 7	Cast iron	6045	65	273	130	247	86	63	23
17	17	12L31516	B 315 L 16 - 7	Cast iron	6045	65	308	130	278	86	63	23
18	18	12L35516	B 355 L 16 - 7	Cast iron	6045	65	348	130	318	86	63	23
19	19	12L40016	B 400 L 16 - 7	Cast iron	7060	75	393	150	361	86	79	7
20	20	12L45016	B 450 L 16 - 7	Cast iron	7060	75	443	150	411	86	79	7
21	21	12L50016	B 500 L 16 - 7	Cast iron	7060	75	493	150	461	86	79	7
22	22	12L56016	B 560 L 16 - 7	Cast iron	7060	75	553	150	521	86	79	7
23	23	12L63016	B 630 L 16 - 7	Cast iron	7060	75	623	150	591	86	79	7
