L 100

Manufacturer	POGGI
Description	10 L 100-6F
Part Number	01B01010

CAD models

Request for quotation

Product selection

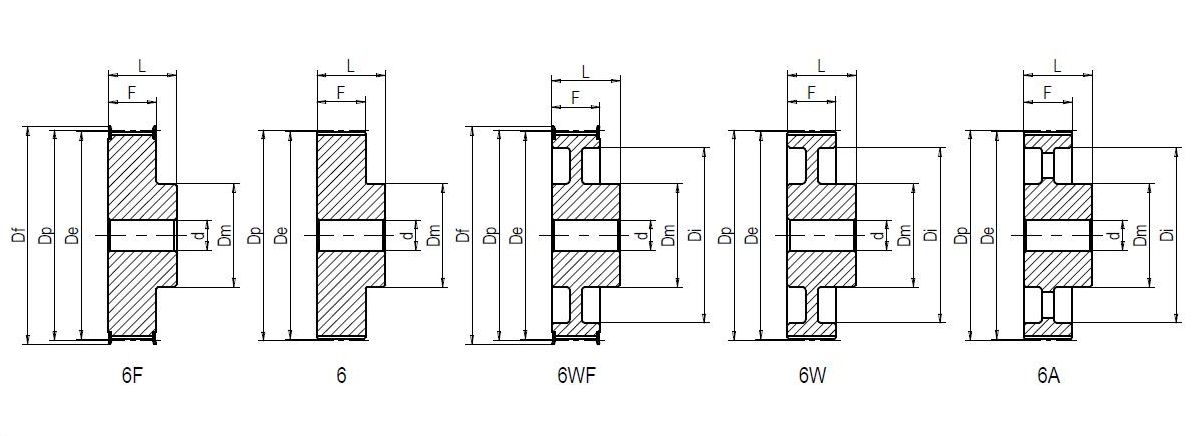

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	LU	d
1	1	01B01010	10 L 100-6F	Steel	10	30,32	29,56	36,0	20,0	-	31,8	45,0	-
2	2	01B01110	11 L 100-6F	Steel	11	33,35	32,59	38,0	24,0	-	31,8	45,0	-
3	3	01B01210	12 L 100-6F	Steel	12	36,38	35,62	42,0	24,0	-	31,8	45,0	-
4	4	01B01310	13 L 100-6F	Steel	13	39,41	38,65	44,0	28,0	-	31,8	45,0	-
5	5	01B01410	14 L 100-6F	Steel	14	42,45	41,68	48,0	28,0	-	31,8	45,0	-
6	6	01B01510	15 L 100-6F	Steel	15	45,48	44,72	51,0	34,0	-	31,8	45,0	-
7	7	01B01610	16 L 100-6F	Steel	16	48,51	47,75	54,0	36,0	-	31,8	45,0	-
8	8	01B01710	17 L 100-6F	Steel	17	51,54	50,78	57,0	36,0	-	31,8	45,0	-
9	9	01B01810	18 L 100-6F	Steel	18	54,57	53,81	60,0	40,0	-	31,8	45,0	-
10	10	01B01910	19 L 100-6F	Steel	19	57,61	56,84	60,0	40,0	-	31,8	45,0	-
11	11	01B02010	20 L 100-6F	Steel	20	60,64	59,88	66,0	40,0	-	31,8	45,0	-
12	12	01B02110	21 L 100-6F	Steel	21	63,67	62,91	71,0	45,0	-	31,8	45,0	-
13	13	01B02210	22 L 100-6F	Steel	22	66,70	65,94	75,0	45,0	-	31,8	45,0	-
14	14	01B02310	23 L 100-6F	Steel	23	69,73	68,97	79,0	55,0	-	31,8	45,0	-
15	15	01B02410	24 L 100-6F	Steel	24	72,77	72,00	79,0	55,0	-	31,8	45,0	-
16	16	01B02510	25 L 100-6F	Steel	25	75,80	75,04	83,0	58,0	-	31,8	45,0	-
17	17	01B02610	26 L 100-6F	Steel	26	78,83	78,07	87,0	58,0	-	31,8	45,0	-
18	18	01B02710	27 L 100-6F	Steel	27	81,86	81,10	87,0	58,0	-	31,8	45,0	-
19	19	01B02810	28 L 100-6F	Steel	28	84,89	84,13	91,0	58,0	-	31,8	45,0	-
20	20	01B02910	29 L 100-6F	Steel	29	87,92	87,16	93,0	58,0	-	31,8	45,0	-
21	21	01B03010	30 L 100-6F	Steel	30	90,96	90,20	97,0	58,0	-	31,8	45,0	-
22	22	01B03210	32 L 100-6F	Steel	32	97,02	96,26	103,0	65,0	-	31,8	45,0	-
23	23	01B03310	33 L 100-6F	Cast iron	33	100,05	99,29	106,0	65,0	-	31,8	45,0	12,0
24	24	01B03410	34 L 100-6F	Cast iron	34	103,08	102,32	111,0	65,0	-	31,8	45,0	12,0
25	25	01B03510	35 L 100-6F	Cast iron	35	106,12	105,35	111,0	65,0	-	31,8	45,0	12,0
26	26	01B03610	36 L 100-6F	Cast iron	36	109,15	108,39	115,0	65,0	-	31,8	45,0	12,0
27	27	01B04010	40 L 100-6WF	Cast iron	40	121,28	120,51	127,00	68,00	100,00	31,80	45,0	12,0
28	28	01B04110	41 L 100-6WF	Cast iron	41	124,31	123,55	131,00	68,00	103,00	31,80	45,0	12,0
29	29	01B04210	42 L 100-6WF	Cast iron	42	127,34	126,58	135,00	68,00	106,00	31,80	45,0	12,0
30	30	01B04410	44 L 100-6WF	Cast iron	44	133,40	132,64	140,00	68,00	112,00	31,80	45,0	12,0
31	31	01B04510	45 L 100-6WF	Cast iron	45	136,44	135,67	143,00	68,00	115,00	31,80	45,0	12,0
32	32	01B04710	47 L 100-6WF	Cast iron	47	142,50	141,74	148,00	68,00	121,00	31,80	45,0	12,0
33	33	01B04810	48 L 100-6WF	Cast iron	48	145,53	144,77	152,00	68,00	124,00	31,80	45,0	12,0
34	34	01B04910	49 L 100-6W	Cast iron	49	148,56	147,80	-	68,00	127,00	31,80	45,0	15,0
35	35	01B05010	50 L 100-6W	Cast iron	50	151,60	150,83	-	68,00	130,00	31,80	45,0	15,0
36	36	01B05210	52 L 100-6W	Cast iron	52	157,66	156,90	-	68,00	136,00	31,80	45,0	15,0
37	37	01B05610	56 L 100-6W	Cast iron	56	169,79	169,02	-	68,00	149,00	31,80	45,0	15,0
38	38	01B05710	57 L 100-6W	Cast iron	57	172,82	172,06	-	68,00	152,00	31,80	45,0	15,0
39	39	01B06010	60 L 100-6W	Cast iron	60	181,91	181,15	-	75,00	160,00	31,80	50,0	15,0
40	40	01B06510	65 L 100-6A	Cast iron	65	197,07	196,31	-	75,00	176,00	31,80	50,0	15,0
41	41	01B06610	66 L 100-6A	Cast iron	66	200,11	199,34	-	75,00	179,00	31,80	50,0	15,0
42	42	01B07210	72 L 100-6A	Cast iron	72	218,30	217,53	-	75,00	200,00	31,80	50,0	15,0
43	43	01B08410	84 L 100-6A	Cast iron	84	254,68	253,92	-	75,00	233,00	31,80	50,0	15,0
44	44	01B09010	90 L 100-6A	Cast iron	90	272,87	272,11	-	75,00	252,00	31,80	50,0	15,0
45	45	01B09610	96 L 100-6A	Cast iron	96	291,06	290,30	-	75,00	274,00	31,80	50,0	15,0
46	46	01B12010	120 L 100-6A	Cast iron	120	363,83	363,07	-	75,00	342,00	31,80	50,0	15,0
