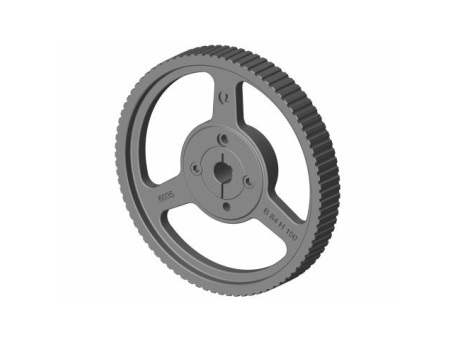

L 075

CAD models

Product selection

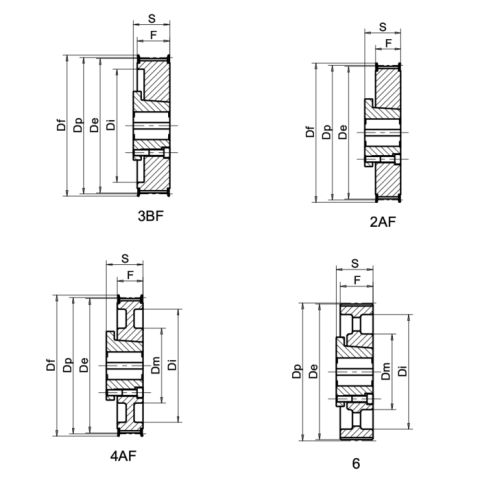

Index	Selector	Part Number	Description	Material	Bush	Max. Bore	Dp	De	Df	Dm	Di	F	S	R
1	1	02B02007	B 20 L 075-3BF	Steel	2016	20	60.64	59.88	66	-	46.5	25.4	27	-
2	2	02B02107	B 21 L 075-3BF	Steel	2016	20	63.67	62.91	71	-	48	25.4	27	-
3	3	02B02207	B 22 L 075-2AF	Steel	2825	30	66.7	65.94	75	-	-	25.4	37	-
4	4	02B02307	B 23 L 075-2AF	Cast iron	2825	30	69.73	68.97	79	-	-	25.4	37	-
5	5	02B02407	B 24 L 075-2AF	Cast iron	2825	30	72.77	72	79	-	-	25.4	37	-
6	6	02B02507	B 25 L 075-2AF	Cast iron	2825	30	75.8	75.04	83	-	-	25.4	37	-
7	7	02B02607	B 26 L 075-2AF	Cast iron	2825	30	78.83	78.07	87	-	-	25.4	37	-
8	8	02B02707	B 27 L 075-2AF	Cast iron	2825	30	81.86	81.1	87	-	-	25.4	37	-
9	9	02B02807	B 28 L 075-2AF	Cast iron	2825	30	84.89	84.13	91	-	-	25.4	37	-
10	10	02B03007	B 30 L 075-2AF	Cast iron	2825	30	90.96	90.2	97	-	-	25.4	37	-
11	11	02B03207	B 32 L 075-2AF	Cast iron	3825	40	97.02	96.26	103	-	-	25.4	37	-
12	12	02B03607	B 36 L 075-2AF	Cast iron	3825	40	109.15	108.39	115	-	-	25.4	37	-
13	13	02B04007	B 40 L 075-4AF	Cast iron	3825	40	121.28	120.51	127	75	94	25.4	37	-
14	14	02B04407	B 44 L 075-4AF	Cast iron	3825	40	133.4	132.64	140	75	109	25.4	37	-
15	15	02B04807	B 48 L 075-4AF	Cast iron	3825	40	145.53	144.77	152	75	120	25.4	37	-
16	16	02B06007	B 60 L 075-6	Cast iron	4830	50	181.91	181.15	-	95	168	25.4	45	-
17	17	02B07207	B 72 L 075-6	Cast iron	4830	50	218.3	217.53	-	95	198	25.4	45	-
18	18	02B08407	B 84 L 075-6	Cast iron	4830	50	254.68	253.92	-	95	234	25.4	45	-
19	19	02B09607	B 96 L 075-6	Cast iron	4830	50	291.06	290.3	-	95	270	25.4	45	-
20	20	02B12007	B 120 L 075-6	Cast iron	6035	65	363.83	363.07	-	130	344	25.4	53	-
