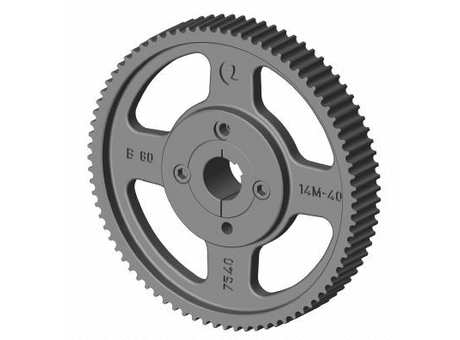

HTD® 14M

Manufacturer	POGGI
Description	B 28 14M 40 - 3F
Part Number	33I028040

CAD models

Request for quotation

Product selection

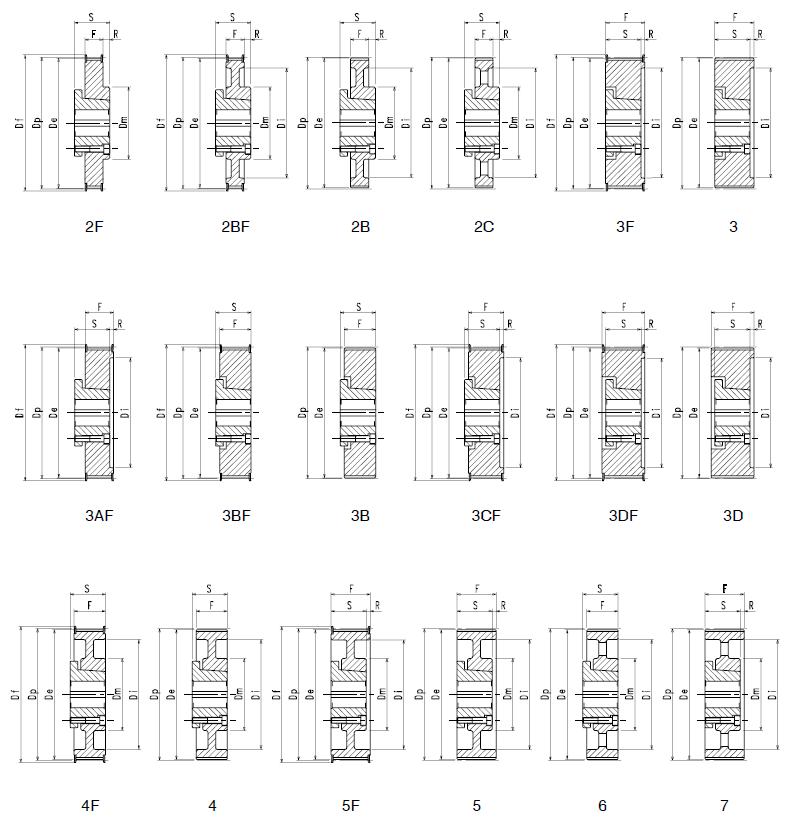

Index	Selector	Part Number	Description	Material	Bush	Max. Bore	Dp	De	Df	Dm	Di	F	S	R
1	1	33I028040	B 28 14M 40 - 3F	Cast iron	4830	50	124,78	122,12	127,0	-	90,0	54,0	45,0	9,0
2	2	33I029040	B 29 14M 40 - 3F	Cast iron	4830	50	129,23	126,57	138,0	-	95,0	54,0	45,0	9,0
3	3	33I030040	B 30 14M 40 - 3F	Cast iron	4830	50	133,69	130,99	138,0	-	98,0	54,0	45,0	9,0
4	4	33I032040	B 32 14M 40 - 3F	Cast iron	4830	50	142,60	139,88	154,0	-	105,0	54,0	45,0	9,0
5	5	33I034040	B 34 14M 40 - 3F	Cast iron	6035	65	151,52	148,79	160,0	-	-	54,0	53,0	1,0
6	6	33I036040	B 36 14M 40 - 3F	Cast iron	6035	65	160,43	157,68	168,0	-	-	54,0	53,0	1,0
7	7	33I038040	B 38 14M 40 - 3F	Cast iron	6035	65	169,34	166,60	183,0	-	-	54,0	53,0	1,0
8	8	33I040040	B 40 14M 40 - 3F	Cast iron	6035	65	178,25	175,49	188,0	-	-	54,0	53,0	1,0
9	9	33I044040	B 44 14M 40 - 3BF	Cast iron	7540	75	196,08	193,28	211,0	-	-	54,0	59,0	-
10	10	33I048040	B 48 14M 40 - 3BF	Cast iron	7540	75	213,90	211,11	226,0	-	-	54,0	59,0	-
11	11	33I056040	B 56 14M 40 - 4F	Cast iron	7540	75	249,55	246,76	256,0	160,0	208,0	54,0	59,0	-
12	12	33I064040	B 64 14M 40 - 4F	Cast iron	7540	75	285,21	282,41	296,0	160,0	239,0	54,0	59,0	-
13	13	33I072040	B 72 14M 40 - 4	Cast iron	7540	75	320,86	318,06	-	160,0	280,0	54,0	59,0	-
14	14	33I080040	B 80 14M 40 - 6	Cast iron	7540	75	356,51	353,71	-	160,0	315,0	54,0	59,0	-
15	15	33I090040	B 90 14M 40 - 6	Cast iron	7540	75	401,07	398,28	-	160,0	358,0	54,0	59,0	-
16	16	33I112040	B 112 14M 40 - 6	Cast iron	7540	75	499,11	496,32	-	160,0	457,0	54,0	59,0	-
17	17	33I144040	B 144 14M 40 - 6	Cast iron	7540	75	641,71	638,92	-	160,0	600,0	54,0	59,0	-
18	18	33I168040	B 168 14M 40 - 6	Cast iron	7540	75	748,66	745,87	-	160,0	706,0	54,0	59,0	-
19	19	33I192040	B 192 14M 40 - 6	Cast iron	7540	75	855,62	852,82	-	160,0	813,0	54,0	59,0	-
20	20	33I216040	B 216 14M 40 - 6	Cast iron	7540	75	962,57	959,76	-	160,0	920,0	54,0	59,0	-
21	21	33I028055	B 28 14M 55 - 3F	Cast iron	4830	50	124,78	122,12	127,0	-	90,0	70,0	45,0	25,0
22	22	33I029055	B 29 14M 55 - 3F	Cast iron	4830	50	129,23	126,57	138,0	-	95,0	70,0	45,0	25,0
23	23	33I030055	B 30 14M 55 - 3F	Cast iron	4830	50	133,69	130,99	138,0	-	98,0	70,0	45,0	25,0
24	24	33I032055	B 32 14M 55 - 3F	Cast iron	6035	65	142,60	139,88	154,0	-	111,0	70,0	53,0	17,5
25	25	33I034055	B 34 14M 55 - 3F	Cast iron	6035	65	151,52	148,79	160,0	-	115,0	70,0	53,0	17,5
26	26	33I036055	B 36 14M 55 - 3F	Cast iron	6035	65	160,43	157,68	168,0	-	124,0	70,0	53,0	17,5
27	27	33I038055	B 38 14M 55 - 3F	Cast iron	6035	65	169,34	166,60	183,0	-	130,0	70,0	53,0	17,5
28	28	33I040055	B 40 14M 55 - 3F	Cast iron	6035	65	178,25	175,49	188,0	-	140,0	70,0	53,0	17,5
29	29	33I044055	B 44 14M 55 - 3F	Cast iron	7540	75	196,08	193,28	211,0	-	150,0	70,0	59,0	11,0
30	30	33I048055	B 48 14M 55 - 3F	Cast iron	7540	75	213,90	211,11	226,0	-	170,0	70,0	59,0	11,0
31	31	33I056055	B 56 14M 55 - 5F	Cast iron	7540	75	249,55	246,76	256,0	160,0	208,0	70,0	59,0	11,0
32	32	33I064055	B 64 14M 55 - 5F	Cast iron	7540	75	285,21	282,41	296,0	160,0	239,0	70,0	59,0	11,0
33	33	33I072055	B 72 14M 55 - 5	Cast iron	7540	75	320,86	318,06	-	160,0	280,0	70,0	59,0	11,0
34	34	33I080055	B 80 14M 55 - 7	Cast iron	7540	75	356,51	353,71	-	160,0	315,0	70,0	59,0	11,0
35	35	33I090055	B 90 14M 55 - 7	Cast iron	7540	75	401,07	398,28	-	160,0	358,0	70,0	59,0	11,0
36	36	33I112055	B 112 14M 55 - 7	Cast iron	7540	75	499,11	496,32	-	160,0	457,0	70,0	59,0	11,0
37	37	33I144055	B 144 14M 55 - 7	Cast iron	7540	75	641,71	638,92	-	160,0	600,0	70,0	59,0	11,0
38	38	33I168055	B 168 14M 55 - 7	Cast iron	7540	75	748,66	745,87	-	160,0	706,0	70,0	59,0	11,0
39	39	33I192055	B 192 14M 55 - 7	Cast iron	7540	75	855,62	852,82	-	160,0	813,0	70,0	59,0	11,0
40	40	33I216055	B 216 14M 55 - 2C	Cast iron	9085	95	962,57	959,76	-	200,0	920,0	70,0	105,0	15,0
41	41	33I028085	B 28 14M 85 - 3DF	Cast iron	5040	55	124,78	122,12	127,0	-	101,0	102,0	58,0	31,0
42	42	33I029085	B 29 14M 85 - 3DF	Cast iron	5040	55	129,23	126,57	138,0	-	101,0	102,0	58,0	31,0
43	43	33I030085	B 30 14M 85 - 3DF	Cast iron	5040	55	133,69	130,99	138,0	-	101,0	102,0	58,0	31,0
44	44	33I032085	B 32 14M 85 - 3DF	Cast iron	6035	65	142,60	139,88	154,0	-	111,0	102,0	53,0	33,5
45	45	33I034085	B 34 14M 85 - 3DF	Cast iron	6035	65	151,52	148,79	160,0	-	115,0	102,0	53,0	33,5
46	46	33I036085	B 36 14M 85 - 3DF	Cast iron	6045	65	160,43	157,68	168,0	-	120,0	102,0	63,0	28,5
47	47	33I038085	B 38 14M 85 - 3DF	Cast iron	6045	65	169,34	166,60	183,0	-	130,0	102,0	63,0	28,5
48	48	33I040085	B 40 14M 85 - 3DF	Cast iron	7540	75	178,25	175,49	188,0	-	145,0	102,0	59,0	31,0
49	49	33I044085	B 44 14M 85 - 3DF	Cast iron	7060	75	196,08	193,28	211,0	-	155,0	102,0	79,0	21,0
50	50	33I048085	B 48 14M 85 - 3CF	Cast iron	8070	80	213,90	211,11	226,0	-	170,0	102,0	88,0	16,0
51	51	33I056085	B 56 14M 85 - 3BF	Cast iron	9085	95	249,55	246,76	256,0	-	-	102,0	105,0	-
52	52	33I064085	B 64 14M 85 - 4F	Cast iron	9085	95	285,21	282,41	296,0	200,0	239,0	102,0	105,0	-
53	53	33I072085	B 72 14M 85 - 4	Cast iron	9085	95	320,86	318,06	-	200,0	280,0	102,0	105,0	-
54	54	33I080085	B 80 14M 85 - 6	Cast iron	9085	95	356,51	353,71	-	200,0	315,0	102,0	105,0	-
55	55	33I090085	B 90 14M 85 - 6	Cast iron	9085	95	401,07	398,28	-	200,0	358,0	102,0	105,0	-
56	56	33I112085	B 112 14M 85 - 6	Cast iron	9085	95	499,11	496,32	-	200,0	456,0	102,0	105,0	-
57	57	33I144085	B 144 14M 85 - 6	Cast iron	9085	95	641,71	638,92	-	200,0	600,0	102,0	105,0	-
58	58	33I168085	B 168 14M 85 - 6	Cast iron	9085	95	748,66	745,87	-	200,0	706,0	102,0	105,0	-
59	59	33I192085	B 192 14M 85 - 6	Cast iron	10095	100	855,62	852,82	-	220,0	813,0	102,0	119,0	-
60	60	33I216085	B 216 14M 85 - 6	Cast iron	10095	100	962,57	959,76	-	220,0	920,0	102,0	119,0	-
61	61	33I032115	B 32 14M 115 - 3DF	Cast iron	6045	65	142,60	139,88	154,0	-	111,0	133,0	63,0	44,0
62	62	33I034115	B 34 14M 115 - 3DF	Cast iron	6045	65	151,52	148,79	160,0	-	118,0	133,0	63,0	44,0
63	63	33I036115	B 36 14M 115 - 3DF	Cast iron	6045	65	160,43	157,68	168,0	-	120,0	133,0	63,0	44,0
64	64	33I038115	B 38 14M 115 - 3DF	Cast iron	6045	65	169,34	166,60	183,0	-	130,0	133,0	63,0	44,0
65	65	33I040115	B 40 14M 115 - 3DF	Cast iron	7060	75	178,25	175,49	188,0	-	145,0	133,0	79,0	36,5
66	66	33I044115	B 44 14M 115 - 3DF	Cast iron	7060	75	196,08	193,28	211,0	-	155,0	133,0	79,0	36,5
67	67	33I048115	B 48 14M 115 - 3F	Cast iron	8070	80	213,90	211,11	226,0	-	170,0	133,0	88,0	45,0
68	68	33I056115	B 56 14M 115 - 3F	Cast iron	9085	95	249,55	246,76	256,0	-	208,0	133,0	105,0	28,0
69	69	33I064115	B 64 14M 115 - 5F	Cast iron	9085	95	285,21	282,41	296,0	200,0	239,0	133,0	105,0	28,0
70	70	33I072115	B 72 14M 115 - 5	Cast iron	9085	95	320,86	318,06	-	200,0	280,0	133,0	105,0	28,0
71	71	33I080115	B 80 14M 115 - 7	Cast iron	9085	95	356,51	353,71	-	200,0	315,0	133,0	105,0	28,0
72	72	33I090115	B 90 14M 115 - 7	Cast iron	9085	95	401,07	398,28	-	200,0	358,0	133,0	105,0	28,0
73	73	33I112115	B 112 14M 115 - 7	Cast iron	9085	95	499,11	496,32	-	200,0	456,0	133,0	105,0	28,0
74	74	33I144115	B 144 14M 115 - 7	Cast iron	10095	100	641,71	638,92	-	220,0	600,0	133,0	119,0	14,0
75	75	33I168115	B 168 14M 115 - 7	Cast iron	10095	100	748,66	745,87	-	220,0	706,0	133,0	119,0	14,0
76	76	33I192115	B 192 14M 115 - 7	Cast iron	10095	100	855,62	852,82	-	220,0	813,0	133,0	119,0	14,0
77	77	33I216115	B 216 14M 115 - 7	Cast iron	10095	100	962,57	959,76	-	220,0	920,0	133,0	119,0	14,0
78	78	33I044170	B 44 14M 170 - 3DF	Cast iron	8070	80	196,08	193,28	211,0	-	160,0	187,0	88,0	58,5
79	79	33I048170	B 48 14M 170 - 3DF	Cast iron	9085	95	213,90	211,11	226,0	-	175,0	187,0	105,0	51,0
80	80	33I056170	B 56 14M 170 - 3DF	Cast iron	9085	95	249,55	246,76	256,0	-	208,0	187,0	105,0	51,0
81	81	33I064170	B 64 14M 170 - 3DF	Cast iron	10095	100	285,21	282,41	296,0	-	239,0	187,0	119,0	46,0
82	82	33I072170	B 72 14M 170 - 3D	Cast iron	10095	100	320,86	318,06	-	220,0	280,0	187,0	119,0	46,0
83	83	33I080170	B 80 14M 170 - 3D	Cast iron	10095	100	356,51	353,71	-	220,0	315,0	187,0	119,0	46,0
84	84	33I090170	B 90 14M 170 - 7	Cast iron	10095	100	401,07	398,28	-	220,0	358,0	187,0	119,0	46,0
85	85	33I112170	B 112 14M 170 - 7	Cast iron	130120	130	499,11	496,32	-	250,0	456,0	187,0	145,0	42,0
86	86	33I144170	B 144 14M 170 - 7	Cast iron	130120	130	641,71	638,92	-	250,0	600,0	187,0	145,0	42,0
87	87	33I168170	B 168 14M 170 - 7	Cast iron	130120	130	748,66	745,87	-	250,0	706,0	187,0	145,0	42,0
88	88	33I192170	B 192 14M 170 - 7	Cast iron	130120	130	855,62	852,82	-	250,0	813,0	187,0	145,0	42,0
89	89	33I216170	B 216 14M 170 - 7	Cast iron	130120	130	962,57	959,76	-	250,0	920,0	187,0	145,0	42,0
