H

Manufacturer	POGGI

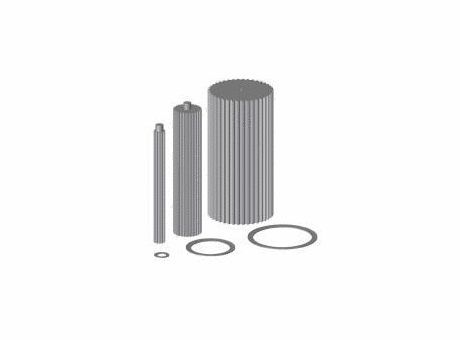

Description	14 H 200 AL
Part Number	77C014

CAD models

Request for quotation

Product selection

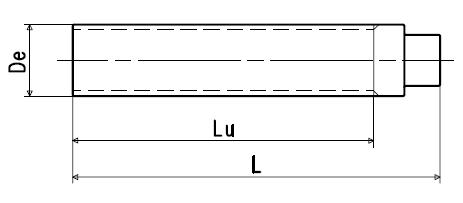

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	L	LU
1	1	77C014	14 H 200 AL	Aluminium	14	56,60	55,22	200	200
2	2	77C014X	14 H 200 ST	Steel	14	56,60	55,22	200	200
3	3	77C015	15 H 200 AL	Aluminium	15	60,64	59,27	200	200
4	4	77C015X	15 H 200 ST	Steel	15	60,64	59,27	200	200
5	5	77C016	16 H 200 AL	Aluminium	16	64,68	63,31	200	200
6	6	77C016X	16 H 200 ST	Steel	16	64,68	63,31	200	200
7	7	77C017	17 H 200 AL	Aluminium	17	68,72	67,35	200	200
8	8	77C017X	17 H 200 ST	Steel	17	68,72	67,35	200	200
9	9	77C018	18 H 200 AL	Aluminium	18	72,77	71,39	200	200
10	10	77C018X	18 H 200 ST	Steel	18	72,77	71,39	200	200
11	11	77C019	19 H 200 AL	Aluminium	19	76,81	75,44	200	200
12	12	77C019X	19 H 200 ST	Steel	19	76,81	75,44	200	200
13	13	77C020	20 H 200 AL	Aluminium	20	80,85	79,48	200	200
14	14	77C020X	20 H 200 ST	Steel	20	80,85	79,48	200	200
15	15	77C021	21 H 200 AL	Aluminium	21	84,89	83,52	200	200
16	16	77C021X	21 H 200 ST	Steel	21	84,89	83,52	200	200
17	17	77C022	22 H 200 AL	Aluminium	22	88,94	87,56	200	200
18	18	77C022X	22 H 200 ST	Steel	22	88,94	87,56	200	200
19	19	77C023	23 H 200 AL	Aluminium	23	92,98	91,61	200	200
20	20	77C023X	23 H 200 ST	Steel	23	92,98	91,61	200	200
21	21	77C024	24 H 200 AL	Aluminium	24	97,02	95,65	200	200
22	22	77C024X	24 H 200 ST	Steel	24	97,02	95,65	200	200
23	23	77C025	25 H 200 AL	Aluminium	25	101,06	99,69	200	200
24	24	77C025X	25 H 200 ST	Steel	25	101,06	99,69	200	200
25	25	77C026	26 H 200 AL	Aluminium	26	105,11	103,73	200	200
26	26	77C026X	26 H 200 ST	Steel	26	105,11	103,73	200	200
27	27	77C027	27 H 200 AL	Aluminium	27	109,15	107,78	200	200
28	28	77C027X	27 H 200 ST	Steel	27	109,15	107,78	200	200
29	29	77C028	28 H 200 AL	Aluminium	28	113,19	111,82	200	200
30	30	77C028X	28 H 200 ST	Steel	28	113,19	111,82	200	200
31	31	77C029	29 H 200 AL	Aluminium	29	117,23	115,86	200	200
32	32	77C029X	29 H 200 ST	Steel	29	117,23	115,86	200	200
33	33	77C030	30 H 200 AL	Aluminium	30	121,28	119,90	200	200
34	34	77C030X	30 H 200 ST	Steel	30	121,28	119,90	200	200
35	35	77C031	31 H 200 AL	Aluminium	31	125,32	123,95	200	200
36	36	77C031X	31 H 200 ST	Steel	31	125,32	123,95	200	200
37	37	77C032	32 H 200 AL	Aluminium	32	129,36	127,99	200	200
38	38	77C032X	32 H 200 ST	Steel	32	129,36	127,99	200	200
39	39	77C033	33 H 200 AL	Aluminium	33	133,40	132,03	200	200
40	40	77C033X	33 H 200 ST	Steel	33	133,40	132,03	200	200
41	41	77C034	34 H 200 AL	Aluminium	34	137,45	136,07	200	200
42	42	77C034X	34 H 200 ST	Steel	34	137,45	136,07	200	200
43	43	77C035	35 H 200 AL	Aluminium	35	141,49	140,12	200	200
44	44	77C035X	35 H 200 ST	Steel	35	141,49	140,12	200	200
45	45	77C036	36 H 200 AL	Aluminium	36	145,53	144,16	200	200
46	46	77C036X	36 H 200 ST	Steel	36	145,53	144,16	200	200
47	47	77C037	37 H 200 AL	Aluminium	37	149,57	148,20	200	200
48	48	77C037X	37 H 200 ST	Steel	37	149,57	148,20	200	200
49	49	77C038	38 H 200 AL	Aluminium	38	153,62	152,24	200	200
50	50	77C038X	38 H 200 ST	Steel	38	153,62	152,24	200	200
51	51	77C039	39 H 200 AL	Aluminium	39	157,66	156,29	200	200
52	52	77C039X	39 H 200 ST	Steel	39	157,66	156,29	200	200
53	53	77C040	40 H 200 AL	Aluminium	40	161,70	160,33	200	200
54	54	77C040X	40 H 200 ST	Steel	40	161,70	160,33	200	200
55	55	77C041	41 H 200 AL	Aluminium	41	165,74	164,37	200	200
56	56	77C041X	41 H 200 ST	Steel	41	165,74	164,37	200	200
57	57	77C042	42 H 200 AL	Aluminium	42	169,79	168,41	200	200
58	58	77C042X	42 H 200 ST	Steel	42	169,79	168,41	200	200
59	59	77C043	43 H 200 AL	Aluminium	43	173,83	172,46	200	200
60	60	77C043X	43 H 200 ST	Steel	43	173,83	172,46	200	200
61	61	77C044	44 H 200 AL	Aluminium	44	177,87	176,50	200	200
62	62	77C044X	44 H 200 ST	Steel	44	177,87	176,50	200	200
63	63	77C045	45 H 200 AL	Aluminium	45	181,91	180,54	200	200
64	64	77C045X	45 H 200 ST	Steel	45	181,91	180,54	200	200
65	65	77C046	46 H 200 AL	Aluminium	46	185,96	184,58	200	200
66	66	77C046X	46 H 200 ST	Steel	46	185,96	184,58	200	200
67	67	77C047	47 H 200 AL	Aluminium	47	190,00	188,63	200	200
68	68	77C047X	47 H 200 ST	Steel	47	190,00	188,63	200	200
69	69	77C048	48 H 200 AL	Aluminium	48	194,04	192,67	200	200
70	70	77C048X	48 H 200 ST	Steel	48	194,04	192,67	200	200

Documentation

Catalog Data Sheet

Contact the supplier

POGGI

Transmission parts

POGGI trasmissioni meccaniche S.p.A.

POGGI trasmissioni meccaniche S.p.A.
Via G. Di Vittorio, 26
40055 Villanova di Castenaso
Italy
www.poggispa.com
tecnico@poggispa.com
