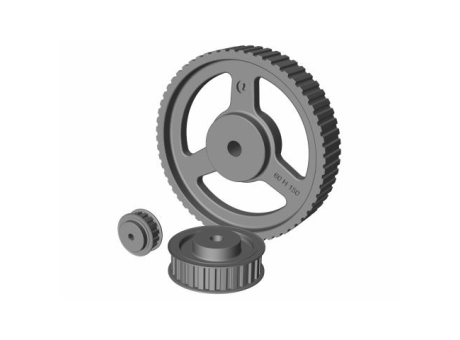

H 300

CAD models

Product selection

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	L	E	d stock	d max
1	1	19C01630	16 H 300 - 6F	Steel	16	64.68	63.31	71	46	-	84	94	-	15	28
2	2	19C01830	18 H 300 - 6F	Steel	18	72.77	71.39	79	54	-	84	94	-	15	32
3	3	19C01930	19 H 300 - 6F	Steel	19	76.81	75.44	83	58	-	84	94	-	15	34
4	4	19C02030	20 H 300 - 6F	Steel	20	80.85	79.48	87	62	-	84	94	-	15	35
5	5	19C02130	21 H 300 - 6F	Steel	21	84.89	83.52	91	67	-	84	94	-	15	38
6	6	19C02230	22 H 300 - 6F	Steel	22	88.94	87.56	93	70	-	84	94	-	15	41
7	7	19C02430	24 H 300 - 6F	Steel	24	97.02	95.65	103	75	-	84	94	-	15	45
8	8	19C02630	26 H 300 - 6CWF	Cast iron	26	105.11	103.73	111	60	80	84	57	35	15	35
9	9	19C02830	28 H 300 - 6CWF	Cast iron	28	113.19	111.82	119	60	88	84	57	35	15	35
10	10	19C03030	30 H 300 - 6CWF	Cast iron	30	121.28	119.9	127	70	96	84	57	35	15	40
11	11	19C03230	32 H 300 - 6CWF	Cast iron	32	129.36	127.99	135	70	105	84	57	35	20	40
12	12	19C03630	36 H 300 - 6CWF	Cast iron	36	145.53	144.16	152	80	120	84	57	35	20	45
13	13	19C04030	40 H 300 - 11AF	Cast iron	40	161.7	160.33	168	80	136	84	55	-	20	45
14	14	19C04430	44 H 300 - 11AF	Cast iron	44	177.87	176.5	184	80	152	84	55	-	20	45
15	15	19C04830	48 H 300 - 11AF	Cast iron	48	194.04	192.67	200	85	168	84	55	-	20	48
16	16	19C06030	60 H 300 - 11A	Cast iron	60	242.55	241.18	-	100	217	86	55	-	20	57
17	17	19C07230	72 H 300 - 11A	Cast iron	72	291.06	289.69	-	100	262	86	55	-	20	57
18	18	19C08430	84 H 300 - 11A	Cast iron	84	339.57	338.2	-	100	310	86	55	-	20	57
19	19	19C09630	96 H 300 - 11A	Cast iron	96	388.08	386.71	-	100	360	86	55	-	20	57
20	20	19C12030	120 H 300 - 11A	Cast iron	120	485.1	483.73	-	110	455	86	65	-	24	62
