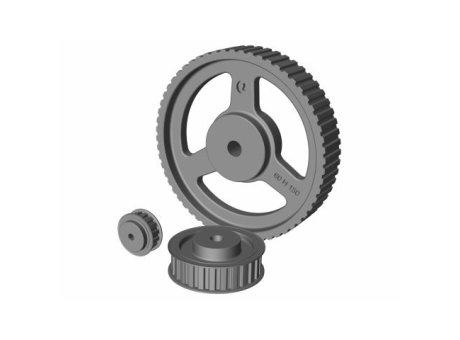

H 100

CAD models

Product selection

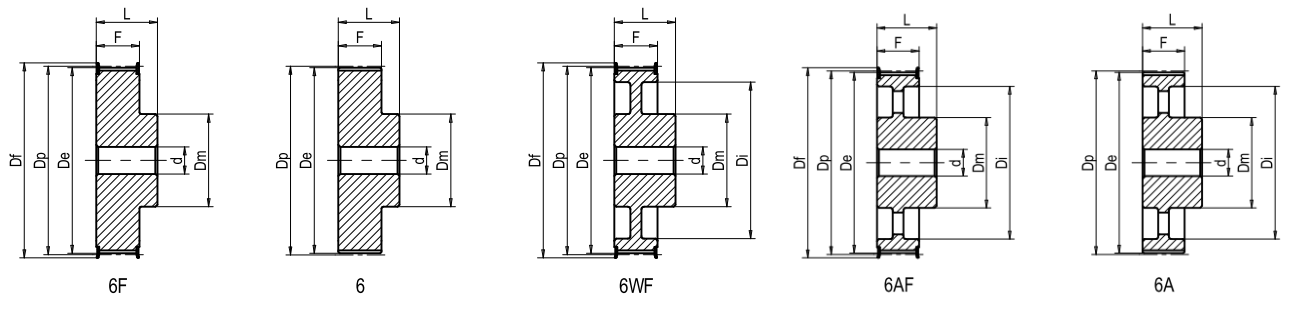

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	L	E	d stock	d max
1	1	19C01410	14 H 100 - 6F	Steel	14	56.6	55.22	63	40	-	31	41	-	10	24
2	2	19C01610	16 H 100 - 6F	Steel	16	64.68	63.31	71	46	-	31	41	-	10	28
3	3	19C01810	18 H 100 - 6F	Steel	18	72.77	71.39	79	54	-	31	41	-	12	32
4	4	19C01910	19 H 100 - 6F	Steel	19	76.81	75.44	83	58	-	31	41	-	12	34
5	5	19C02010	20 H 100 - 6F	Steel	20	80.85	79.48	87	62	-	31	41	-	12	35
6	6	19C02110	21 H 100 - 6F	Steel	21	84.89	83.52	91	67	-	31	41	-	12	38
7	7	19C02210	22 H 100 - 6F	Steel	22	88.94	87.56	93	70	-	31	41	-	12	41
8	8	19C02410	24 H 100 - 6F	Steel	24	97.02	95.65	103	75	-	31	41	-	12	45
9	9	19C02610	26 H 100 - 6CWF	Cast iron	26	105.11	103.73	111	55	84	32	40	8	15	32
10	10	19C02810	28 H 100 - 6CWF	Cast iron	28	113.19	111.82	119	60	88	32	40	8	15	35
11	11	19C03010	30 H 100 - 6CWF	Cast iron	30	121.28	119.9	127	60	96	32	40	8	15	35
12	12	19C03210	32 H 100 - 6WF	Cast iron	32	129.36	127.99	135	70	102	32	40	-	20	40
13	13	19C03610	36 H 100 - 6WF	Cast iron	36	145.53	144.16	152	80	120	32	40	-	20	45
14	14	19C04010	40 H 100 - 6AF	Cast iron	40	161.7	160.33	168	80	136	32	40	-	20	45
15	15	19C04410	44 H 100 - 6AF	Cast iron	44	177.87	176.5	184	80	152	32	40	-	20	45
16	16	19C04810	48 H 100 - 6AF	Cast iron	48	194.04	192.67	200	80	168	32	40	-	20	45
17	17	19C06010	60 H 100 - 6A	Cast iron	60	242.55	241.18	-	80	217	34	45	-	20	45
18	18	19C07210	72 H 100 - 6A	Cast iron	72	291.06	289.69	-	80	262	34	45	-	20	45
19	19	19C08410	84 H 100 - 6A	Cast iron	84	339.57	338.2	-	80	310	34	45	-	20	45
20	20	19C09610	96 H 100 - 6A	Cast iron	96	388.08	386.71	-	80	360	34	45	-	20	45
21	21	19C12010	120 H 100 - 6A	Cast iron	120	485.1	483.73	-	90	455	34	50	-	20	50
