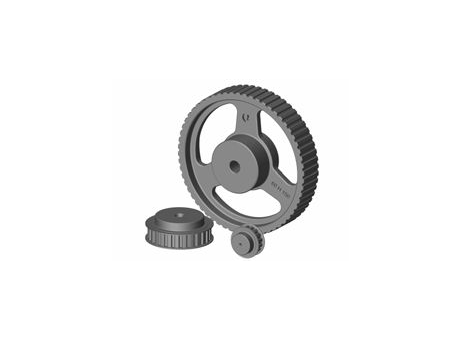

H 100

Manufacturer	POGGI
Description	14 H 100-6F
Part Number	01C01410

CAD models

Request for quotation

Product selection

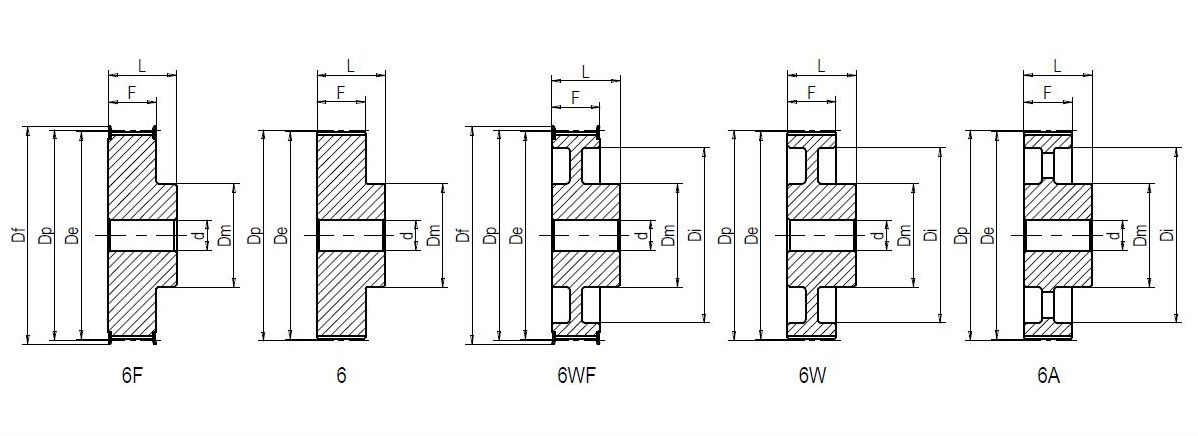

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	LU	d
1	1	01C01410	14 H 100-6F	Steel	14	56,60	55,22	63,0	40,0	-	31,8	45,0	-
2	2	01C01510	15 H 100-6F	Steel	15	60,64	59,27	66,0	45,0	-	31,8	45,0	-
3	3	01C01610	16 H 100-6F	Steel	16	64,68	63,31	71,0	45,0	-	31,8	45,0	-
4	4	01C01710	17 H 100-6F	Steel	17	68,72	67,35	75,0	45,0	-	31,8	45,0	-
5	5	01C01810	18 H 100-6F	Steel	18	72,77	71,39	79,0	55,0	-	31,8	45,0	-
6	6	01C01910	19 H 100-6F	Steel	19	76,81	75,44	83,0	60,0	-	31,8	45,0	-
7	7	01C02010	20 H 100-6F	Steel	20	80,85	79,48	87,0	62,0	-	31,8	45,0	-
8	8	01C02110	21 H 100-6F	Steel	21	84,89	83,52	91,0	65,0	-	31,8	45,0	-
9	9	01C02210	22 H 100-6F	Steel	22	88,94	87,56	93,0	68,0	-	31,8	45,0	-
10	10	01C02310	23 H 100-6F	Steel	23	92,98	91,61	97,0	72,0	-	31,8	45,0	-
11	11	01C02410	24 H 100-6F	Steel	24	97,02	95,65	103,0	72,0	-	31,8	45,0	-
12	12	01C02510	25 H 100-6F	Cast iron	25	101,06	99,69	106,0	72,0	-	31,8	45,0	15,0
13	13	01C02610	26 H 100-6F	Cast iron	26	105,11	103,73	111,0	80,0	-	31,8	45,0	15,0
14	14	01C02710	27 H 100-6F	Cast iron	27	109,15	107,78	115,0	80,0	-	31,8	45,0	15,0
15	15	01C02810	28 H 100-6F	Cast iron	28	113,19	111,82	119,0	80,0	-	31,8	45,0	15,0
16	16	01C02910	29 H 100-6F	Cast iron	29	117,23	115,86	123,0	80,0	-	31,8	45,0	15,0
17	17	01C03010	30 H 100-6F	Cast iron	30	121,28	119,90	127,0	80,0	-	31,8	45,0	15,0
18	18	01C03210	32 H 100-6F	Cast iron	32	129,36	127,99	135,0	80,0	-	31,8	45,0	20,0
19	19	01C03310	33 H 100-6F	Cast iron	33	133,40	132,03	140,0	80,0	-	31,8	45,0	20,0
20	20	01C03410	34 H 100-6F	Cast iron	34	137,45	136,07	143,0	80,0	-	31,8	45,0	20,0
21	21	01C03510	35 H 100-6F	Cast iron	35	141,49	140,12	148,0	80,0	-	31,8	45,0	20,0
22	22	01C03610	36 H 100-6WF	Cast iron	36	145,53	144,16	152,00	80,00	118,00	31,80	45,0	20,0
23	23	01C03810	38 H 100-6WF	Cast iron	38	153,62	152,24	158,00	80,00	126,00	31,80	45,0	20,0
24	24	01C04010	40 H 100-6WF	Cast iron	40	161,70	160,33	168,00	80,00	134,00	31,80	45,0	20,0
25	25	01C04210	42 H 100-6WF	Cast iron	42	169,79	168,41	175,00	80,00	142,00	31,80	45,0	20,0
26	26	01C04410	44 H 100-6WF	Cast iron	44	177,87	176,50	184,00	80,00	150,00	31,80	50,0	20,0
27	27	01C04510	45 H 100-6WF	Cast iron	45	181,91	180,54	192,00	80,00	154,00	31,80	50,0	20,0
28	28	01C04810	48 H 100-6WF	Cast iron	48	194,04	192,67	200,00	90,00	166,00	31,80	50,0	20,0
29	29	01C04910	49 H 100-6W	Cast iron	49	198,08	196,71	-	90,00	170,00	31,80	50,0	20,0
30	30	01C05010	50 H 100-6W	Cast iron	50	202,13	200,75	-	90,00	174,00	31,80	50,0	20,0
31	31	01C05210	52 H 100-6W	Cast iron	52	210,21	208,84	-	90,00	182,00	31,80	50,0	20,0
32	32	01C05810	58 H 100-6A	Cast iron	58	234,47	233,09	-	90,00	207,00	31,80	50,0	20,0
33	33	01C06010	60 H 100-6A	Cast iron	60	242,55	241,18	-	90,00	215,00	31,80	50,0	20,0
34	34	01C07010	70 H 100-6A	Cast iron	70	282,98	281,61	-	100,00	255,00	31,80	55,0	20,0
35	35	01C07210	72 H 100-6A	Cast iron	72	291,06	289,69	-	100,00	263,00	31,80	55,0	18,0
36	36	01C08210	82 H 100-6A	Cast iron	82	331,49	330,12	-	100,00	302,00	31,80	55,0	20,0
37	37	01C08410	84 H 100-6A	Cast iron	84	339,57	338,20	-	100,00	312,00	31,80	55,0	18,0
38	38	01C09410	94 H 100-6A	Cast iron	94	380,00	378,63	-	120,00	351,00	31,80	60,0	20,0
39	39	01C09610	96 H 100-6A	Cast iron	96	388,08	386,71	-	120,00	360,00	31,80	60,0	20,0
40	40	01C10610	106 H 100-6A	Cast iron	106	428,51	427,14	-	120,00	398,00	31,80	60,0	20,0
41	41	01C11610	116 H 100-6A	Cast iron	116	468,93	467,56	-	120,00	435,00	31,80	60,0	20,0
42	42	01C11810	118 H 100-6A	Cast iron	118	477,02	475,65	-	120,00	448,00	31,80	60,0	20,0
43	43	01C12010	120 H 100-6A	Cast iron	120	485,10	483,73	-	120,00	448,00	31,80	60,0	20,0
44	44	01C15010	150 H 100-6A	Cast iron	150	606,38	605,01	-	120,00	575,00	31,80	60,0	20,0
45	45	01C15210	152 H 100-6A	Cast iron	152	614,47	613,09	-	120,00	584,00	31,80	60,0	20,0
46	46	01C15410	154 H 100-6A	Cast iron	154	622,55	621,18	-	120,00	594,00	31,80	60,0	20,0
47	47	01C15610	156 H 100-6A	Cast iron	156	630,64	629,26	-	120,00	594,00	31,80	60,0	20,0
