8M 30

Manufacturer	POGGI
Description	22 8M 30 - 6F
Part Number	32G022030

CAD models

Request for quotation

Product selection

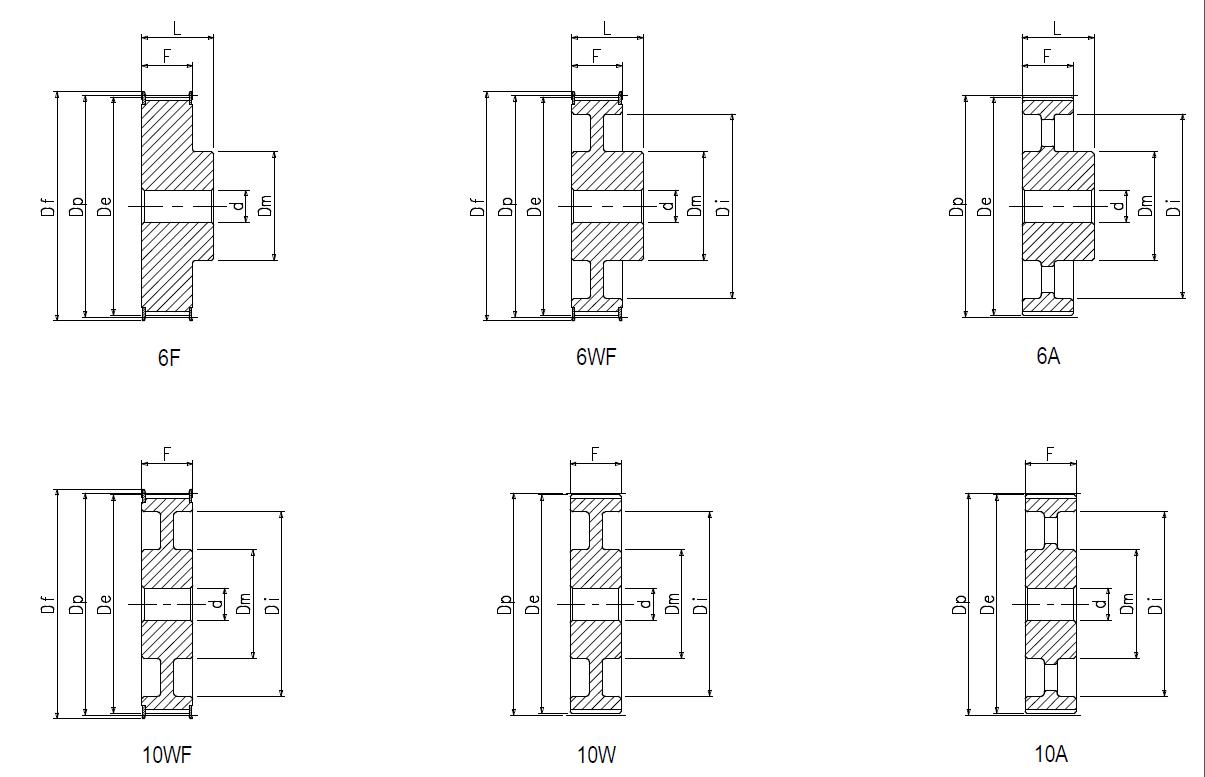

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	LU	d
1	1	32G022030	22 8M 30 - 6F	Steel	22	56,02	54,65	60,0	43,0	_	38,0	48,0	12,0
2	2	32G024030	24 8M 30 - 6F	Steel	24	61,12	59,75	66,0	45,0	_	38,0	48,0	12,0
3	3	32G026030	26 8M 30 - 6F	Steel	26	66,21	64,84	71,0	50,0	_	38,0	48,0	12,0
4	4	32G028030	28 8M 30 - 6F	Steel	28	71,30	70,08	75,0	50,0	_	38,0	48,0	15,0
5	5	32G030030	30 8M 30 - 6F	Steel	30	76,39	75,13	83,0	55,0	_	38,0	48,0	15,0
6	6	32G032030	32 8M 30 - 6F	Steel	32	81,49	80,16	87,0	60,0	_	38,0	48,0	15,0
7	7	32G034030	34 8M 30 - 6F	Steel	34	86,58	85,22	91,0	70,0	_	38,0	48,0	15,0
8	8	32G036030	36 8M 30 - 6F	Steel	36	91,67	90,30	98,5	70,0	_	38,0	48,0	15,0
9	9	32G038030	38 8M 30 - 6F	Steel	38	96,77	95,39	103,0	75,0	_	38,0	48,0	15,0
10	10	32G040030	40 8M 30 - 6F	Cast iron	40	101,86	100,49	106,0	75,0	_	38,0	48,0	15,0
11	11	32G044030	44 8M 30 - 6F	Cast iron	44	112,05	110,67	119,0	75,0	_	38,0	48,0	15,0
12	12	32G048030	48 8M 30 - 6F	Cast iron	48	122,23	120,86	127,0	75,0	_	38,0	48,0	15,0
13	13	32G056030	56 8M 30 - 6WF	Cast iron	56	142,60	141,23	148,0	90,0	117,0	38,0	48,0	15,0
14	14	32G064030	64 8M 30 - 6WF	Cast iron	64	162,97	161,60	168,0	90,0	137,0	38,0	48,0	15,0
15	15	32G072030	72 8M 30 - 6WF	Cast iron	72	183,35	181,97	192,0	95,0	158,0	38,0	48,0	15,0
16	16	32G080030	80 8M 30 - 6A	Cast iron	80	203,72	202,35	-	100,0	180,0	38,0	48,0	15,0
17	17	32G090030	90 8M 30 - 6A	Cast iron	90	229,18	227,81	-	100,0	204,0	38,0	48,0	15,0
18	18	32G112030	112 8M 30 - 6A	Cast iron	112	285,21	283,83	-	100,0	260,0	38,0	48,0	18,0
19	19	32G144030	144 8M 30 - 6A	Cast iron	144	366,69	365,32	-	100,0	341,0	38,0	48,0	20,0
20	20	32G168030	168 8M 30 - 6A	Cast iron	168	427,81	426,44	-	100,0	402,0	38,0	48,0	20,0
21	21	32G192030	192 8M 30 - 6A	Cast iron	192	488,92	487,55	-	100,0	460,0	38,0	48,0	20,0

Documentation

Catalog Data Sheet
