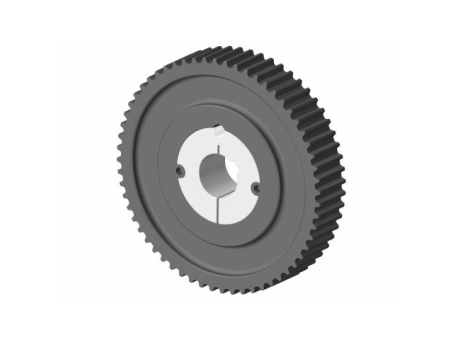

8M 21

CAD models

Product selection

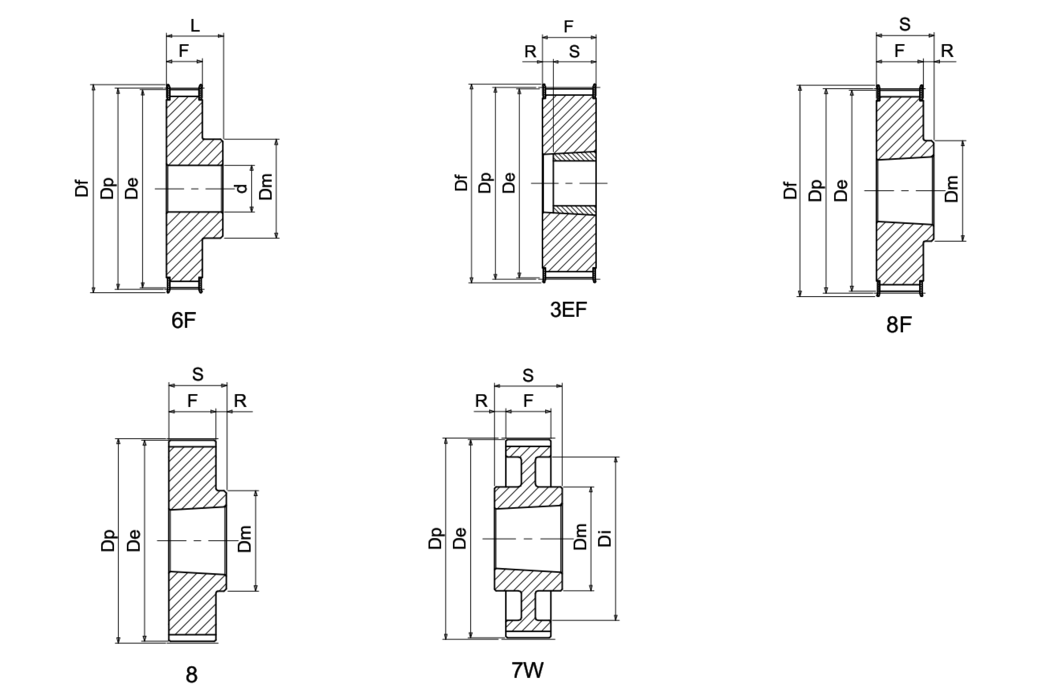

Index	Selector	Part Number	Description	Bush	Max. Bore	Dp	De	Df	Dm	Di	F	L	d	S	R
1	1	60M022021	PCGT 22 8M 21-6F	-	-	56.02	54.42	60	43	-	30	42	12	-	-
2	2	60M025021	PCGT PL 25 8M 21-3EF	1108	28	63.66	62.06	70	-	-	30	-	-	22	8
3	3	60M028021	PCGT PL 28 8M 21-3EF	1210	32	71.3	69.7	75	-	-	30	-	-	25	5
4	4	60M030021	PCGT PL 30 8M 21-3EF	1210	32	76.39	74.79	83	-	-	30	-	-	25	5
5	5	60M032021	PCGT PL 32 8M 21-3EF	1610	42	81.49	79.89	87	-	-	30	-	-	25	5
6	6	60M034021	PCGT PL 34 8M 21-3EF	1610	42	86.58	84.98	91	-	-	30	-	-	25	5
7	7	60M036021	PCGT PL 36 8M 21-3EF	1610	42	91.67	90.07	98.5	-	-	30	-	-	25	5
8	8	60M038021	PCGT PL 38 8M 21-3EF	1610	42	96.77	95.17	103	-	-	30	-	-	25	5
9	9	60M040021	PCGT PL 40 8M 21-3EF	1610	42	101.86	100.26	106	-	-	30	-	-	25	5
10	10	60M045021	PCGT PL 45 8M 21-8F	2012	50	114.59	112.99	120	92	-	30	-	-	32	2
11	11	60M048021	PCGT PL 48 8M 21-8F	2012	50	122.23	120.63	127	103	-	30	-	-	32	2
12	12	60M050021	PCGT PL 50 8M 21-8F	2012	50	127.32	125.72	131	104	-	30	-	-	32	2
13	13	60M056021	PCGT PL 56 8M 21-8F	2012	50	142.6	141	148	111	-	30	-	-	32	2
14	14	60M060021	PCGT PL 60 8M 21-8F	2517	60	152.79	151.19	158	124	-	30	-	-	45	15
15	15	60M064021	PCGT PL 64 8M 21-8F	2517	60	162.97	161.37	168	124	-	30	-	-	45	15
16	16	60M075021	PCGT PL 75 8M 21-8	2517	60	190.99	189.39	-	124	-	30	-	-	45	15
17	17	60M080021	PCGT PL 80 8M 21-8	2517	60	203.72	202.12	-	124	-	30	-	-	45	15
18	18	60M090021	PCGT PL 90 8M 21-7W	2517	60	229.18	227.58	-	124	198	30	-	-	45	7.5
19	19	60M112021	PCGT PL112 8M 21-7W	2517	60	285.21	283.61	-	124	253	30	-	-	45	7.5
20	20	60M140021	PCGT PL140 8M 21-7W	3020	75	356.51	354.91	-	150	324	30	-	-	51	10.5
