6045

CAD models

Product selection

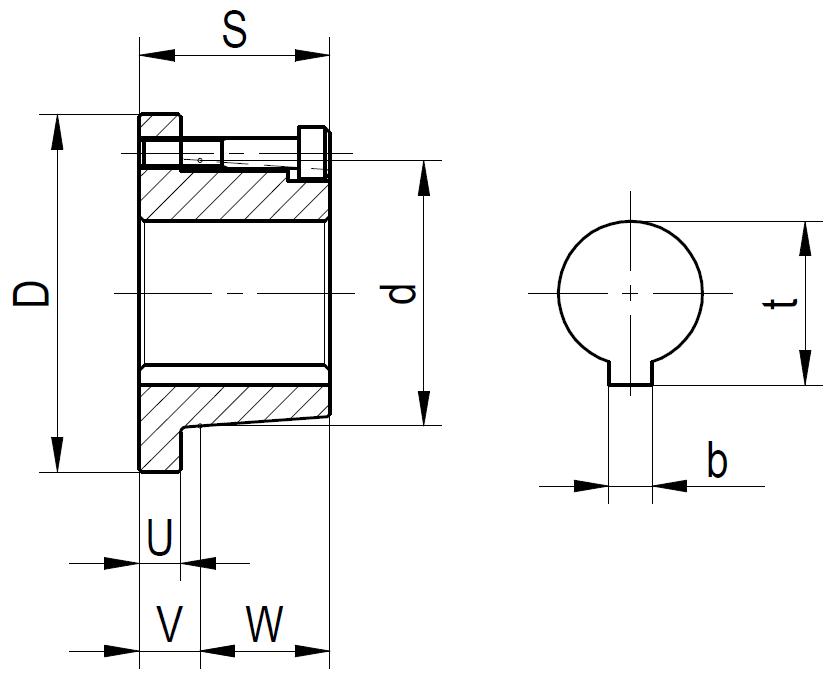

Index	Selector	Part Number	Description	Material	d	D	Bore mm	S	U	V	W	b	t
1	1	140604000	6045 A 00	Cast iron	80	110	-	63	13	18	45	-	-
2	2	140604018	6045 A 18	Cast iron	80	110	18	63	13	18	45	6	20,8
3	3	140604019	6045 A 19	Cast iron	80	110	19	63	13	18	45	6	21,8
4	4	140604020	6045 A 20	Cast iron	80	110	20	63	13	18	45	6	22,8
5	5	140604022	6045 A 22	Cast iron	80	110	22	63	13	18	45	6	24,8
6	6	140604024	6045 A 24	Cast iron	80	110	24	63	13	18	45	8	27,3
7	7	140604025	6045 A 25	Cast iron	80	110	25	63	13	18	45	8	28,3
8	8	140604026	6045 A 26	Cast iron	80	110	26	63	13	18	45	8	29,3
9	9	140604028	6045 A 28	Cast iron	80	110	28	63	13	18	45	8	31,3
10	10	140604030	6045 A 30	Cast iron	80	110	30	63	13	18	45	8	33,3
11	11	140604032	6045 A 32	Cast iron	80	110	32	63	13	18	45	10	35,3
12	12	140604035	6045 A 35	Cast iron	80	110	35	63	13	18	45	10	38,3
13	13	140604038	6045 A 38	Cast iron	80	110	38	63	13	18	45	10	41,3
14	14	140604040	6045 A 40	Cast iron	80	110	40	63	13	18	45	12	43,3
15	15	140604042	6045 A 42	Cast iron	80	110	42	63	13	18	45	12	45,3
16	16	140604045	6045 A 45	Cast iron	80	110	45	63	13	18	45	14	48,8
17	17	140604048	6045 A 48	Cast iron	80	110	48	63	13	18	45	14	51,8
18	18	140604050	6045 A 50	Cast iron	80	110	50	63	13	18	45	14	53,8
19	19	140604055	6045 A 55	Cast iron	80	110	55	63	13	18	45	16	59,3
20	20	140604060	6045 A 60	Cast iron	80	110	60	63	13	18	45	18	64,4
21	21	140604065	6045 A 65	Cast iron	80	110	65	63	13	18	45	18	66,9
