5MR 25

CAD models

Product selection

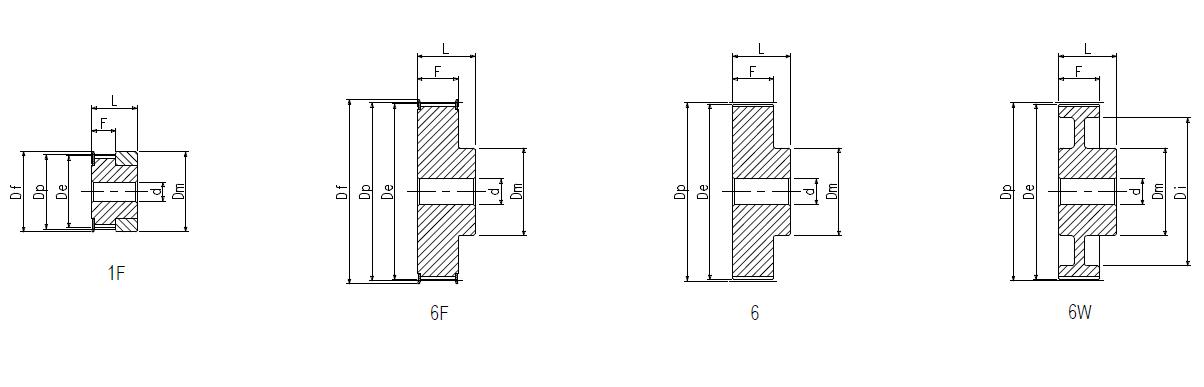

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	LU	d
1	1	32E012025	12 5MR 25 - 6F	Steel	12	19,10	17,96	23,0	13,0		30,0	36,0	4,0
2	2	32E014025	14 5MR 25 - 6F	Steel	14	22,28	21,14	25,0	14,0		30,0	36,0	6,0
3	3	32E015025	15 5MR 25 - 6F	Steel	15	23,87	22,73	28,0	16,0		30,0	36,0	6,0
4	4	32E016025	16 5MR 25 - 6F	Steel	16	25,46	24,32	28,0	16,5		30,0	36,0	6,0
5	5	32E018025	18 5MR 25 - 6F	Steel	18	28,65	27,51	32,0	20,0		30,0	36,0	6,0
6	6	32E020025	20 5MR 25 - 6F	Steel	20	31,83	30,69	36,0	23,0		30,0	36,0	6,0
7	7	32E021025	21 5MR 25 - 6F	Steel	21	33,42	32,28	38,0	24,0		30,0	38,0	6,0
8	8	32E022025	22 5MR 25 - 6F	Steel	22	35,01	33,87	38,0	25,5		30,0	38,0	6,0
9	9	32E024025	24 5MR 25 - 6F	Steel	24	38,20	37,06	42,0	27,0		30,0	38,0	6,0
10	10	32E026025	26 5MR 25 - 6F	Steel	26	41,38	40,24	44,0	30,0		30,0	38,0	6,0
11	11	32E028025	28 5MR 25 - 6F	Steel	28	44,56	43,42	48,0	30,5		30,0	38,0	6,0
12	12	32E030025	30 5MR 25 - 6F	Steel	30	47,75	46,60	51,0	35,0		30,0	38,0	6,0
13	13	32E032025	32 5MR 25 - 6F	Steel	32	50,93	49,79	54,0	38,0		30,0	38,0	8,0
14	14	32E036025	36 5MR 25 - 6F	Steel	36	57,30	56,16	60,0	38,0		30,0	38,0	8,0
15	15	32E040025	40 5MR 25 - 6F	Steel	40	63,66	62,52	71,0	38,0		30,0	38,0	8,0
16	16	32E044025	44 5MR 25 - 6	Aluminium	44	70,03	68,89	-	38,0		30,0	40,0	8,0
17	17	32E048025	48 5MR 25 - 6W	Aluminium	48	76,39	75,25	-	38,0	61,0	30,0	40,0	8,0
18	18	32E060025	60 5MR 25 - 6W	Aluminium	60	95,49	94,35	-	50,0	80,0	30,0	40,0	8,0
19	19	32E072025	72 5MR 25 - 6W	Aluminium	72	114,59	113,45	-	50,0	100,0	30,0	40,0	8,0
