3030

CAD models

Product selection

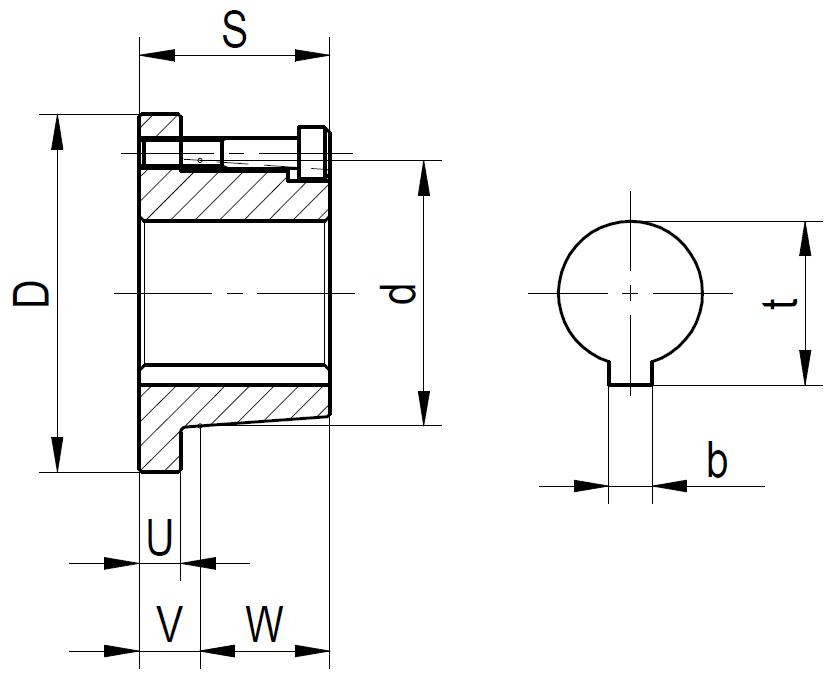

Index	Selector	Part Number	Description	Material	d	D	Bore mm	S	U	V	W	b	t
1	1	140303000	3030 A 00	Cast iron	45	65	-	45	11	15	30	-	-
2	2	140303011	3030 A 11	Cast iron	45	65	11	45	11	15	30	4	12,8
3	3	140303012	3030 A 12	Cast iron	45	65	12	45	11	15	30	4	13,8
4	4	140303014	3030 A 14	Cast iron	45	65	14	45	11	15	30	5	16,3
5	5	140303015	3030 A 15	Cast iron	45	65	15	45	11	15	30	5	17,3
6	6	140303016	3030 A 16	Cast iron	45	65	16	45	11	15	30	5	18,3
7	7	140303018	3030 A 18	Cast iron	45	65	18	45	11	15	30	6	20,8
8	8	140303019	3030 A 19	Cast iron	45	65	19	45	11	15	30	6	21,8
9	9	140303020	3030 A 20	Cast iron	45	65	20	45	11	15	30	6	22,8
10	10	140303022	3030 A 22	Cast iron	45	65	22	45	11	15	30	6	24,8
11	11	140303024	3030 A 24	Cast iron	45	65	24	45	11	15	30	8	27,3
12	12	140303025	3030 A 25	Cast iron	45	65	25	45	11	15	30	8	28,3
13	13	140303026	3030 A 26	Cast iron	45	65	26	45	11	15	30	8	29,3
14	14	140303028	3030 A 28	Cast iron	45	65	28	45	11	15	30	8	31,3
15	15	140303030	3030 A 30	Cast iron	45	65	30	45	11	15	30	8	33,3
16	16	140303032	3030 A 32	Cast iron	45	65	32	45	11	15	30	10	35,3
17	17	140303035	3030 A 35	Cast iron	45	65	35	45	11	15	30	10	37,2
