14M 40

Manufacturer	POGGI
Description	28 14M 40 - 6F
Part Number	32I028040

CAD models

Request for quotation

Product selection

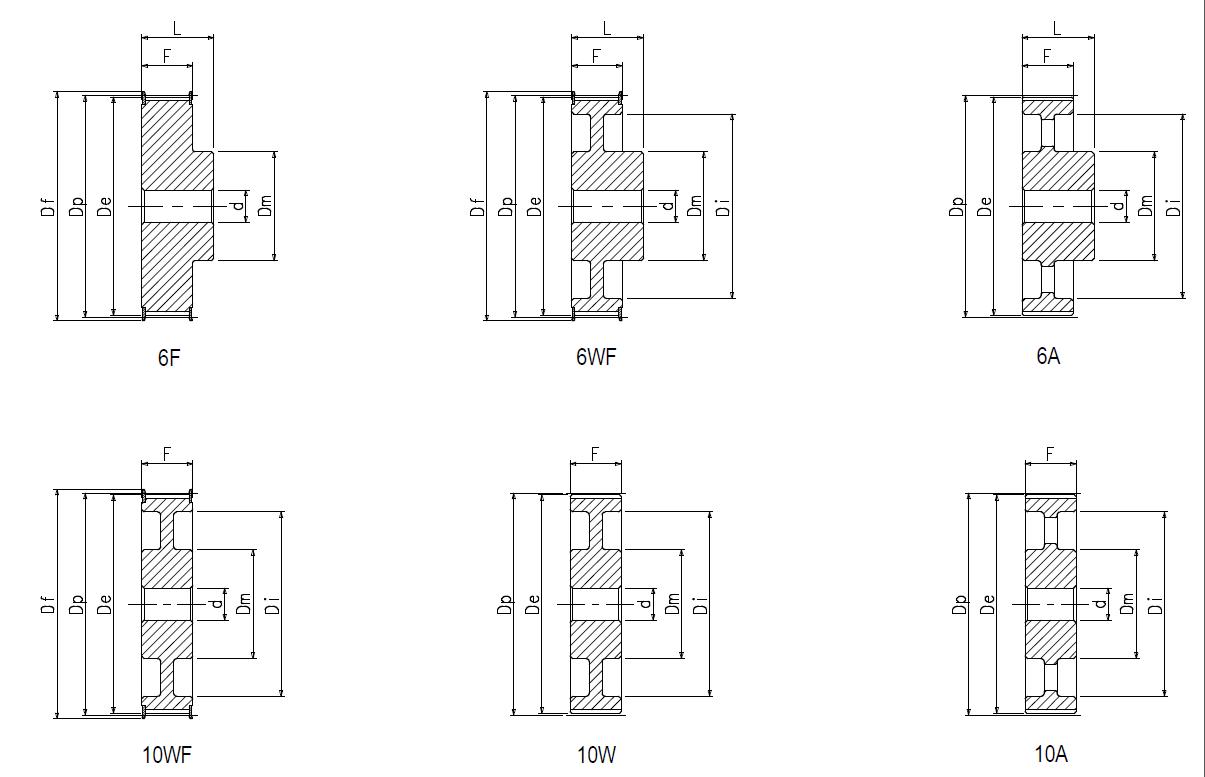

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	LU	d
1	1	32I028040	28 14M 40 - 6F	Cast iron	28	124,78	122,12	127,0	100,0	_	54,0	69,0	24,0
2	2	32I029040	29 14M 40 - 6F	Cast iron	29	129,23	126,57	138,0	100,0	_	54,0	69,0	24,0
3	3	32I030040	30 14M 40 - 6F	Cast iron	30	133,69	130,99	138,0	100,0	_	54,0	69,0	24,0
4	4	32I032040	32 14M 40 - 6F	Cast iron	32	142,60	139,88	154,0	100,0	_	54,0	69,0	24,0
5	5	32I034040	34 14M 40 - 6F	Cast iron	34	151,52	148,79	160,0	100,0	_	54,0	69,0	24,0
6	6	32I036040	36 14M 40 - 6F	Cast iron	36	160,43	157,68	168,0	100,0	_	54,0	69,0	24,0
7	7	32I038040	38 14M 40 - 6F	Cast iron	38	169,34	166,60	183,0	120,0	_	54,0	69,0	24,0
8	8	32I040040	40 14M 40 - 6F	Cast iron	40	178,25	175,49	188,0	120,0	_	54,0	69,0	24,0
9	9	32I044040	44 14M 40 - 6F	Cast iron	44	196,08	193,28	211,0	120,0	_	54,0	69,0	24,0
10	10	32I048040	48 14M 40 - 6WF	Cast iron	48	213,90	211,11	226,0	135,0	172,0	54,0	69,0	24,0
11	11	32I056040	56 14M 40 - 6WF	Cast iron	56	249,55	246,76	256,0	135,0	207,0	54,0	69,0	28,0
12	12	32I064040	64 14M 40 - 6WF	Cast iron	64	285,21	282,41	296,0	135,0	242,0	54,0	69,0	28,0
13	13	32I072040	72 14M 40 - 6A	Cast iron	72	320,86	318,06	-	135,0	278,0	54,0	69,0	28,0
14	14	32I080040	80 14M 40 - 6A	Cast iron	80	356,51	353,71	-	135,0	314,0	54,0	69,0	28,0
15	15	32I090040	90 14M 40 - 6A	Cast iron	90	401,07	398,28	-	135,0	358,0	54,0	69,0	28,0
16	16	32I112040	112 14M 40 - 6A	Cast iron	112	499,11	496,32	-	135,0	456,0	54,0	69,0	28,0
17	17	32I144040	144 14M 40 - 6A	Cast iron	144	641,71	638,92	-	135,0	600,0	54,0	69,0	28,0
18	18	32I168040	168 14M 40 - 6A	Cast iron	168	748,66	745,87	-	135,0	706,0	54,0	69,0	28,0
19	19	32I192040	192 14M 40 - 6A	Cast iron	192	855,62	852,82	-	135,0	813,0	54,0	69,0	28,0
20	20	32I216040	216 14M 40 - 6A	Cast iron	216	962,57	959,76	-	150,0	920,0	54,0	69,0	28,0
