By PINET INDUSTRIE

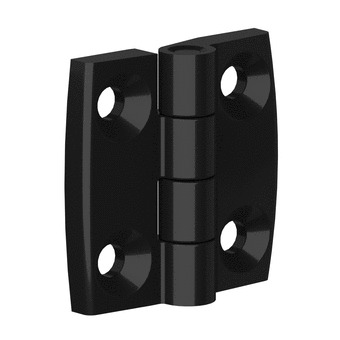

Square design zinc die-cast hinge

Manufacturer	PINET INDUSTRIE
Description	Square design zinc die-cast hinge
Part Number	72-1-4438
Weight (g)	48
Finish	black
Material	zinc die-cast

CAD models

Request for quotation

Product selection

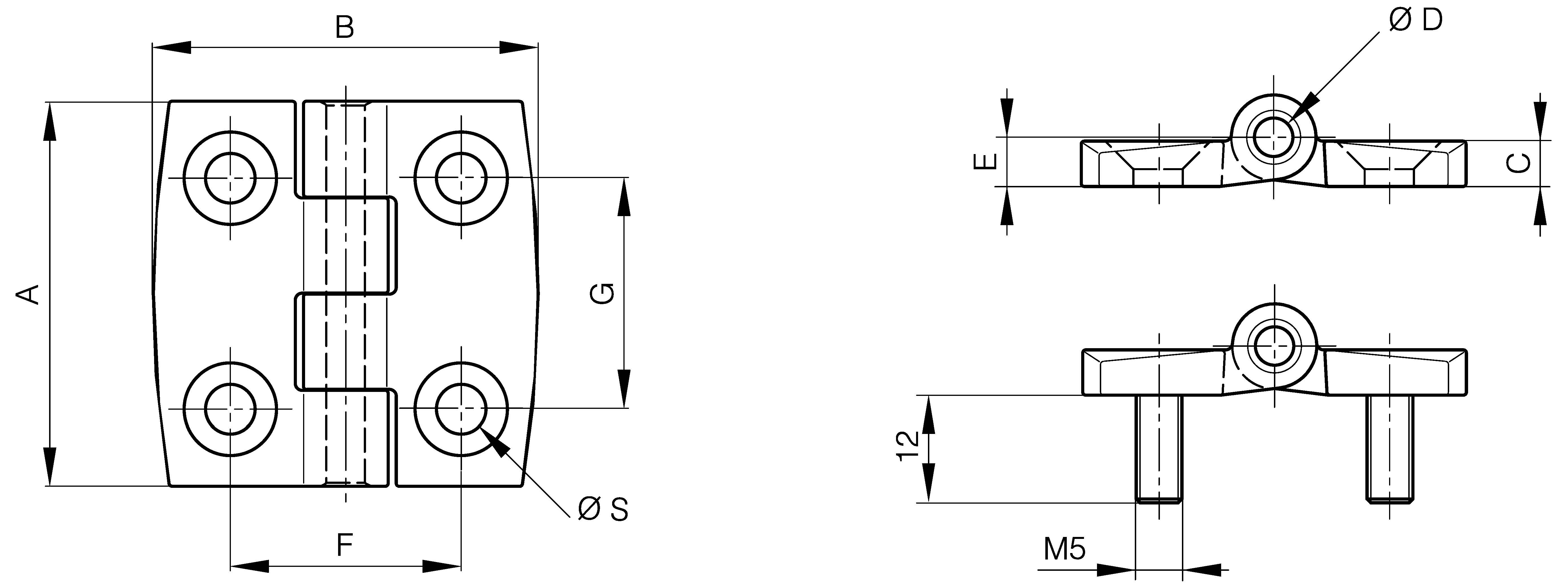

Index	Selector	Part Number	Description	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	S (mm)	Weight (g)	Finish	Material	Note
1	1	72-1-4438	Square design zinc die-cast hinge	40	40	5,2	4	5,7	25	25	5,3	48	black	zinc die-cast	drilled
2	2	72-1-4439	Square design zinc die-cast hinge	40	40	5.2	4	5.7	25	25	5.3	62	black	zinc die-cast	with studs
3	3	72-1-4440	Square design zinc die-cast hinge	50	50	5.9	5	6.4	30	30	6.4	88	black	zinc die-cast	drilled

Contact the supplier

PINET INDUSTRIE

Manufacturer of complete hinge, joint, bolting devices and fastening systems
