VDFK 4 BD:L1

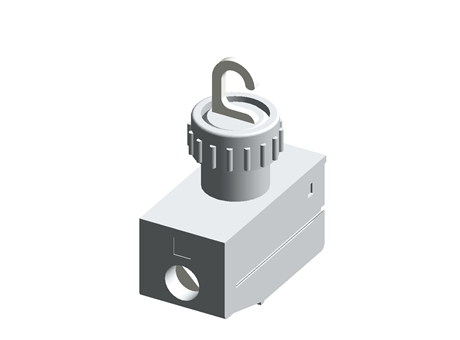

Panel feed-through terminal block

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Panel feed-through terminal block
Internal article number	1716498
GTIN (EAN) code	4055626465050
width	10
height	20.5
rated voltage	500
depth	25.5

Application standards	IEC 60947-7-1
Connection type (1)	Screw connection with tension sleeve
Max. line cross section, flexible	4
Max. line cross section, rigid	6
Min. line cross section, flexible	0.2
Min. line cross section, rigid	0.2
material of insulation	PA
certificate/approval	CSA, cULus Recognized

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	rated voltage	depth	Application standards	Connection type (1)	Max. line cross section, flexible	Max. line cross section, rigid	Min. line cross section, flexible	Min. line cross section, rigid	material of insulation	certificate/approval
1	1	1716498	Panel feed-through terminal block	4055626465050	10	20.5	500	25.5	IEC 60947-7-1	Screw connection with tension sleeve	4	6	0.2	0.2	PA	CSA, cULus Recognized

Product Description

Panel feed-through terminal block, connection method: Screw connection with tension sleeve, Solder connection, number of positions: 1, load current: 32 A, cross section: 0.2 mm² - 6 mm², connection direction of the conductor to plug-in direction: 0 °, width: 10 mm, color: gray
