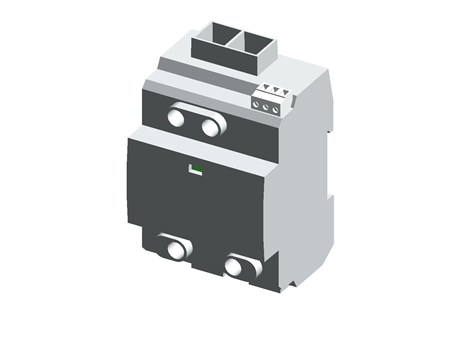

VAL-MB-T2-1000DC-2+V-R

Type 2 surge arrester

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Type 2 surge arrester
Internal article number	1376162
GTIN (EAN) code	4063151740320
type of electrical terminal	Screw connection
Insulation stripped length	16
Assembly type	Top-hat rail TH35
max. connectable conductor cross-section multiple wire	35

min. connectable conductor cross-section multiple wire	2.5
Degree of protection (IP), mounted	IP20
Net weight	531.1
min. relative humidity (operation)	5
max. relative humidity (operation)	95
SPD type based on IEC 61643	T2
nominal discharge current (8/20) µs (DC- - PE)	20
nominal discharge current (8/20) µs (DC+ - PE)	20

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	type of electrical terminal	Insulation stripped length	Assembly type	max. connectable conductor cross-section multiple wire	min. connectable conductor cross-section multiple wire	Degree of protection (IP), mounted	Net weight	min. relative humidity (operation)	max. relative humidity (operation)	SPD type based on IEC 61643	nominal discharge current (8/20) µs (DC- - PE)	nominal discharge current (8/20) µs (DC+ - PE)
1	1	1376162	Type 2 surge arrester	4063151740320	Screw connection	16	Top-hat rail TH35	35	2.5	IP20	531.1	5	95	T2	20	20

Product Description

Surge protective device, acc. to type 2/class II, for grounded, unipolar DC supply systems up to 1100 V DC, for DIN rail mounting, with remote indication contact.
