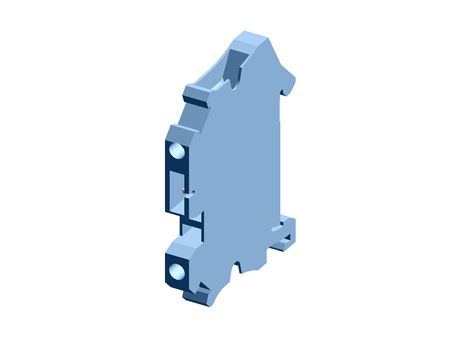

UT 4-TG BU

Disconnect terminal block

Manufacturer	Phoenix Contact
Manufacturer product designation	Disconnect terminal block
product article number of manufacturer	3073283
GTIN	4046356334891
width	6.2
height	57.8
type of enveloping body	enveloping body cuboid
depth	46.85

number of the executions of the housing parts	0
mounting design	Assembly
net weight	0.01205
rated voltage	500
nominal cross section	4
flammability rating of the insulating material (based on UL 94)	V0
max. connectable conductor cross-section multiple wire	1.5
Max. line cross section, rigid	6

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	width	height	type of enveloping body	depth	number of the executions of the housing parts	mounting design	net weight	rated voltage	nominal cross section	flammability rating of the insulating material (based on UL 94)	max. connectable conductor cross-section multiple wire	Max. line cross section, rigid
1	1	3073283	Disconnect terminal block	4046356334891	6.2	57.8	enveloping body cuboid	46.85	0	Assembly	0.01205	500	4	V0	1.5	6

Product Description

Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, Thermal continuous current Ith: 20 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: blue
