UT 4/ 1P BU

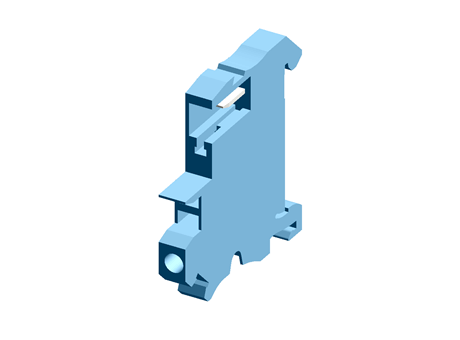

Feed-through terminal block

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Feed-through terminal block
Internal article number	3045596
GTIN (EAN) code	4046356083102
width	6.2
height	47.6
nominal cross section	4
depth	47.5

flammability rating of the insulating material (based on UL 94)	V0
Closing plate required	True
Connection type (1)	Screw/plug-in connection
Power loss per pole, current-dependent [PlIp]	1.02
Max. line cross section, flexible	6
Max. line cross section, rigid	6
Min. line cross section, flexible	0.14
Min. line cross section, rigid	0.14

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	nominal cross section	depth	flammability rating of the insulating material (based on UL 94)	Closing plate required	Connection type (1)	Power loss per pole, current-dependent [PlIp]	Max. line cross section, flexible	Max. line cross section, rigid	Min. line cross section, flexible	Min. line cross section, rigid
1	1	3045596	Feed-through terminal block	4046356083102	6.2	47.6	4	47.5	V0	True	Screw/plug-in connection	1.02	6	6	0.14	0.14

Product Description

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 2, connection method: Screw/plug-in connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: blue
