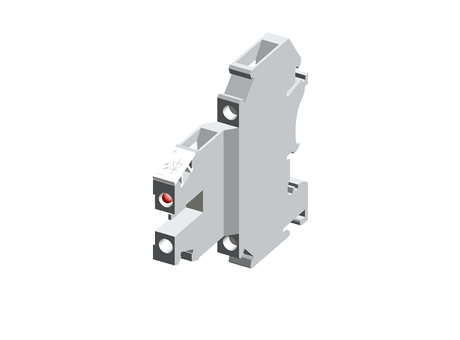

UKK 5-LA 24 RD/U-O

Component terminal block

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Component terminal block
Internal article number	2791320
GTIN (EAN) code	4017918072452
width	6.2
height	56
nominal cross section	4
depth	62

flammability rating of the insulating material (based on UL 94)	V0
Closing plate required	True
Connection type (1)	Screw connection
Max. line cross section, flexible	4
Max. line cross section, rigid	4
Min. line cross section, flexible	0.2
Min. line cross section, rigid	0.2
max. connectable conductor cross-section multiple wire	1.5

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	nominal cross section	depth	flammability rating of the insulating material (based on UL 94)	Closing plate required	Connection type (1)	Max. line cross section, flexible	Max. line cross section, rigid	Min. line cross section, flexible	Min. line cross section, rigid	max. connectable conductor cross-section multiple wire
1	1	2791320	Component terminal block	4017918072452	6.2	56	4	62	V0	True	Screw connection	4	4	0.2	0.2	1.5

Product Description

Component terminal block, nominal current: 32 A, 1 level, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, NS 32, color: gray
