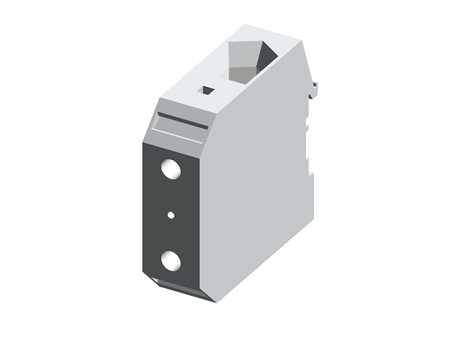

UKH 95

High-current terminal block

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	High-current terminal block
Internal article number	3010013
GTIN (EAN) code	4017918091835
width	25
height	83
rated voltage	1000
nominal cross section	95

depth	90
flammability rating of the insulating material (based on UL 94)	V0
Closing plate required	False
Connection type (1)	Screw connection
Power loss per pole, current-dependent [PlIp]	7.54
Max. line cross section, flexible	95
Max. line cross section, rigid	95
Min. line cross section, flexible	35

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	rated voltage	nominal cross section	depth	flammability rating of the insulating material (based on UL 94)	Closing plate required	Connection type (1)	Power loss per pole, current-dependent [PlIp]	Max. line cross section, flexible	Max. line cross section, rigid	Min. line cross section, flexible
1	1	3010013	High-current terminal block	4017918091835	25	83	1000	95	90	V0	False	Screw connection	7.54	95	95	35

Product Description

High-current terminal block, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, connection method: Screw connection, Rated cross section: 95 mm², cross section: 25 mm² - 95 mm², mounting type: NS 35/15, NS 32, NS 35/7,5, NS 35/15-2,3, color: gray
