UC1-TM 6 RD

Marker for terminal blocks

Manufacturer	Phoenix Contact
Manufacturer product designation	Marker for terminal blocks
product article number of manufacturer	0828190
GTIN	4046356480383
width	5.55
height	9.7
Without halogens	True
type of enveloping body	enveloping body cuboid

depth	3.13
number of the executions of the housing parts	0
mounting design	Assembly
net weight	0.01182
material	PA
flammability rating of the insulating material (based on UL 94)	V2
color	red
Grid dimensions	6

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	width	height	Without halogens	type of enveloping body	depth	number of the executions of the housing parts	mounting design	net weight	material	flammability rating of the insulating material (based on UL 94)	color	Grid dimensions
1	1	0828190	Marker for terminal blocks	4046356480383	5.55	9.7	True	enveloping body cuboid	3.13	0	Assembly	0.01182	PA	V2	red	6

Product Description

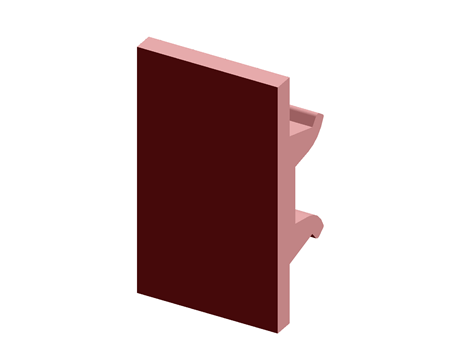

Marker for terminal blocks, Sheet, red, unlabeled, can be labeled with: BLUEMARK ID, BLUEMARK ID COLOR, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: latching, for terminal block width: 6 mm, Number of individual labels: 80, text field height: 9.7 mm, text field width: 5.55 mm
