TMC 71D 40A

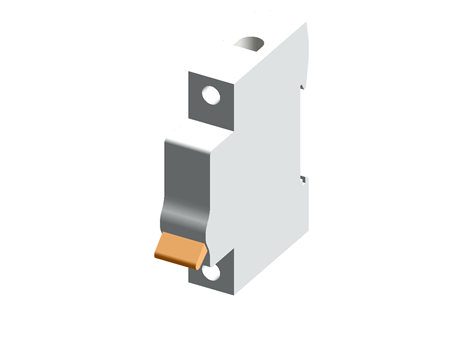

Miniature Circuit Breaker

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Miniature Circuit Breaker
Internal article number	1020056
GTIN (EAN) code	4055626509396
width	17.6
height	84.3
Assembly type	NS 35/...
depth	75.9

flammability rating of the insulating material (based on UL 94)	V0
Pole number	1
Contact design	none
min. operating voltage	277
Nominal current	40
remote signaling contact present	False
Fuse type	D
Active current limitation	0

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	Assembly type	depth	flammability rating of the insulating material (based on UL 94)	Pole number	Contact design	min. operating voltage	Nominal current	remote signaling contact present	Fuse type	Active current limitation
1	1	1020056	Miniature Circuit Breaker	4055626509396	17.6	84.3	NS 35/...	75.9	V0	1	none	277	40	False	D	0

Product Description

Miniature Circuit Breaker, 1-position, use: Supplementary Protector (UL 1077), for protection against overcurrent up to a short-circuit current of 7.5 kA. Supplementary protector; OC; UG- EA,B,D., tripping characteristic: D, mounting type: NS 35/..., rated current: 40 A
