SRDK 6

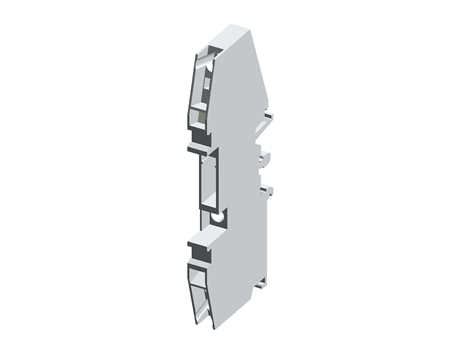

Feed-through terminal block

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Feed-through terminal block
Internal article number	3029973
GTIN (EAN) code	4046356172578
width	8.2
height	113
rated voltage	400
nominal cross section	6

depth	49
flammability rating of the insulating material (based on UL 94)	V0
Closing plate required	True
Connection type (1)	spring-cage connection
Power loss per pole, current-dependent [PlIp]	1.31
Max. line cross section, flexible	6
Max. line cross section, rigid	10
Min. line cross section, flexible	0.2

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	rated voltage	nominal cross section	depth	flammability rating of the insulating material (based on UL 94)	Closing plate required	Connection type (1)	Power loss per pole, current-dependent [PlIp]	Max. line cross section, flexible	Max. line cross section, rigid	Min. line cross section, flexible
1	1	3029973	Feed-through terminal block	4046356172578	8.2	113	400	6	49	V0	True	spring-cage connection	1.31	6	10	0.2

Product Description

Feed-through terminal block, nom. voltage: 400 V, nominal current: 41 A, connection method: Spring-cage connection, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², mounting: NS 35/7,5, NS 35/15, color: gray
