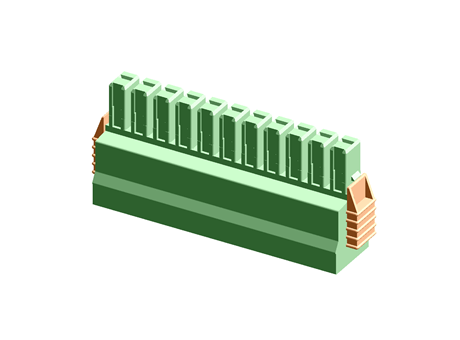

SPC 5/11-STCL-7,62

PCB connector

Manufacturer Phoenix Contact
Manufacturer product designation PCB connector
product article number of manufacturer 1718575
GTIN 4046356175241
width 91.82
height 19.8
number of the executions of the housing parts 0
net weight 0.0532
depth 38.45
certificate/approval IEC 61984
Application standards IEC 61984
flammability rating of the insulating material (based on UL 94) V0
Max. line cross section, rigid 10
Min. line cross section, rigid 0.2
Max. line cross section, flexible 6
Min. line cross section, flexible 0.2
CAD models
Request for quotation
Please make sure this software has been installed.

Product selection

Product Description

PCB connector, nominal cross section: 6 mm², color: green, nominal current: 32 A, rated voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Socket, number of potentials: 11, number of rows: 1, number of positions: 11, number of connections: 11, product range: SPC 5/..-STCL, pitch: 7.62 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 5, locking: Clip locking, mounting method: Click & Lock latching slide, type of packaging: packed in cardboard
