SACC-P12FR-4PL-CM SH

Connector

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Connector
Internal article number	1438172
GTIN (EAN) code	4063151814885
rated voltage	48
flammability rating of the insulating material (based on UL 94)	V0
PE connection present	False
certificate/approval	not available

shielded	True
Status display present	False
Areas of application for signal and data transmission	None
Degree of protection (IP), mounted	IP65
rated current	4
Pole number	4
Material of the contact coat	Nickel
Coding (head 1)	A-coded

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	rated voltage	flammability rating of the insulating material (based on UL 94)	PE connection present	certificate/approval	shielded	Status display present	Areas of application for signal and data transmission	Degree of protection (IP), mounted	rated current	Pole number	Material of the contact coat	Coding (head 1)
1	1	1438172	Connector	4063151814885	48	V0	False	not available	True	False	None	IP65	4	4	Nickel	A-coded

Product Description

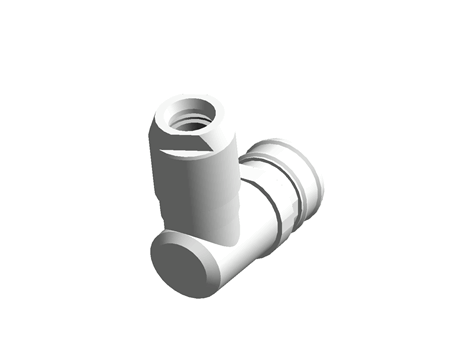

Connector, Universal, 4-position, shielded, Socket angled M12 Push-Pull, coding: A, Push-lock spring connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm

Documentation
