By Phoenix Contact

SACC-M12MS-5PL M MR

Connector

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Connector
Internal article number	1318946
GTIN (EAN) code	4063151959661
rated voltage	48
flammability rating of the insulating material (based on UL 94)	V0
PE connection present	False
certificate/approval	not available

shielded	False
Status display present	False
Areas of application for signal and data transmission	None
Degree of protection (IP), mounted	IP65
rated current	4
Pole number	5
Coding (head 1)	A-coded
Insertion cycles, min.	100

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	rated voltage	flammability rating of the insulating material (based on UL 94)	PE connection present	certificate/approval	shielded	Status display present	Areas of application for signal and data transmission	Degree of protection (IP), mounted	rated current	Pole number	Coding (head 1)	Insertion cycles, min.
1	1	1318946	Connector	4063151959661	48	V0	False	not available	False	False	None	IP65	4	5	A-coded	100

Product Description

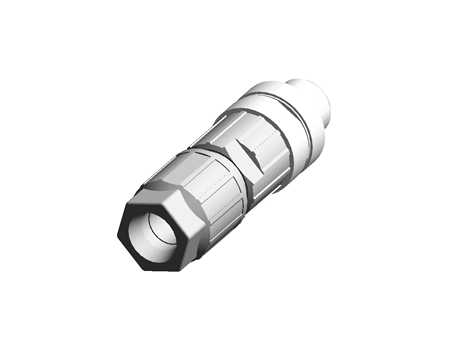

Connector, Universal, 5-position, unshielded, Plug straight M12, coding: A, knurl material: Zinc die-cast, nickel-plated
