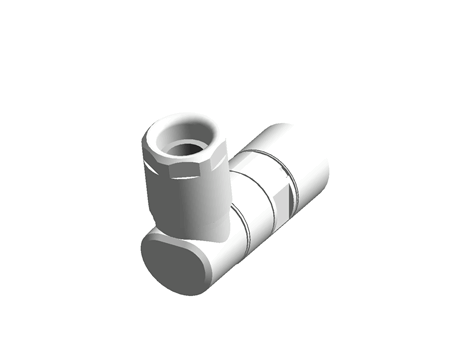

SACC-M12FRD-4CT-CM SH PN

Data connector

Manufacturer	Phoenix Contact
Manufacturer product designation	Data connector
product article number of manufacturer	1422849
GTIN	4055626357768
type of enveloping body	enveloping body cuboid
width	16
height	35.59262
depth	51.24101

number of the executions of the housing parts	0
mounting design	plug insert
net weight	0.036
certificate/approval	EAC
rated voltage	48
Min. operating temperature	-40
Max. operating temperature	85
Application standards	IEC 61076-2-101

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	type of enveloping body	width	height	depth	number of the executions of the housing parts	mounting design	net weight	certificate/approval	rated voltage	Min. operating temperature	Max. operating temperature	Application standards
1	1	1422849	Data connector	4055626357768	enveloping body cuboid	16	35.59262	51.24101	0	plug insert	0.036	EAC	48	-40	85	IEC 61076-2-101

Product Description

Data connector, PROFINET CAT5 (100 Mbps), 4-position, shielded, Socket angled M12, coding: D, Crimp connection, knurl material: Zinc die-cast, tin-plated, external cable diameter 4.5 mm ... 7.5 mm, without crimp contacts
