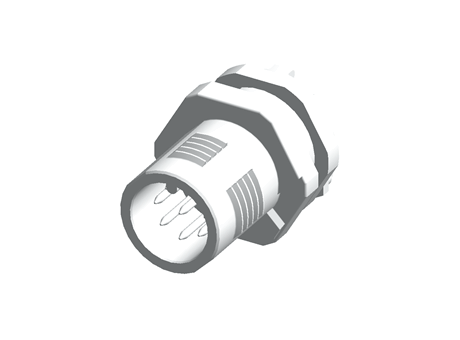

SACC-DSIV-MS-8CON-L180 SCO THRX

Device connector rear mounting

Manufacturer	Phoenix Contact
Manufacturer product designation	Device connector rear mounting
product article number of manufacturer	1239993
GTIN	4063151457747
flammability rating of the insulating material (based on UL 94)	V0
Pole number	8
material of housing	Polyamide (PA)

Coding (head 1)	A-coded
Material of the contact coat	Gold
Degree of soiling	3
shield connection present	False
Screw-in thread	M12
Connection on the inside	Soldered connection

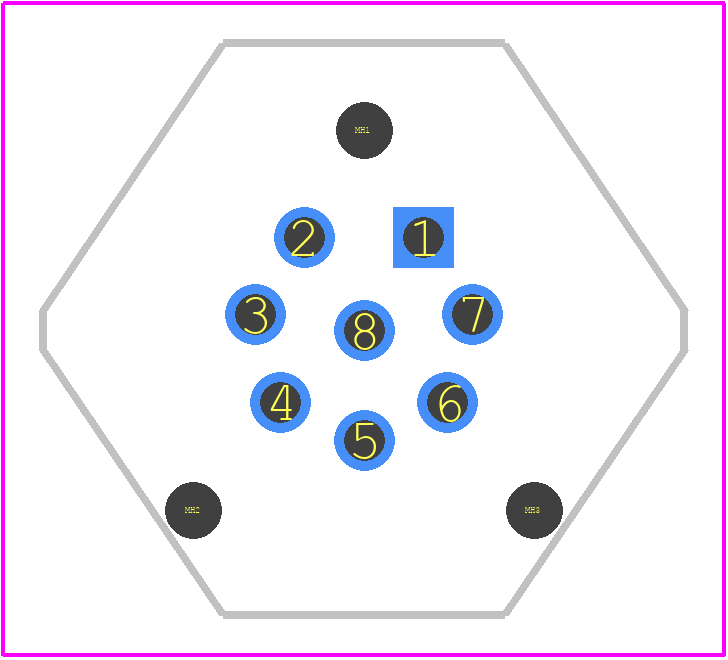

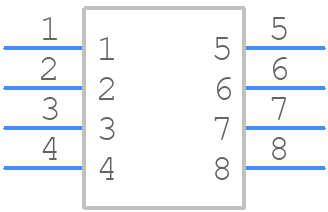

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	flammability rating of the insulating material (based on UL 94)	Pole number	material of housing	Coding (head 1)	Material of the contact coat	Degree of soiling	shield connection present	Screw-in thread	Connection on the inside
1	1	1239993	Device connector rear mounting	4063151457747	V0	8	Polyamide (PA)	A-coded	Gold	3	False	M12	Soldered connection

Product Description

Device connector rear mounting, 8-position, Pin, straight, M12-SPEEDCON, coding: A, Rear mounting, M12 x 1, THR solder connection, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
