SACC-DSIV-M12FS-8CON-L180

Device connector rear mounting

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Device connector rear mounting
product article number of manufacturer	1556854
GTIN	4046356184915
Min. operating temperature	-25
Max. operating temperature	85
flammability rating of the insulating material (based on UL 94)	HB

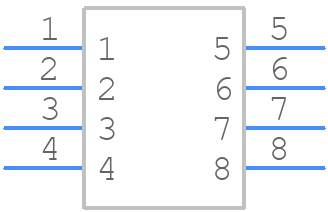

Pole number	8

rated current	2
Coding (head 1)	A-coded
Type of plug-in contact, outside	Female (socket)
Material of the contact coat	Gold
Degree of soiling	3
Construction form of the plug connector	M12
Insertion cycles, min.	100
shield connection present	False

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	Min. operating temperature	Max. operating temperature	flammability rating of the insulating material (based on UL 94)	Pole number	rated current	Coding (head 1)	Type of plug-in contact, outside	Material of the contact coat	Degree of soiling	Construction form of the plug connector	Insertion cycles, min.	shield connection present
1	1	1556854	Device connector rear mounting	4046356184915	-25	85	HB	8	2	A-coded	Female (socket)	Gold	3	M12	100	False

Product Description

Sensor/actuator flush-type socket, 8-pos., M12, A-coded, rear/screw mounting with M12 thread, with polarity protection, with straight solder connection
