SACC-DSI-MS-8CON-M12/0,5 SCO

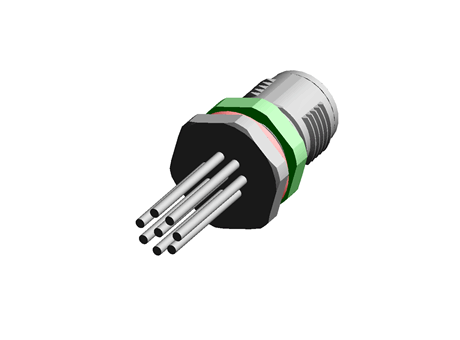

Device connector rear mounting

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Device connector rear mounting
Internal article number	1551914
GTIN (EAN) code	4046356161978
rated voltage	30
Application standards	according to IEC 61076-2-101
flammability rating of the insulating material (based on UL 94)	V0
PE connection present	False

certificate/approval	cULus Recognized, UL Recognized
Cross section of conductor	0.25
Degree of protection (IP), mounted	IP65/IP67
Cable length	0.5
rated current	2
Material of the contact coat	Au
Coding (head 1)	A-coded
Type of conductor	multi-wire

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	rated voltage	Application standards	flammability rating of the insulating material (based on UL 94)	PE connection present	certificate/approval	Cross section of conductor	Degree of protection (IP), mounted	Cable length	rated current	Material of the contact coat	Coding (head 1)	Type of conductor
1	1	1551914	Device connector rear mounting	4046356161978	30	according to IEC 61076-2-101	V0	False	cULus Recognized, UL Recognized	0.25	IP65/IP67	0.5	2	Au	A-coded	multi-wire

Product Description

Device connector rear mounting, Universal, 8-position, Pin, straight, M12-SPEEDCON, A-coding, on free cable end, Individual wires, cable length: 0.5 m, 0.25 mm², TPE litz wire, potted, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
