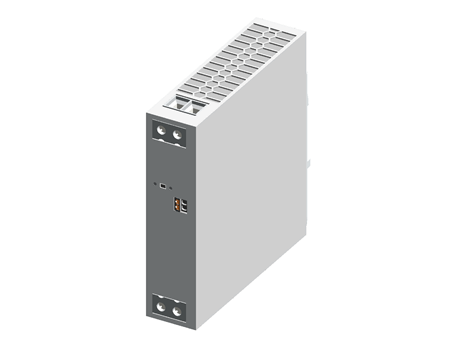

QUINT4-S-ORING/12-24DC/1X40/VP

Redundancy module, with protective coating

Manufacturer	Phoenix Contact
Manufacturer product designation	Redundancy module, with protective coating
product article number of manufacturer	1043418
GTIN	4055626607474
width	32
height	130
type of enveloping body	enveloping body cuboid
depth	131.74

number of the executions of the housing parts	0
net weight	0.56
Power loss, static, current-independent [Pls]	0.9
Assembly type	DIN track
Type of actuation	DC
LED display present	True
Design of electrical connection	Screw connection
min. rated control voltage Us with DC	8

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	width	height	type of enveloping body	depth	number of the executions of the housing parts	net weight	Power loss, static, current-independent [Pls]	Assembly type	Type of actuation	LED display present	Design of electrical connection	min. rated control voltage Us with DC
1	1	1043418	Redundancy module, with protective coating	4055626607474	32	130	enveloping body cuboid	131.74	0	0.56	0.9	DIN track	DC	True	Screw connection	8

Product Description

Active QUINT single redundancy module for DIN rail mounting, protective coating, input: 12 V DC ... 24 V DC, output: 12 V DC ... 24 V DC / 1 x 40 A, integrated surge protection <30 V DC, incl. mounted UTA 107/30 universal DIN rail adapter
