QTTCB 1,5-PV

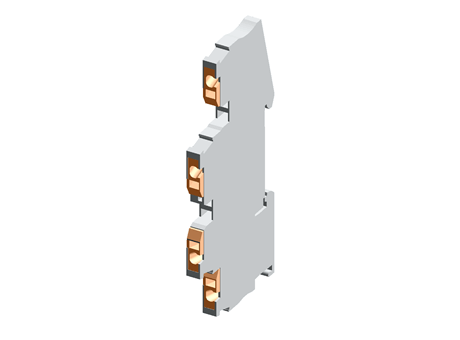

Double-level terminal block

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Double-level terminal block
Internal article number	3205153
GTIN (EAN) code	4017918932527
width	5.2
height	99.6
rated voltage	500
nominal cross section	1.5

depth	49.9
Closing plate required	True
Connection type (1)	Quick connection
Power loss per pole, current-dependent [PlIp]	0.56
Max. line cross section, flexible	1.5
Max. line cross section, rigid	1.5
Min. line cross section, flexible	0.25
Min. line cross section, rigid	0.25

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	rated voltage	nominal cross section	depth	Closing plate required	Connection type (1)	Power loss per pole, current-dependent [PlIp]	Max. line cross section, flexible	Max. line cross section, rigid	Min. line cross section, flexible	Min. line cross section, rigid
1	1	3205153	Double-level terminal block	4017918932527	5.2	99.6	500	1.5	49.9	True	Quick connection	0.56	1.5	1.5	0.25	0.25

Product Description

Double-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Quick connection, 1st and 2nd level, Rated cross section: 1.5 mm², cross section: 0.25 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
