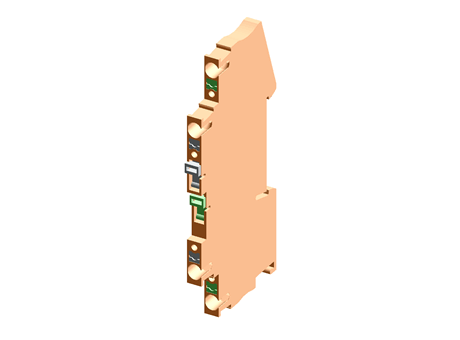

PTT 2,5-2MT OG

Knife-disconnect terminal block

Manufacturer	Phoenix Contact
Manufacturer product designation	Knife-disconnect terminal block
product article number of manufacturer	3210372
GTIN	4055626024394
width	5.2
height	92.4
type of enveloping body	enveloping body cuboid
depth	45.87638

number of the executions of the housing parts	0
mounting design	Assembly
net weight	0.01774
rated voltage	400
nominal cross section	2.5
flammability rating of the insulating material (based on UL 94)	V0
Max. line cross section, rigid	4
Min. line cross section, rigid	0.14

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	width	height	type of enveloping body	depth	number of the executions of the housing parts	mounting design	net weight	rated voltage	nominal cross section	flammability rating of the insulating material (based on UL 94)	Max. line cross section, rigid	Min. line cross section, rigid
1	1	3210372	Knife-disconnect terminal block	4055626024394	5.2	92.4	enveloping body cuboid	45.87638	0	Assembly	0.01774	400	2.5	V0	4	0.14

Product Description

Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 16 A, 1st and 2nd level, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: orange
