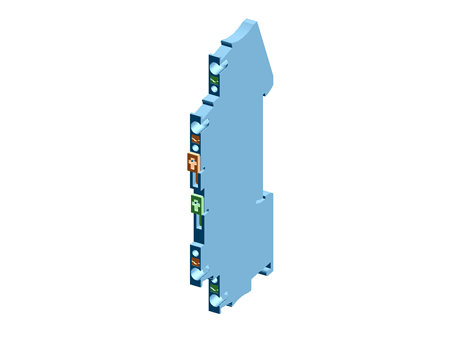

PTT 1,5/S-2MT BU

Knife-disconnect terminal block

Manufacturer	Phoenix Contact
Manufacturer product designation	Knife-disconnect terminal block
product article number of manufacturer	3210352
GTIN	4046356942027
width	3.5
height	86
type of enveloping body	enveloping body cuboid
depth	41.1

number of the executions of the housing parts	0
mounting design	Assembly
net weight	0.01004
rated voltage	400
nominal cross section	1.5
flammability rating of the insulating material (based on UL 94)	V0
Max. line cross section, rigid	1.5
Min. line cross section, rigid	0.14

CAD models

Request for quotation

Product selection

Index	Selector	product article number of manufacturer	Manufacturer product designation	GTIN	width	height	type of enveloping body	depth	number of the executions of the housing parts	mounting design	net weight	rated voltage	nominal cross section	flammability rating of the insulating material (based on UL 94)	Max. line cross section, rigid	Min. line cross section, rigid
1	1	3210352	Knife-disconnect terminal block	4046356942027	3.5	86	enveloping body cuboid	41.1	0	Assembly	0.01004	400	1.5	V0	1.5	0.14

Product Description

Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 9 A, 1st and 2nd level, connection method: Push-in connection, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 1.5 mm², mounting: NS 35/7,5, NS 35/15, color: blue
