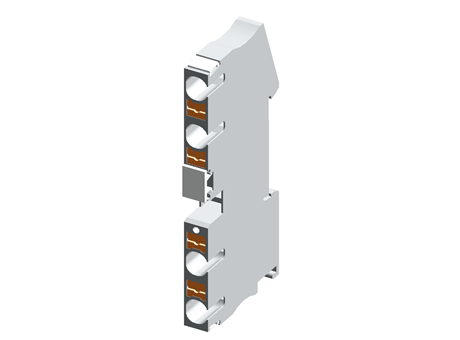

PT 6-QUATTRO-R-CLM

Multi-conductor terminal block

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Multi-conductor terminal block
Internal article number	1466071
GTIN (EAN) code	4063151860202
width	8.2
height	43.3
rated voltage	1000
nominal cross section	6

flammability rating of the insulating material (based on UL 94)	V0
Closing plate required	True
Connection type (1)	Push-in connection
Power loss per pole, current-dependent [PlIp]	1.31
Max. line cross section, flexible	10
Max. line cross section, rigid	10
Min. line cross section, flexible	0.5
Min. line cross section, rigid	0.5

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	rated voltage	nominal cross section	flammability rating of the insulating material (based on UL 94)	Closing plate required	Connection type (1)	Power loss per pole, current-dependent [PlIp]	Max. line cross section, flexible	Max. line cross section, rigid	Min. line cross section, flexible	Min. line cross section, rigid
1	1	1466071	Multi-conductor terminal block	4063151860202	8.2	43.3	1000	6	V0	True	Push-in connection	1.31	10	10	0.5	0.5

Product Description

Multi-conductor terminal block, nom. voltage: 1000 V, nominal current: 41 A, number of connections: 4, connection method: Push-in connection, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
