PT 16 N-PE-R-CLXM

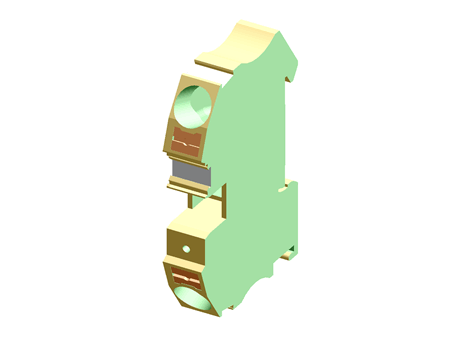

Protective conductor terminal block

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Protective conductor terminal block
Internal article number	3002552
GTIN (EAN) code	4055626386003
width	12.2
nominal cross section	16
flammability rating of the insulating material (based on UL 94)	V0
Closing plate required	True

Connection type (1)	Push-in connection
Power loss per pole, current-dependent [PlIp]	0
Max. line cross section, flexible	25
Max. line cross section, rigid	25
Min. line cross section, flexible	0.5
Min. line cross section, rigid	0.5
material of insulation	Polyamide (PA)
color	green-yellow

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	nominal cross section	flammability rating of the insulating material (based on UL 94)	Closing plate required	Connection type (1)	Power loss per pole, current-dependent [PlIp]	Max. line cross section, flexible	Max. line cross section, rigid	Min. line cross section, flexible	Min. line cross section, rigid	material of insulation	color
1	1	3002552	Protective conductor terminal block	4055626386003	12.2	16	V0	True	Push-in connection	0	25	25	0.5	0.5	Polyamide (PA)	green-yellow

Product Description

Protective conductor terminal block, number of connections: 2, connection method: Push-in connection, 1 level, Rated cross section: 16 mm², cross section: 0.5 mm² - 25 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow
