PT 10-TG

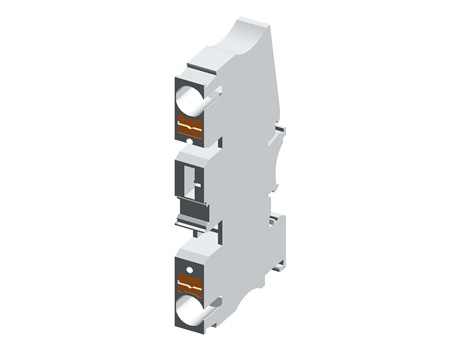

Disconnect terminal block

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Disconnect terminal block
Internal article number	1080201
GTIN (EAN) code	4055626801674
width	10.2
height	88.9
rated voltage	500
nominal cross section	10

depth	49.5
flammability rating of the insulating material (based on UL 94)	V0
Closing plate required	False
Connection type (1)	Push-in connection
Power loss per pole, current-dependent [PlIp]	1.82
Max. line cross section, flexible	16
Max. line cross section, rigid	16
Min. line cross section, flexible	0.5

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	rated voltage	nominal cross section	depth	flammability rating of the insulating material (based on UL 94)	Closing plate required	Connection type (1)	Power loss per pole, current-dependent [PlIp]	Max. line cross section, flexible	Max. line cross section, rigid	Min. line cross section, flexible
1	1	1080201	Disconnect terminal block	4055626801674	10.2	88.9	500	10	49.5	V0	False	Push-in connection	1.82	16	16	0.5

Product Description

Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 20 A, connection method: Push-in connection, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting: NS 35/7,5, NS 35/15, color: gray
