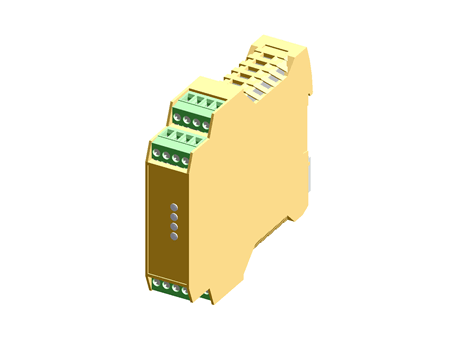

PSR-SCP- 24UC/ESA4/2X1/1X2

Safety relays

Manufacturer	PHOENIX CONTACT
Manufacturer product designation	Safety relays
Internal article number	2963750
GTIN (EAN) code	4017918823634
width	22.5
height	99
Power loss, static, current-independent [Pls]	16.44
depth	114.5

Performance level acc. to EN ISO 13849-1	e
safety integrity level (SIL)	SIL 3
Application standards	EN ISO 13849
Type of actuation	DC
detachable terminals present	True
Design of electrical connection	Screw connection
min. rated control voltage Us with DC	24
Max. rated DC voltage for controls	24

CAD models

Request for quotation

Product selection

Index	Selector	Internal article number	Manufacturer product designation	GTIN (EAN) code	width	height	Power loss, static, current-independent [Pls]	depth	Performance level acc. to EN ISO 13849-1	safety integrity level (SIL)	Application standards	Type of actuation	detachable terminals present	Design of electrical connection	min. rated control voltage Us with DC	Max. rated DC voltage for controls
1	1	2963750	Safety relays	4017918823634	22.5	99	16.44	114.5	e	SIL 3	EN ISO 13849	DC	True	Screw connection	24	24

Product Description

Safety relay for emergency stop and safety door monitoring up to SIL 3 or Cat. 4, PL e in accordance with EN ISO 13849, 2-channel operation, 2 enabling current paths, nominal input voltage: 24 V DC, plug-in screw terminal block

Documentation
